LNA
6000~6500MHz, Gain60dB, Noise figure2dB, P-1dB23dBm, SMA
- DLNA8-6000-6500-4221
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6000 | ~ | 6500 | MHz |
| Gain | 60 | dB | ||
| Gain flatness | 1 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 1.5 | |||
| P-1dB | 23 | dBm | ||
| Max input power | 10 | W |
Other parameters
| Connector | SMA-F Detachable Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Waterproof: IP65; Power supply connector SF812/P-2 |
供电接口定义
| No. | definition | Note |
| 1 | VD | +12V |
| 2 | GND | Ground |

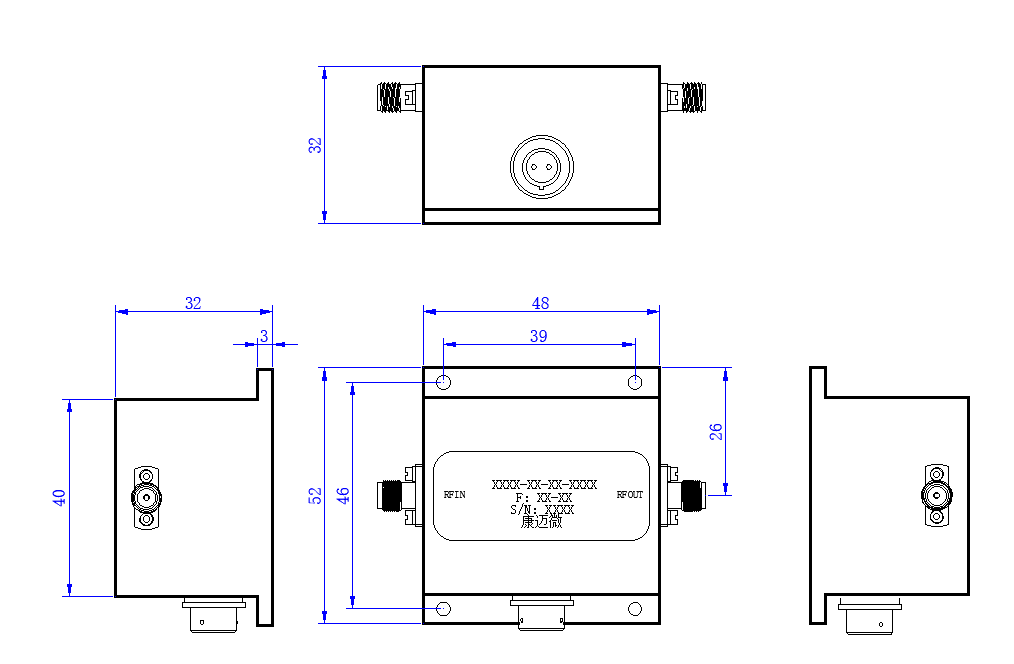

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
