LNA

0.005~300MHz, Gain55dB, Noise figure2.5dB, P-1dB15dBm, SMA-K

  • DLNA8-0.009-300-2553
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS

Main specifications

ParametersMinTypicalMaxUnits
Frequency0.005~300MHz
Gain55dB
Gain flatness2dB
Noise figure2.5dB
VSWR1.6
P-1dB15dBm
Maximum Input Power15dBm

Other parameters

ConnectorSMA-F Detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12~15V
Working current200mA
Operation Temp.-40~+70℃ Design assurance
OtherSSMA connector power supply, port detachable.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.

Typical test data

Frequency(MHz)S11 VSWRS22 VSWRS21 gainNoiseP-1dB
101.111.2955.682.5314.96
301.091.1956.212.2315.05
601.061.11572.0815.13
901.041.0957.412.1115.38
1201.031.0957.62.0615.5
1501.041.0857.632.0915.51
1801.021.0857.672.0515.56
2101.011.0757.642.0515.53
2401.011.0857.612.0715.55
2701.011.0857.492.0815.53
3001.011.0857.422.1115.65
3301.021.0857.262.1615.55
3601.031.0857.192.1715.48
3901.021.0957.132.1815.5
4201.041.0957.052.1415.55

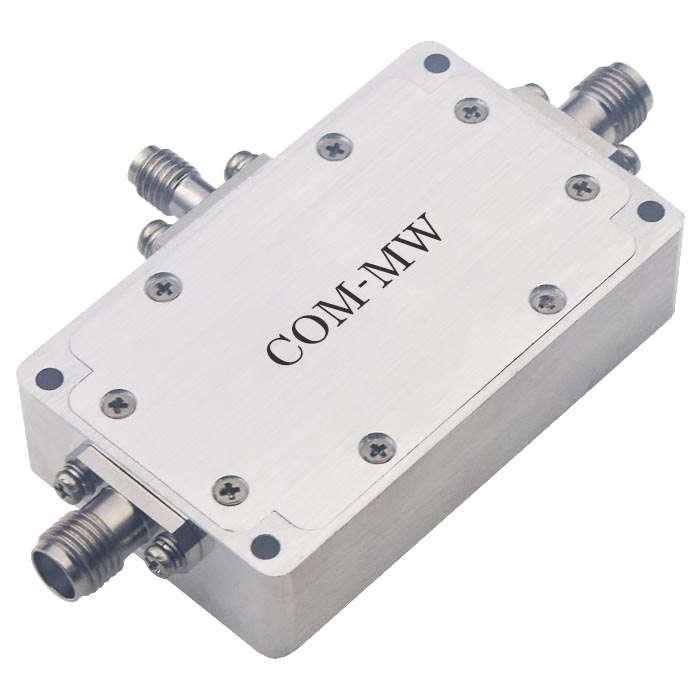

Reference picture

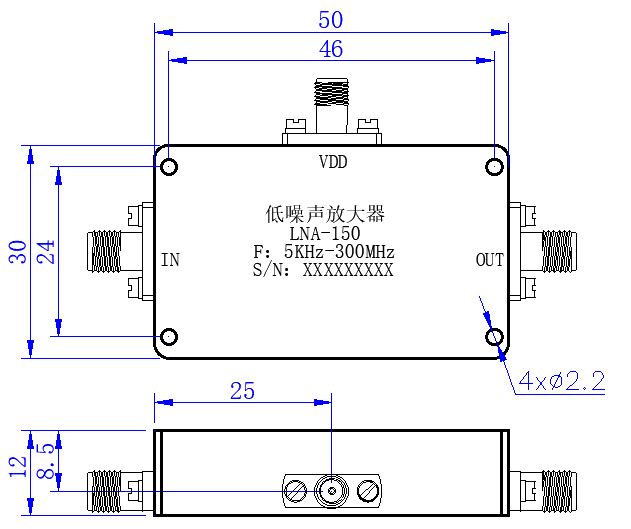

Configuration(mm)

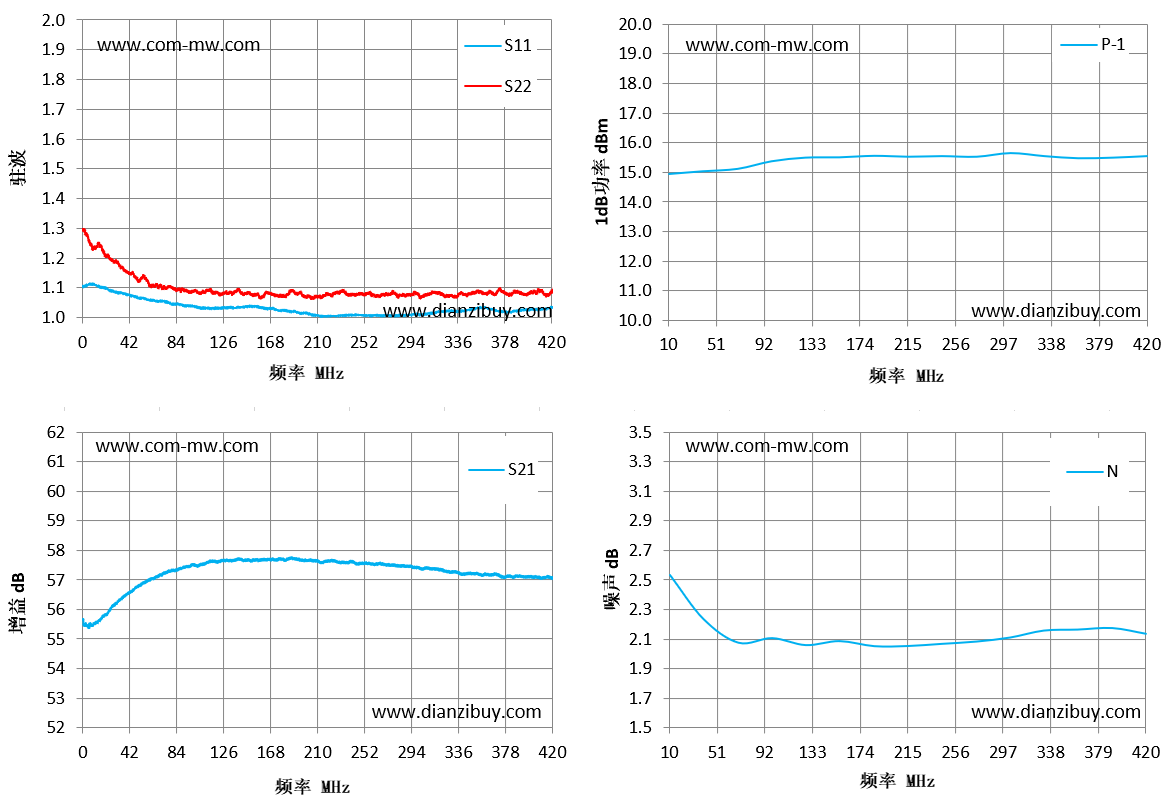

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
