LNA
30~18000MHz, Gain40dB, Noise figure2.7, P-1dB10dBm, SMA, N
- DLNA8-30-18G-3954
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 18000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| VSWR | 2.2 | |||
| Noise figure | 2.7 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 18 | dBm |
Other parameters
| Port form (IN) | SMA-K |
| Port form (OUT) | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Reverse isolation≥60dB; IP3≥18dBm |
Parts list
| Name | specifications | Note |
| AC Adapter | + 12V@2A Universal DC5.5 standard interfac | Length>6m |

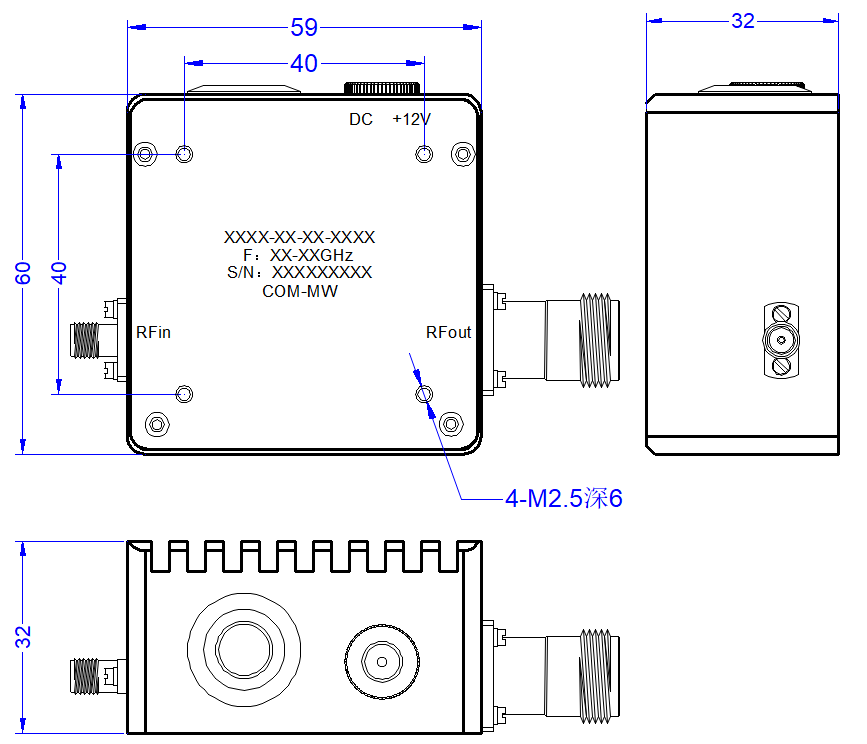

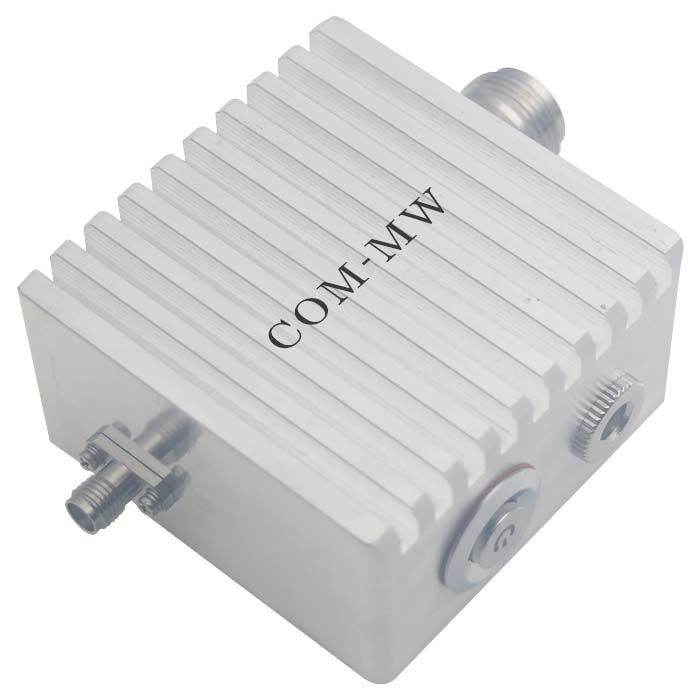

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
