LNA
950~2150MHz, Gain60dB, Noise figure2dB, P-1dB15dBm, SMA
- DLNA8-950-2150-17106
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 950 | ~ | 2150 | MHz |
| Gain | 60 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Attenuation | 60 | dB |
Other parameters
| Connector | SMA-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -40~+70℃ Design assurance |
J30J-9ZKP Pin Definition
| No. | definition | Note |
| 1 | VD | +12V power supply |
| 2 | GND | Ground |
| 8 | 485-A | Differential signal positive |
| 9 | 485-B | Differential signal negative |

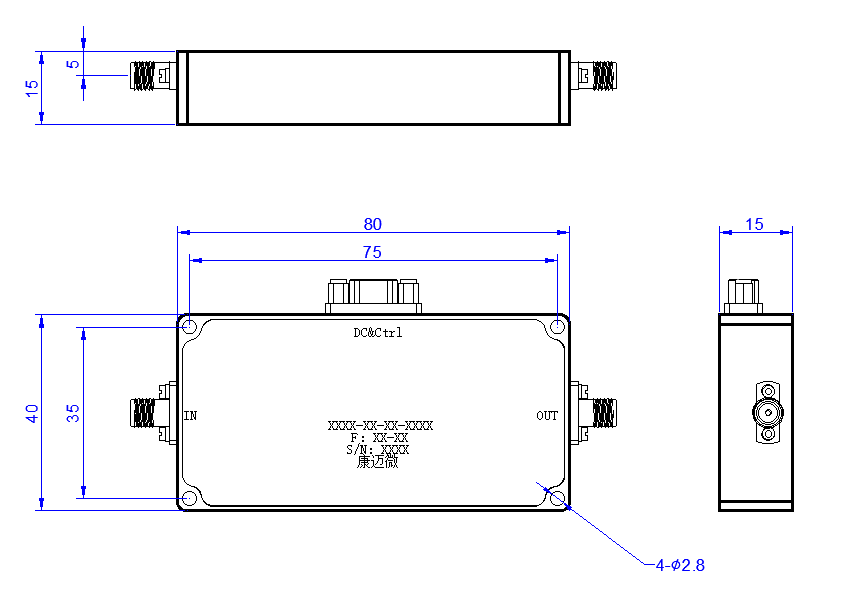

Configuration(mm)
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
