LNA
10~8000MHz, Gain40dB, Noise figure2.7dB@1GHz, P-1dB12dBm, N, N
- DLNA8-10-8000-9665
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 8000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 2.7 | dB@1GHz | ||
| VSWR | 2 | |||
| P-1dB | 12 | dBm | ||
| Clipping level | 16 | dBm |
Other parameters
| Input port | N -M or J |
| Output port | N -F or K |
| Connector material | Stainless steel |
| Power Capacity | 10W |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+60℃ Design assurance |
| ESD静电防护 | 具备 |
| 散热齿 | 具备 |
| Other | 噪声系数=输入信号信噪比/输出信号信噪比 |

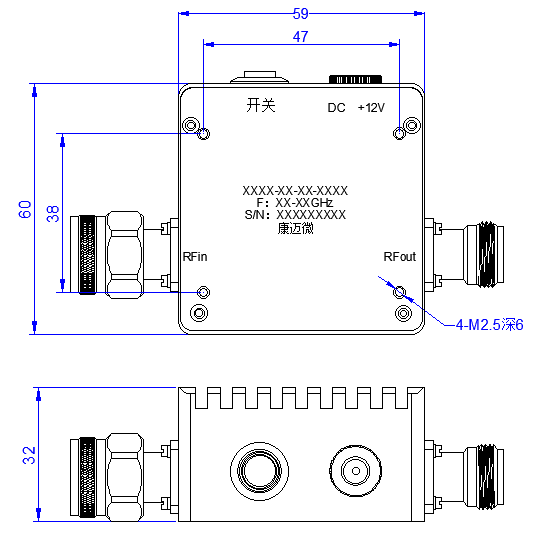

Configuration(mm)
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
