LNA
0.045~18000MHz, Gain25dB, 2.92
- DLNA12-0.045-18000-170
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.045 | ~ | 18000 | MHz |
| Gain | 25 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Pulse Repetition Frequency | 0.5 | 100 | ns | |
| pulse width | 0.5 | 10 | ns | |
| Output voltage | 5 | Vp-p |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |

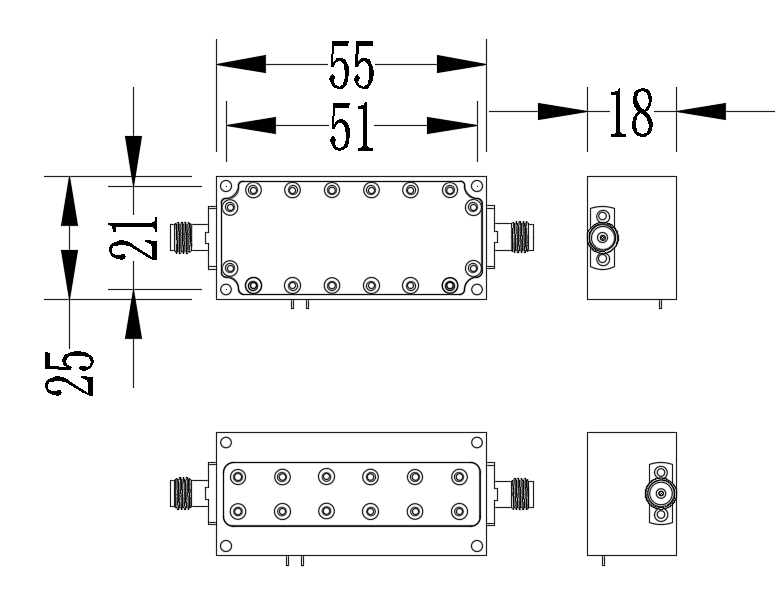

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
