LNA
50kHz~67GHz, Gain27dB, Noise figure8.5dB, P-1dB12dBm, 1.85
- DLNA8-1-67000M-9194
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 50kHz | ~ | 67 | GHz |
| Gain | 27 | dB | ||
| Noise figure | 8.5 | dB | ||
| VSWR | 2.4 | |||
| P-1dB | 12 | dBm | ||
| Psat | 16 | dBm |
Other parameters
| Connector | 1.85-F or K |
| Impedance | 50Ω |
| Working voltage | +8V |
| Working current | 400mA |
| Operation Temp. | -30~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1 dBm | S21 Psat dBm |
| 0.00005 | 2.55 | 4.86 | 22.24 | 17.25 | 18.17 |
| 0.001 | 1.11 | 1.61 | 31.22 | 15.59 | 18.04 |
| 0.1 | 1.09 | 1.37 | 33.57 | 16.08 | 19.37 |
| 0.5 | 1.09 | 1.56 | 30.52 | 14.90 | 18.40 |
| 1 | 1.08 | 1.54 | 30.61 | 15.20 | 18.54 |
| 4.5 | 1.27 | 1.39 | 28.49 | 14.96 | 18.37 |
| 8 | 1.09 | 1.74 | 29.47 | 15.52 | 18.89 |
| 11.5 | 1.31 | 1.60 | 30.27 | 16.48 | 19.57 |
| 15 | 1.38 | 1.32 | 31.58 | 16.26 | 19.57 |
| 18.5 | 1.52 | 2.13 | 30.25 | 15.73 | 19.03 |
| 22 | 1.40 | 1.57 | 29.97 | 15.60 | 19.09 |
| 25.5 | 1.11 | 1.44 | 28.05 | 15.26 | 18.59 |
| 29 | 1.39 | 2.43 | 28.36 | 14.50 | 17.97 |
| 32.5 | 1.28 | 1.55 | 29.17 | 15.30 | 18.54 |
| 36 | 1.53 | 1.16 | 30.45 | 13.84 | 18.30 |
| 39.5 | 1.81 | 2.43 | 29.64 | 12.77 | 18.30 |
| 43 | 1.39 | 2.18 | 29.39 | 13.09 | 18.90 |
| 46.5 | 1.13 | 1.76 | 26.29 | 13.33 | 17.80 |
| 50 | 1.31 | 2.57 | 30.90 | 14.36 | 17.90 |

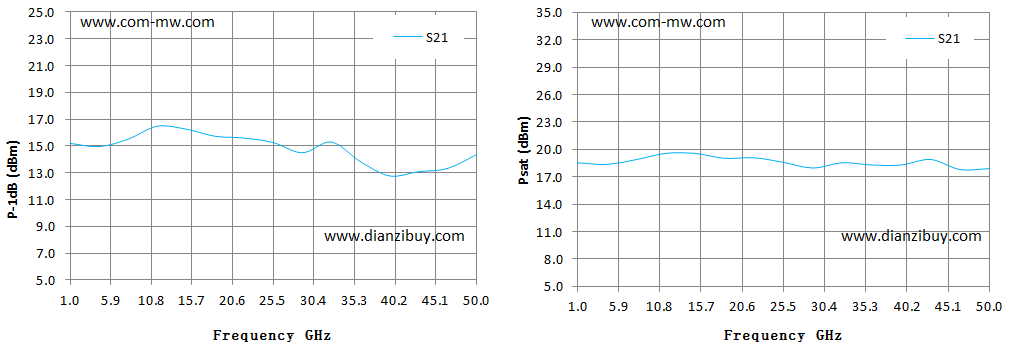

Typical test curve

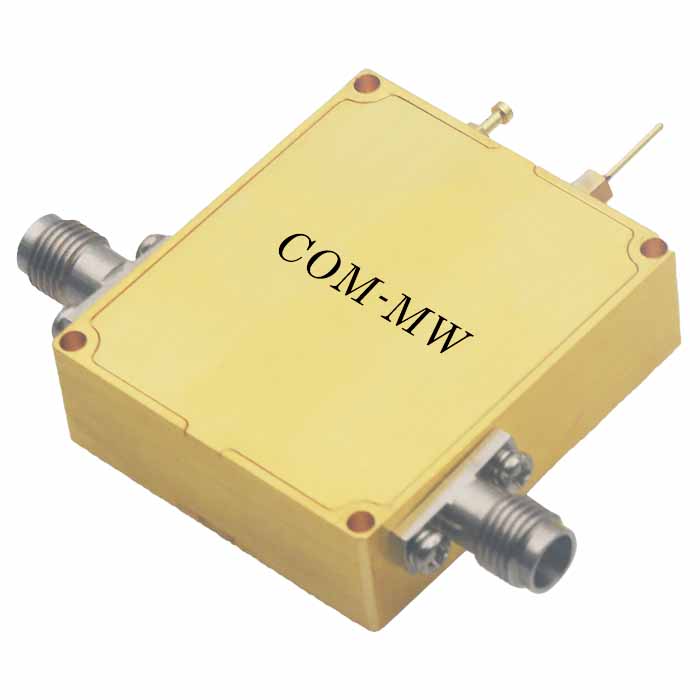

Reference picture

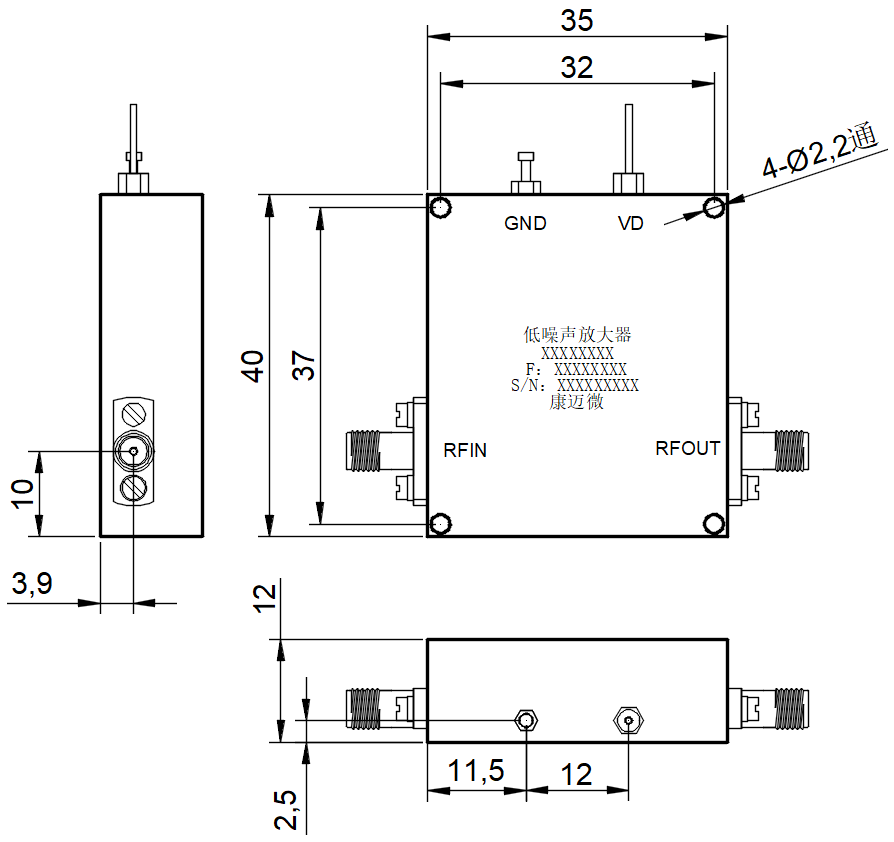

Configuration(mm)

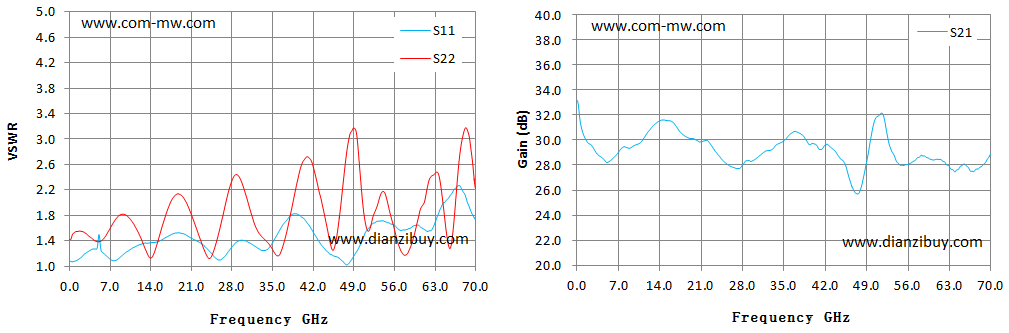

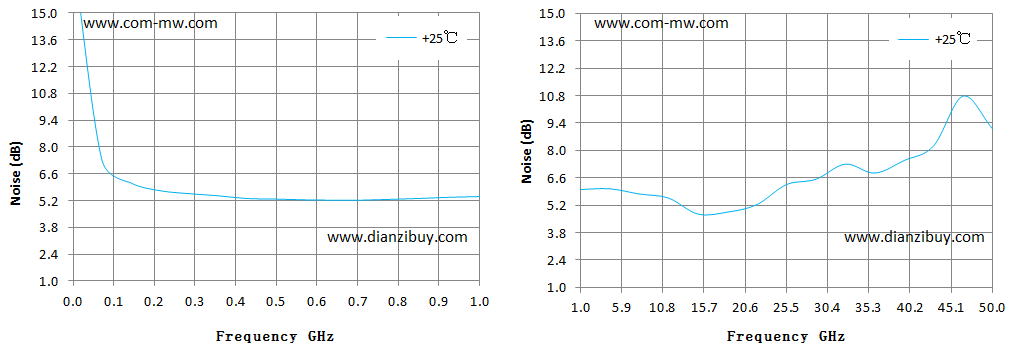

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
