LNA
100~3200MHz, Gain26dB, Noise figure1.7dB, P-1dB15dBm, SMA
- DLNA8-100-3200-2555
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 3200 | MHz |
| Gain | 26 | 28 | dB | |
| Gain flatness | 3 | dB | ||
| Noise figure | 1.7 | 2.2 | dB | |
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -20~+60℃ Design assurance |
| Storage Temp. | -20~+80℃ Design assurance |
| Other | SSMA Connector power supply |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 100 | 17.9 | 1.22 | 2 | 1.06 | 31 |
| 409 | 18.6 | 1.28 | 1.5 | 1.15 | 31.4 |
| 808 | 19.1 | 1.34 | 1.64 | 1.27 | 30.8 |
| 1207 | 18.6 | 1.29 | 1.74 | 1.24 | 30.3 |
| 1606 | 18.3 | 1.37 | 1.48 | 1.39 | 30.4 |
| 2005 | 17.6 | 1.47 | 1.47 | 1.38 | 30.1 |
| 2404 | 17.2 | 1.45 | 1.41 | 1.53 | 30 |
| 2803 | 16.1 | 1.44 | 1.41 | 1.31 | 30.2 |
| 3202 | 15.4 | 1.57 | 1.33 | 1.42 | 29.7 |

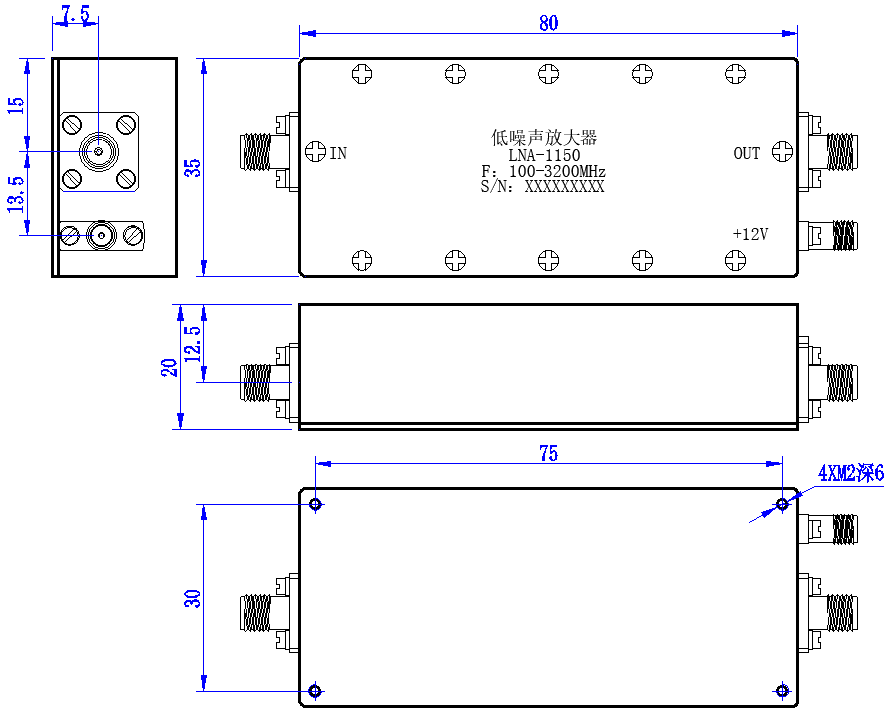

Configuration(mm)

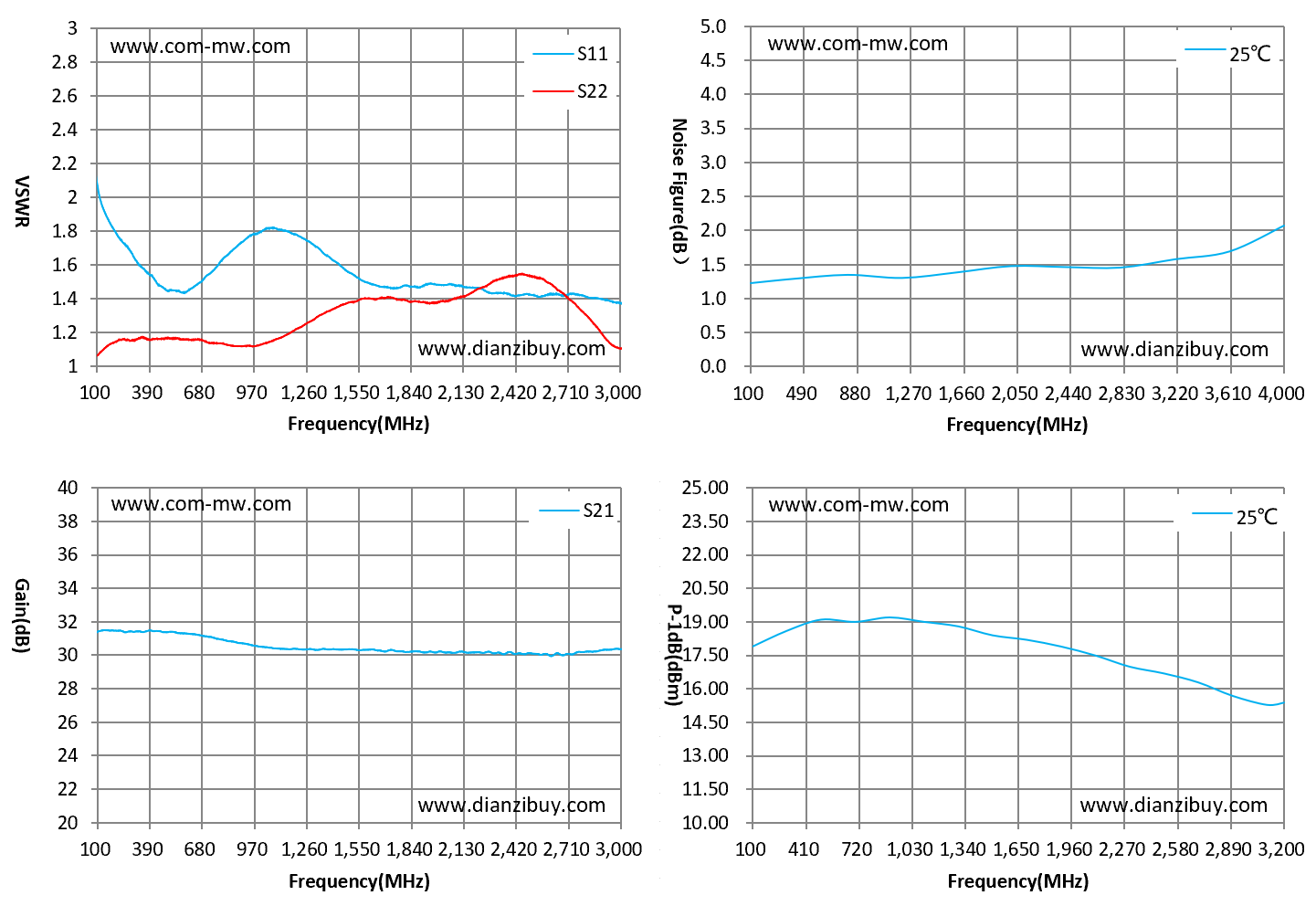

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
