LNA
100~3200MHz, Gain26dB, Noise figure1.7dB, P-1dB15dBm, SMA
- DLNA8-100-3200-1117
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 3200 | MHz |
| Gain | 26 | 28 | dB | |
| Gain flatness | 3 | dB | ||
| Noise figure | 1.7 | 2.2 | dB | |
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm | ||
| OIP3 | 25 | dBm | ||
| Reverse isolation | 49 | dB |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -20~+60℃ Design assurance |
| Storage Temp. | -20~+80℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 VSWR | S22 VSWR | Gain | NF | P-1 out | Psat |
| GHz | / | / | dB | dB | dBm | dBm |
| 0.05 | 3.05 | 1.63 | 28.58 | 1.86 | 17.4 | 20.3 |
| 0.1 | 1.82 | 1.27 | 30.28 | 1.09 | 18.3 | 20.5 |
| 0.33 | 1.45 | 1.38 | 30.21 | 1.08 | 18.93 | 20.9 |
| 0.61 | 1.35 | 1.32 | 30.16 | 1.32 | 19.3 | 20.6 |
| 0.9 | 1.59 | 1.3 | 29.85 | 1.43 | 19.01 | 20.4 |
| 1.18 | 1.66 | 1.39 | 29.9 | 1.25 | 18.6 | 20.5 |
| 1.46 | 1.51 | 1.45 | 30.16 | 1.38 | 18.24 | 20.6 |
| 1.74 | 1.42 | 1.36 | 30.36 | 1.49 | 17.84 | 20.1 |
| 2.03 | 1.43 | 1.28 | 30.49 | 1.75 | 17.5 | 20.5 |
| 2.31 | 1.32 | 1.36 | 30.5 | 1.73 | 16.6 | 19.5 |
| 2.59 | 1.27 | 1.36 | 30.07 | 1.73 | 16.07 | 19 |
| 2.87 | 1.33 | 1.25 | 29.7 | 1.85 | 15.23 | 18.2 |
| 3.15 | 1.48 | 1.04 | 29.86 | 2.18 | 14.64 | 17.9 |
| 3.44 | 1.62 | 1.24 | 29.28 | 2.17 | 14.56 | 17.7 |
| 3.72 | 1.72 | 1.39 | 27.39 | 2.29 | 14.2 | 17.4 |
| 4 | 2.28 | 1.32 | 25.61 | 2.69 | 13.3 | 16.6 |

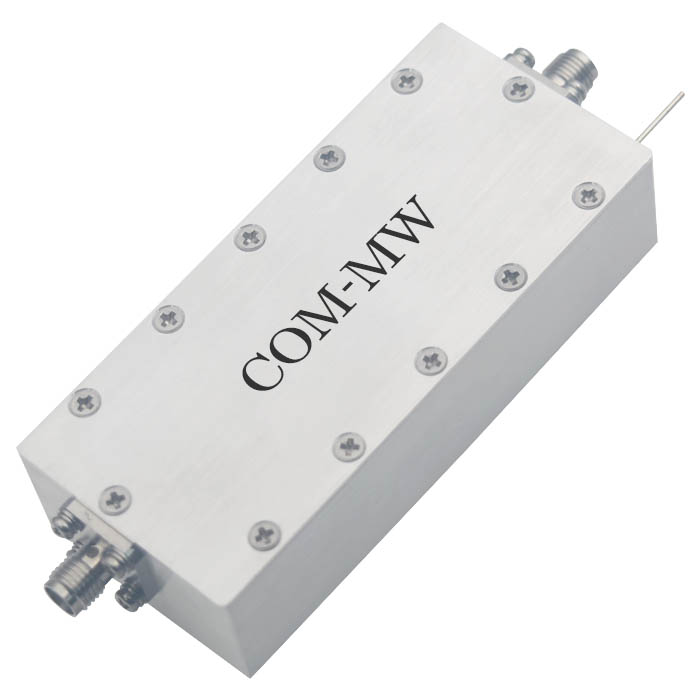

Reference picture

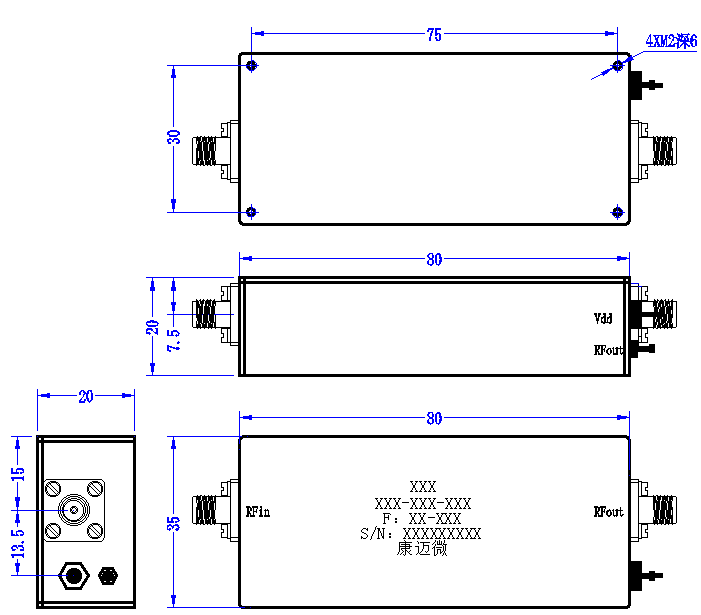

Configuration(mm)

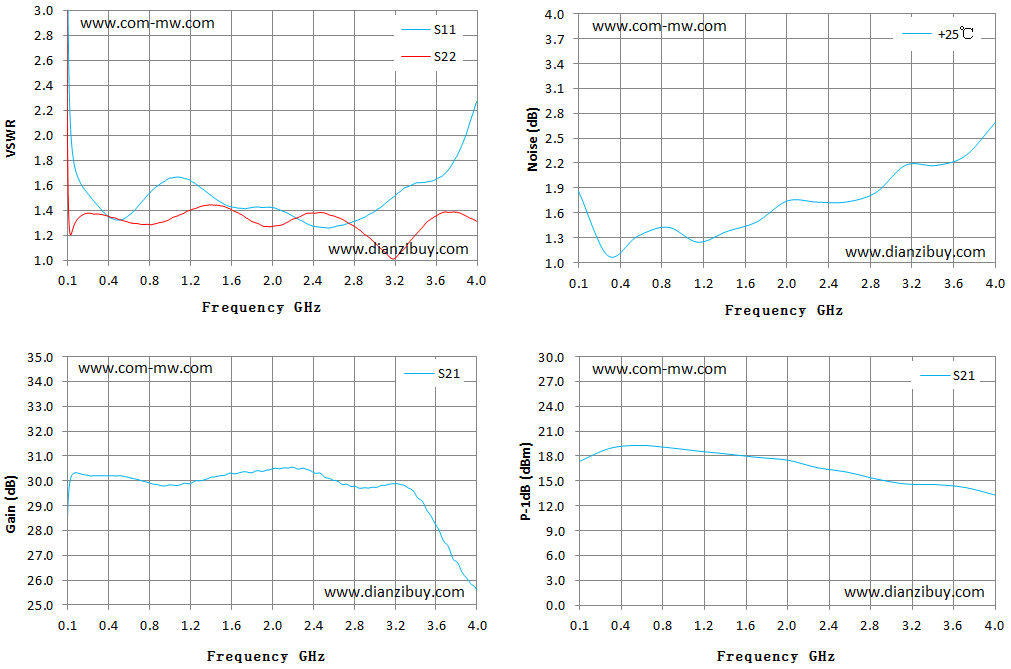

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
