Power amplifier
1~18GHz, Gain42dB, Psat30dBm, 2.92
- DPA8-1-18G-4059
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 42 | dB | ||
| Gain flatness | ±2 | ±2.5 | dB | |
| Input VSWR | 2 | |||
| Psat | 30 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 1200mA |
| Operation Temp. | -40~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | Gain | P-1 | Psat |
| GHz | VSWR | VSWR | dB | dBm | dBm |
| 0.5 | 1.67 | 5.22 | 41.82 | 24.93 | 30.4 |
| 1.89 | 1.09 | 1.26 | 50.16 | 29.85 | 35.24 |
| 3.29 | 1.09 | 1.06 | 50.55 | 30.23 | 35.5 |
| 4.68 | 1.43 | 1.14 | 49.75 | 29.95 | 34.9 |
| 6.07 | 1.62 | 1.07 | 49.7 | 29.8 | 35.2 |
| 7.46 | 1.62 | 1.3 | 48.86 | 30.4 | 34.24 |
| 8.86 | 1.31 | 1.38 | 48.37 | 30.1 | 33.8 |
| 10.25 | 1.04 | 1.37 | 48.52 | 30.9 | 35.5 |
| 11.64 | 1.23 | 1.52 | 48.27 | 31 | 34.55 |
| 13.04 | 1.48 | 1.32 | 47.4 | 31 | 33.8 |
| 14.43 | 1.63 | 2.11 | 47.23 | 29.8 | 32.63 |
| 15.82 | 1.56 | 1.61 | 48.14 | 30.5 | 32.95 |
| 17.21 | 1.14 | 1.52 | 48.6 | 30.12 | 33.24 |
| 18.61 | 1.71 | 1.47 | 45.59 | 29 | 30.3 |
| 20 | 2.82 | 1.4 | 38.47 | 25.2 | 26.1 |

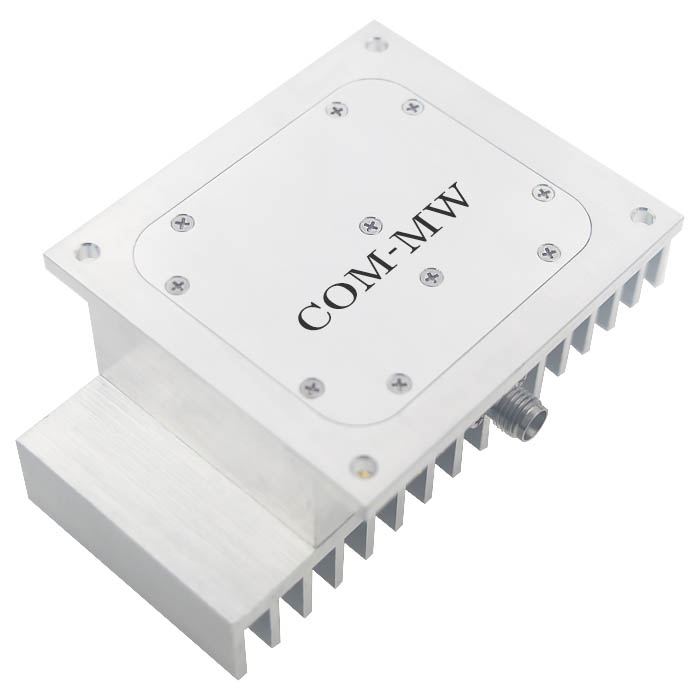

Reference picture

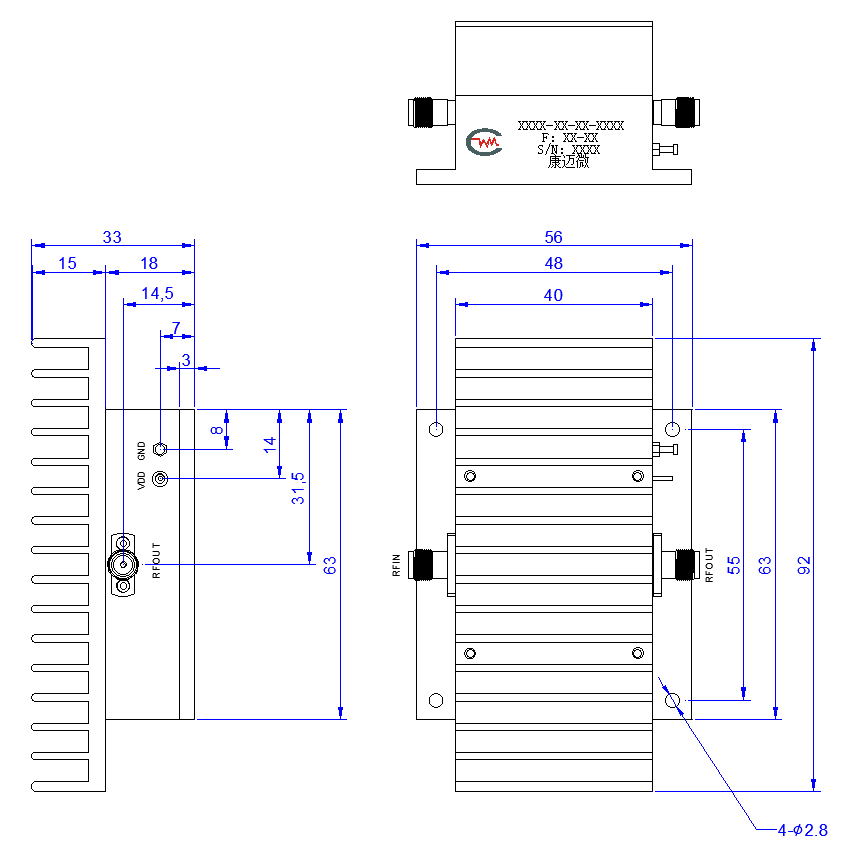

Configuration

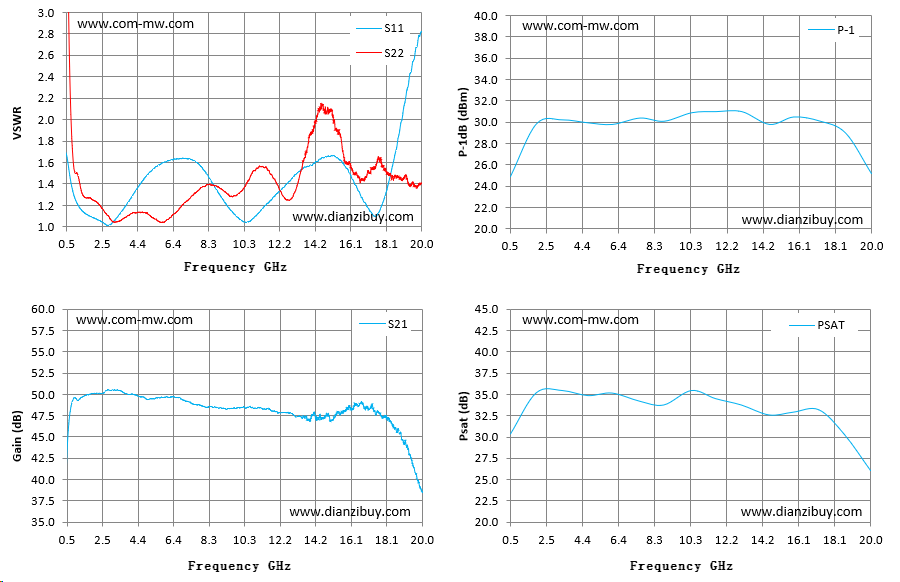

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
