Power amplifier

0.8~11GHz, Gain45dB, Psat33dBm, SMA

Model:DPA8-0.8-11G-3574
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.8	~	11	GHz
Gain	45			dB
Gain flatness		±2.5		dB
VSWR			2.5
Psat	33			dBm
Max input power			10	dBm

Other parameters

Connector	SMA-F Detachable
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+28V
Working current	1000mA
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	IDS@P-1	IDS@PSAT
GHz	VSWR	VSWR	dB	dBm	dBm	A	A
0.50	1.29	4.85	40.83	24.4	31.1	0.59	0.94
1.32	1.02	1.25	47.49	29.6	36.1	0.59	0.84
2.14	1.07	1.21	47.88	29.2	35.8	0.6	0.85
2.96	1.08	1.16	48.34	29.4	35.8	0.6	0.86
3.79	1.06	1.21	47.95	29.9	36.2	0.6	0.86
4.61	1.11	1.22	47.31	29.3	35.8	0.61	0.86
5.43	1.15	1.12	46.97	29.2	35.5	0.61	0.87
6.25	1.19	1.1	47.22	29.5	35.6	0.61	0.84
7.07	1.21	1.33	46.9	30	35.3	0.6	0.80
7.89	1.2	1.53	46.49	29.6	34.6	0.61	0.83
8.71	1.15	1.59	46.26	29.5	34.2	0.61	0.86
9.54	1.13	1.4	46.15	30.2	35	0.61	0.90
10.36	1.18	1.35	46.12	30.5	35.5	0.61	0.89
11.18	1.26	1.61	45.96	30.5	35.8	0.61	0.89
12.00	1.32	1.65	45.78	30.2	35.5	0.61	0.90

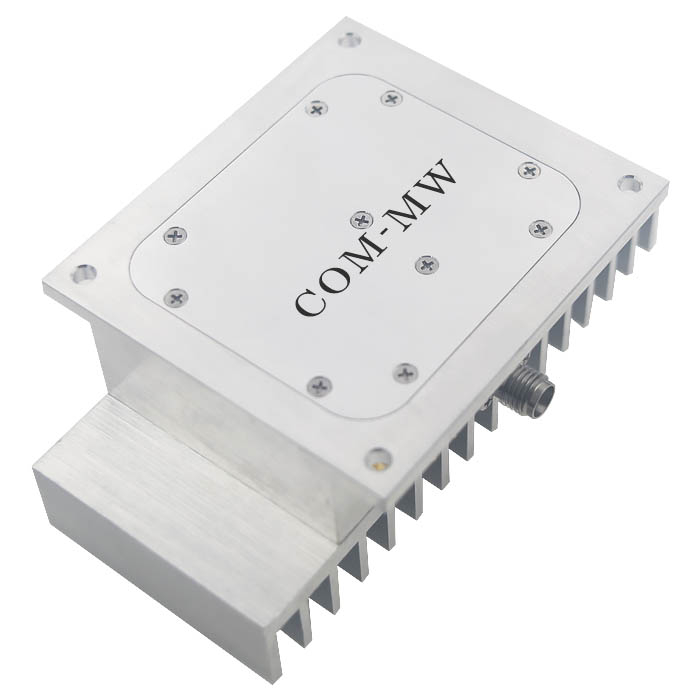

Reference picture

Configuration

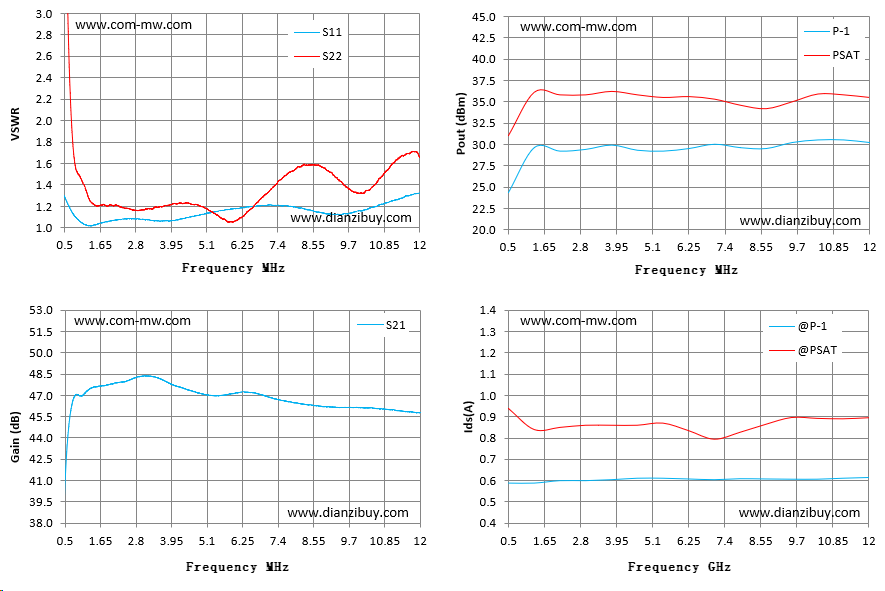

Typical test curve
