LNA
18~40GHz, Gain50dB, Noise figure4dB, P-1dB15dBm, 2.92
- DLNA8-18000-40000-1066
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3.5 | 4 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 15 | dBm |
Other parameters
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 P-1dB | 25 ℃ noise |
| 16 | 1.64 | 1.32 | 54.99 | 22.3 | 3.58 |
| 18 | 1.31 | 1.68 | 57.62 | 22 | 3.23 |
| 20 | 1.47 | 1.74 | 56.81 | 21.1 | 3.16 |
| 22 | 1.42 | 1.62 | 55.78 | 21.5 | 3.14 |
| 23 | 1.33 | 1.66 | 55.99 | 21.3 | 3.5 |
| 25 | 1.49 | 1.91 | 55.07 | 22.3 | 3.09 |
| 27 | 1.49 | 1.68 | 55.44 | 23.3 | 3.3 |
| 29 | 1.58 | 1.87 | 55.7 | 23.2 | 3.5 |
| 31 | 1.57 | 1.46 | 55.81 | 23.1 | 3.3 |
| 33 | 1.82 | 1.22 | 55.89 | 22.3 | 3.33 |
| 35 | 1.12 | 1.17 | 57.09 | 22 | 3.41 |
| 36 | 1.16 | 1.31 | 57.01 | 22.2 | 3.13 |
| 38 | 1.27 | 1.37 | 58.01 | 21 | 2.74 |
| 40 | 2.29 | 1.4 | 57.78 | 22.9 | 2.88 |
| 42 | 2.37 | 1.29 | 57.01 | 21.6 | 3.11 |
Reference picture
Configuration(mm)

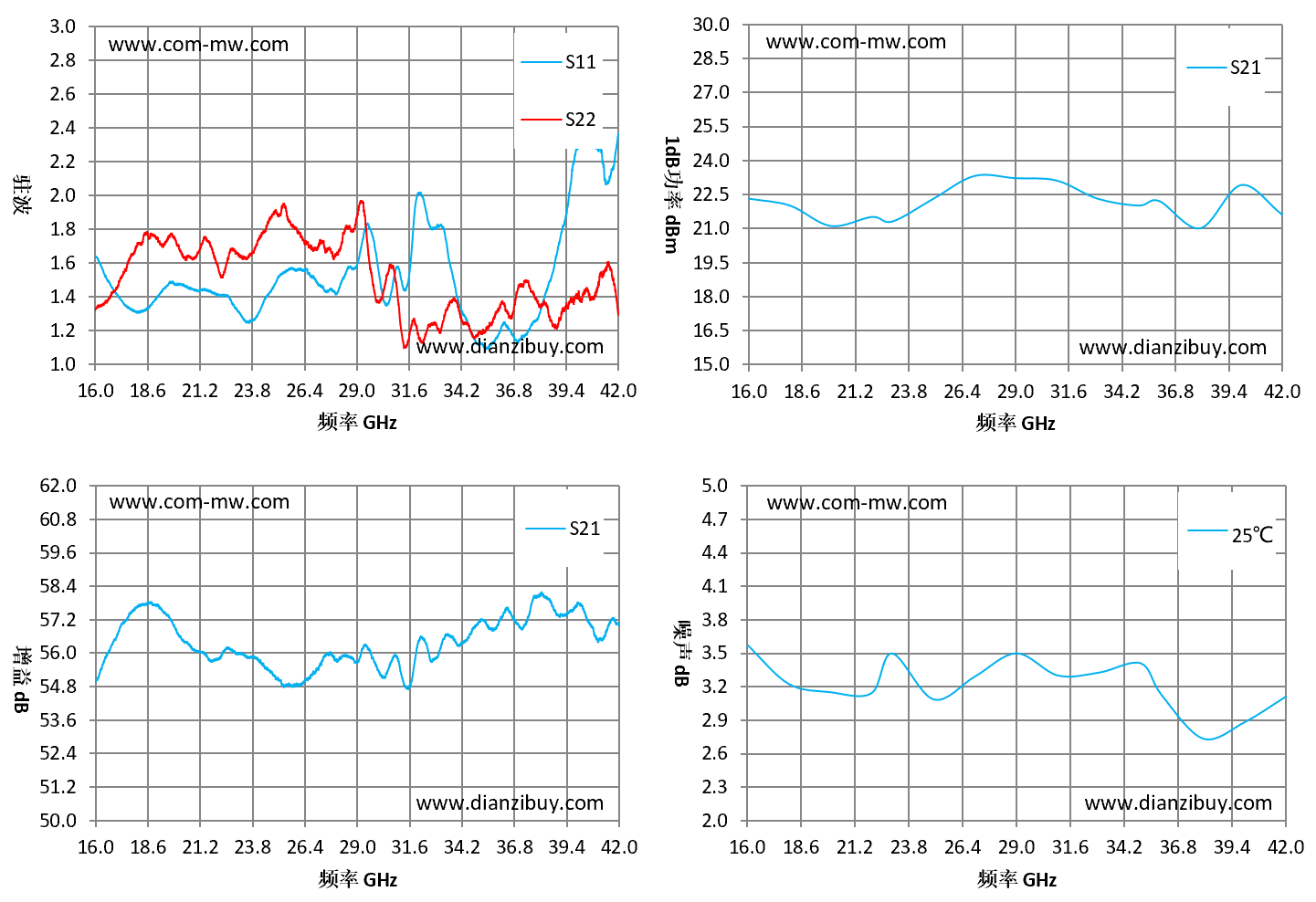

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
