Power amplifier
2.3~2.5GHz, Gain45dB, Output power46dBm, SMA, N
- DPA8-2.3-2.5G-4043
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 2.3 | ~ | 2.5 | GHz | |
| Gain | 45 | dB | Small-signal | ||
| Flatness in band | ±2 | ±4 | |||
| Output power | 46 | 49 | dBm | CW | |
| Efficiency | 22 | % | |||
| Harmonic Rejection | 36 | dBC | |||
| Spurious suppression | 65 | dBC | |||
| ACP | 62 | dBC |
Other parameters
| Input connector | SMA-K |
| Output port | N -K |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 12A |
| Module temperature during operation | -40~+65℃ Design assurance |
Typical test data
| F（GHz） | 2.26 | 2.3 | 2.34 | 2.38 | 2.42 | 2.46 | 2.5 | 2.54 |
| Pout（SAT）（dBm） | 48.89 | 48.78 | 48.54 | 48.25 | 48.16 | 47.62 | 46.95 | 46.48 |
| Pout（SAT）（W） | 77.44 | 75.50 | 71.44 | 66.83 | 65.46 | 57.80 | 49.54 | 44.46 |
| Ids（A） | 9.98 | 9.46 | 9.39 | 8.86 | 8.17 | 7.73 | 7.77 | 7.15 |
| Gain（dB） | 44.34 | 45.66 | 45.65 | 45.90 | 47.00 | 45.15 | 41.11 | 37.80 |
| ŋ（%） | 27.71 | 28.50 | 27.17 | 26.94 | 28.61 | 26.70 | 22.77 | 22.20 |
| 2nd harmonic rejection (dBc) | 61.90 | 58.20 | 57.30 | 63.80 | 65.00 | 59.00 | 53.80 | 52.20 |
| 3rd harmonic rejection (dBc) | 36.50 | 39.60 | 44.40 | 44.50 | 47.50 | 46.80 | 53.00 | 60.30 |
| 4th harmonic rejection (dBc) | 75.00 | 74.60 | 80.00 | 76.90 | 65.80 | 59.50 | 66.70 | 65.00 |
| Spurious suppression | 66.00 | 65.00 | 65.00 | 68.40 | 65.80 | 66.00 | 70.00 | 68.00 |
| ACP（dBc） | 62.00 | 62.60 | 62.70 | 63.90 | 65.00 | 64.30 | 65.00 | 64.20 |

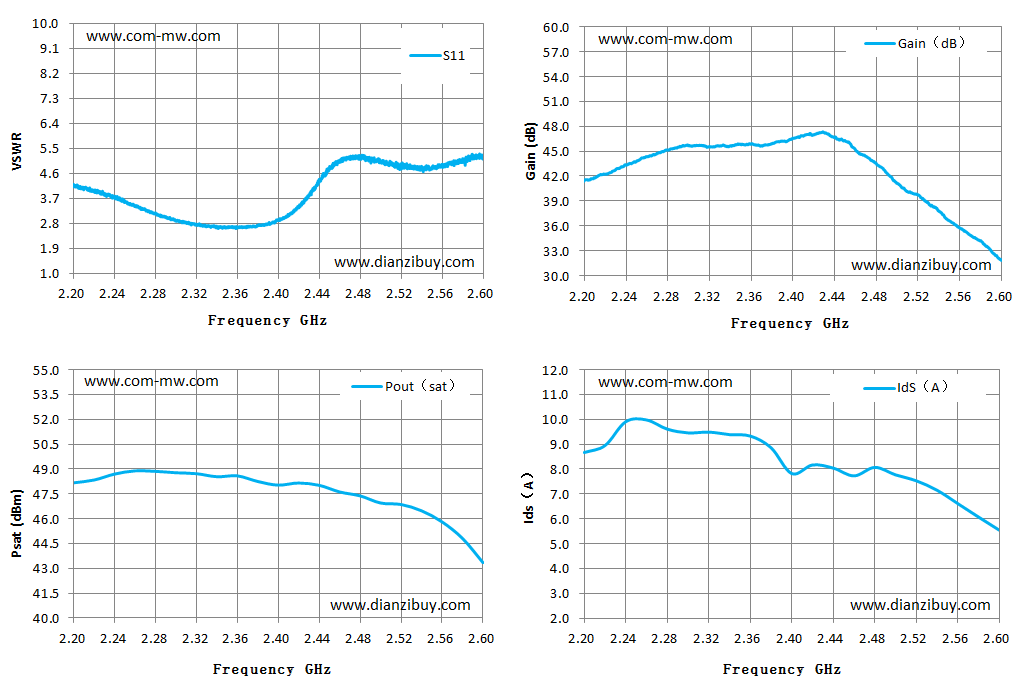

Typical test curve

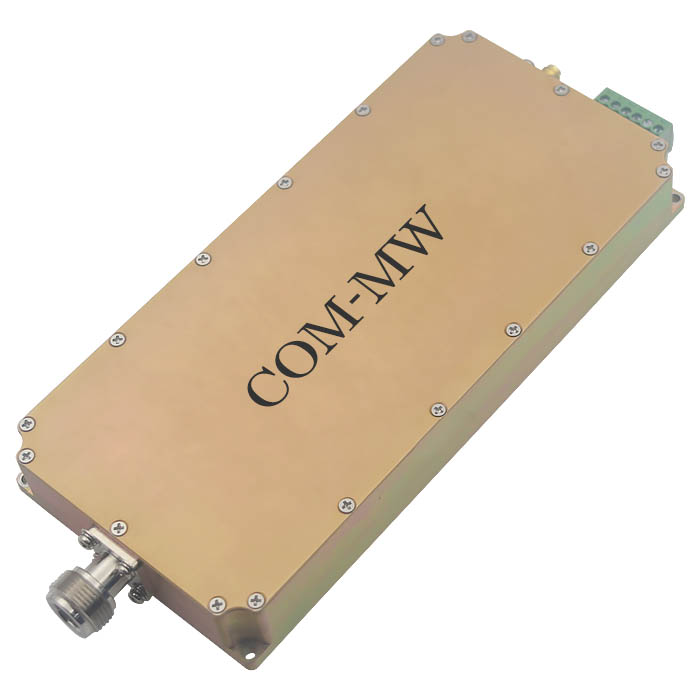

Reference picture

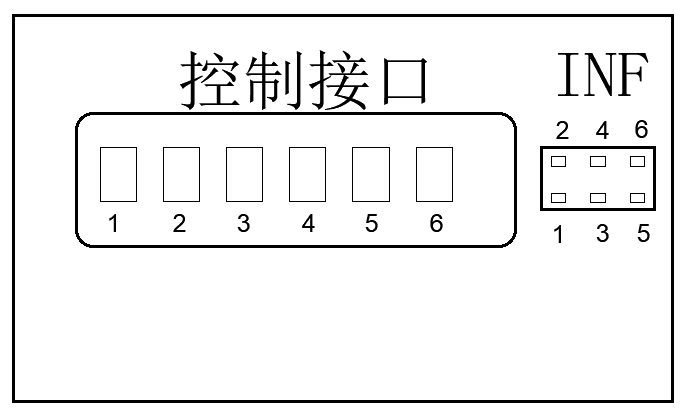

Port Definition
控制接口（3.5mm-6P，单排）
| No. | definition | Note |
| 1 | +28V | Suggest using multi-core copper wire with an area of 1-1.5 square millimeters |
| 2 | +28V | Must be connected to two power sources |
| 3 | GND | |
| 4 | GND | |
| 5 | EN | Enable, 0V=off; 5V=on; Do not connect, default off |
| 6 | NC |
INF（PHD2.0mm-6P）
| No. | definition | Note |
| 1 | 反射指示 | |
| 2 | 入射指示 | |
| 3 | NC | |
| 4 | Current indication | |
| 5 | Temperature indication | |
| 6 | GND |
Configuration
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
