Waveguide adapter
Frequency2.17~3.3GHz, Power Capacity500W, Rect waveguider, FDP26, N
- D25-BWC26NK-260
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2.17 | ~ | 3.3 | GHz |
| IL | 0.1 | dB | ||
| VSWR | 1.15 |
Other parameters
| Power Capacity | 500W Design assurance |
| Waveguide model | Rect waveguider |
| Connector 1 | FDP26 |
| Connector 2 | N-F |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S12 IL (dB) |
| 2.17 | 1.06 | -0.08 |
| 2.25 | 1.03 | -0.08 |
| 2.33 | 1.06 | -0.07 |
| 2.41 | 1.08 | -0.08 |
| 2.49 | 1.07 | -0.08 |
| 2.57 | 1.06 | -0.08 |
| 2.65 | 1.04 | -0.08 |
| 2.74 | 1.03 | -0.08 |
| 2.82 | 1.04 | -0.08 |
| 2.9 | 1.06 | -0.08 |
| 2.98 | 1.06 | -0.08 |
| 3.06 | 1.06 | -0.09 |
| 3.14 | 1.04 | -0.09 |
| 3.22 | 1.01 | -0.11 |
| 3.3 | 1.07 | -0.09 |

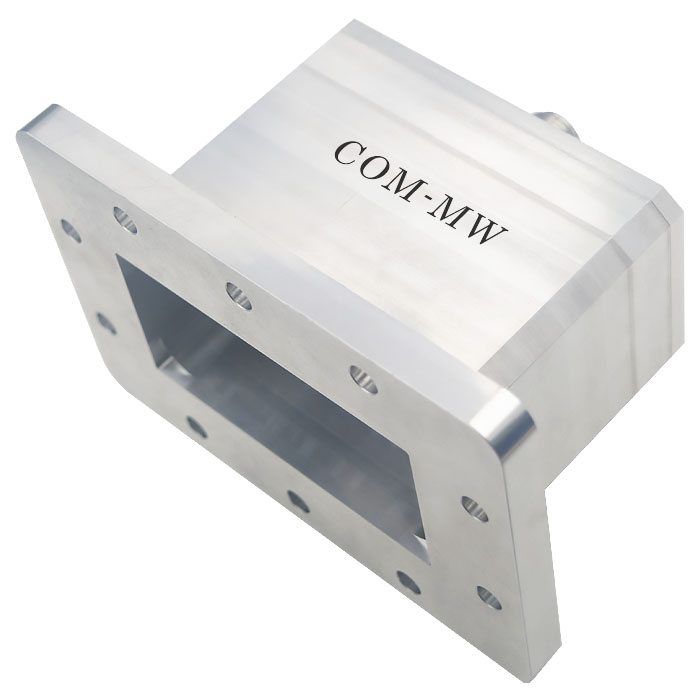

Reference picture

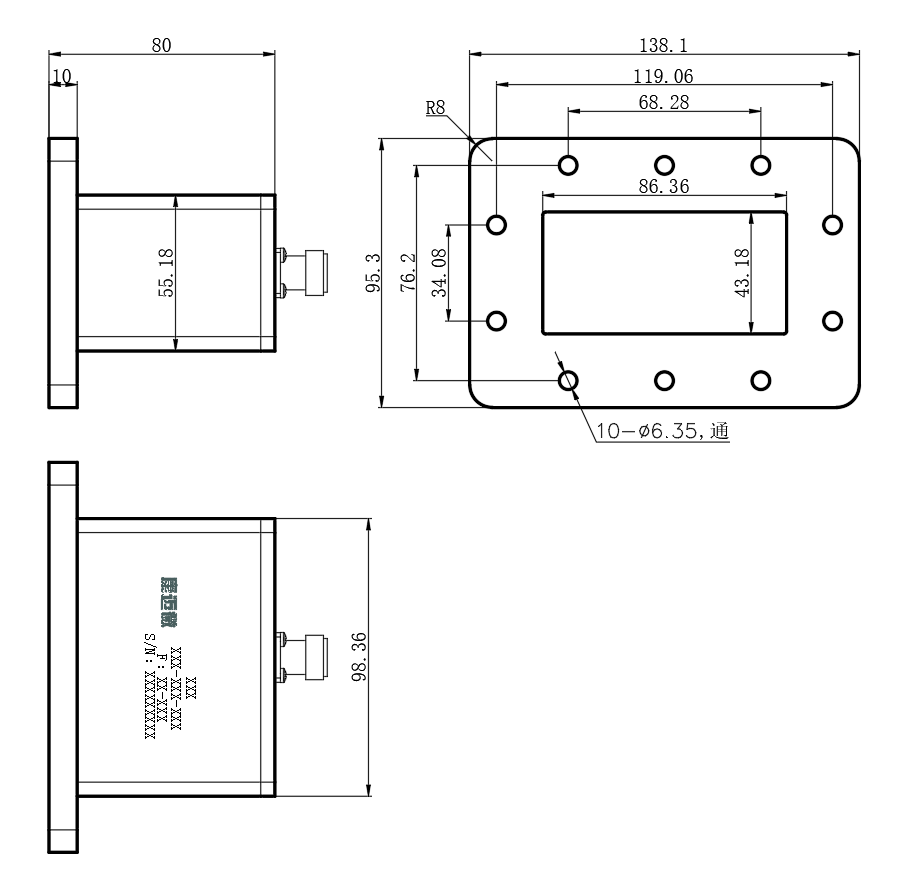

Configuration(mm)

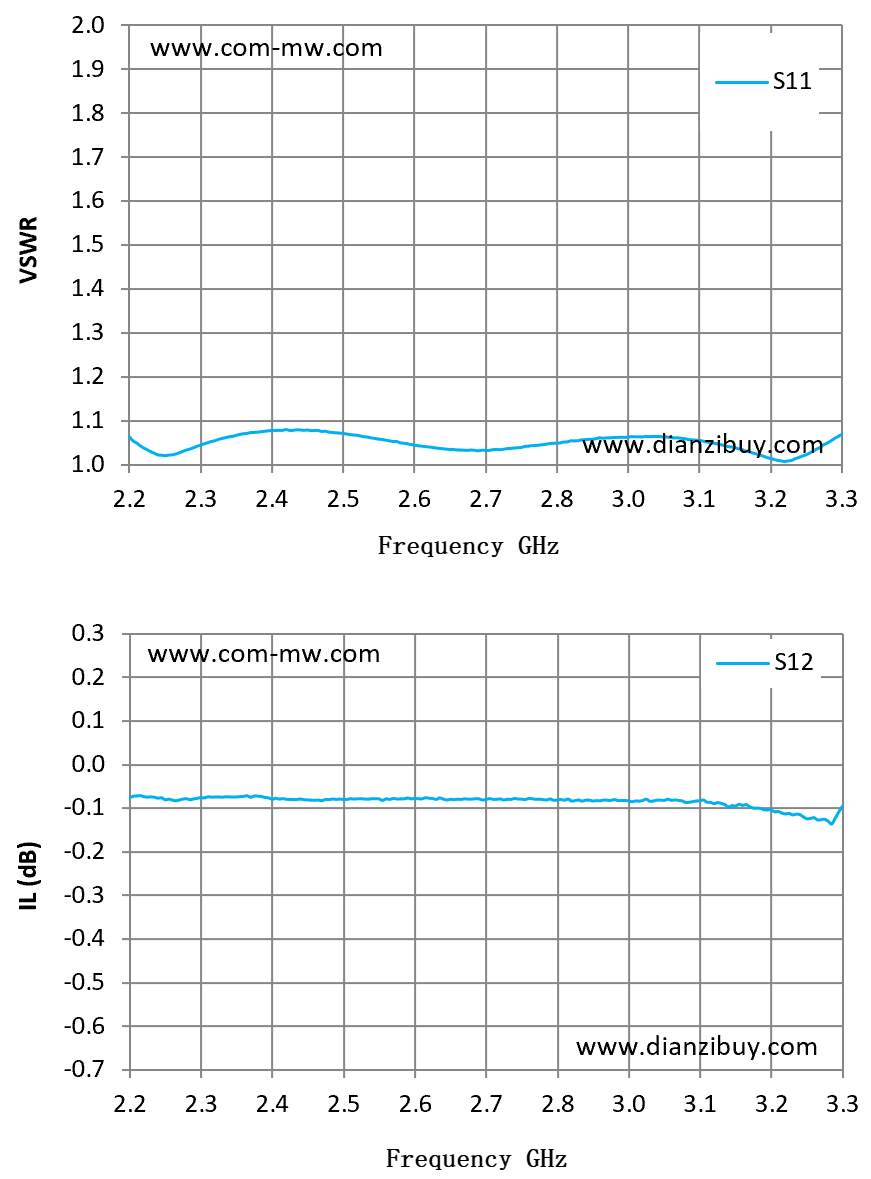

Typical test curve
