LNA

400~8500MHz, Gain30dB, Noise figure3dB, P-1dB14dBm, SMA

  • DLNA8-400-8500-3881
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, gain negative slope.

Main specifications

ParametersMinTypicalMaxUnits
Frequency400~8500MHz
Gain3043dB
Gain flatness≤5dBpk-pk follow gain slopedB
Noise figure3dB
VSWR2.2
P-1dB14dBm
OIP328dBm

Other parameters

ConnectorSMA
Working voltage+12V
Working current300mA
Reverse isolation70dB
Operation Temp.-30~+70℃ Design assurance
OtherMaximum input power: 10dBm; 400MHz gain ≥ 30, 8500MHz gain ≥ 43.

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 GainS21 NoiseS21 P-1dBS21 Psat dBm
0.11.471.3630.454.6717.419.1
0.811.151.530.952.7817.218.9
1.511.291.4732.052.781719.1
2.221.481.3833.612.5716.218.9
2.931.61.3335.362.5815.918.6
3.641.541.3337.162.3116.318.5
4.341.371.3238.532.2716.818.3
5.051.271.3439.22.2817.320.2
5.761.251.4739.952.417.720.6
6.461.121.7440.732.4317.720.1
7.171.431.8442.252.6417.819.5
7.881.831.843.652.6617.819.7
8.591.931.9143.612.8717.618.8
9.292.821.2941.933.4917.219.3
104.71.5239.243.3916.118.7

Reference picture

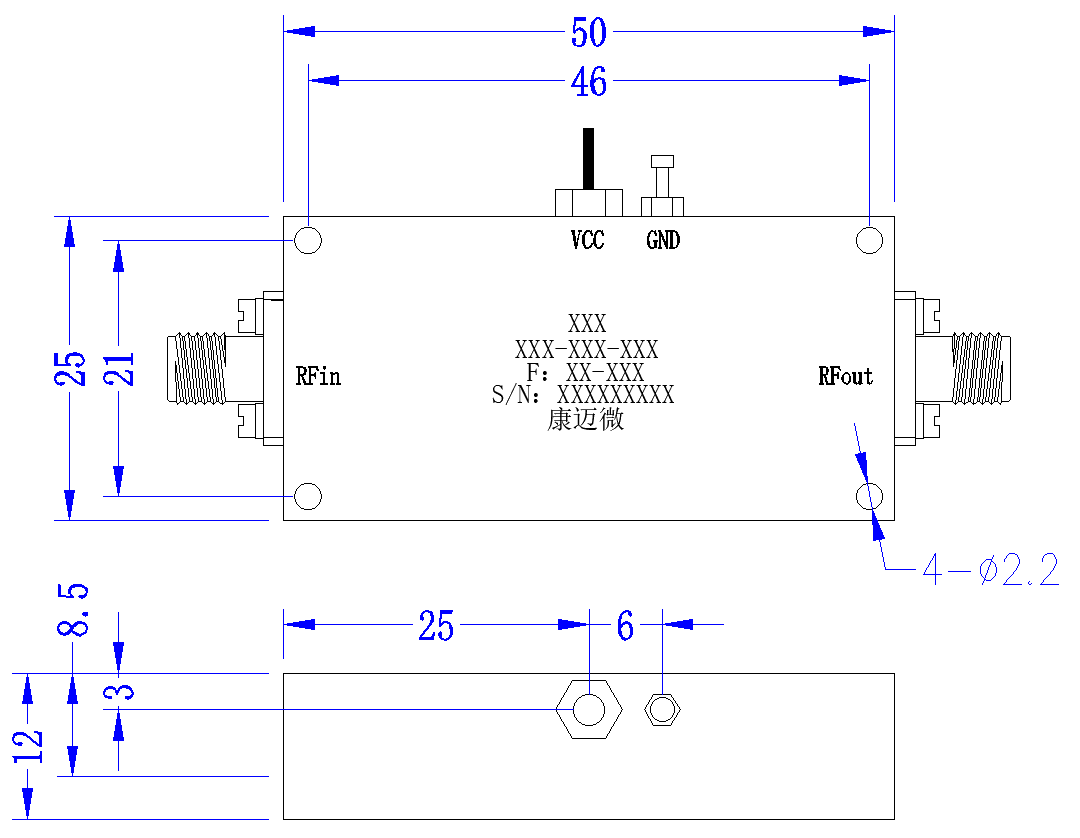

Configuration(mm)

Typical test curve

Testing mode

/

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
