LNA

30~6000MHz, Gain40dB, Noise figure2dB, P-1dB10dBm, SMA

Model:DLNA8-30-6000-3772
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	30	~	6000	MHz
Gain	40			dB
Gain flatness			±3	dB
Noise figure			2	dB
VSWR			2.5
P-1dB	10			dBm
Spur reduction		70		dBm
Harmonic Rejection		15		dBm
OIP3		22		dBm

Other parameters

Connector	SMA-F
Connector material	Stainless steel
Impedance	50Ω
Working voltage	+12V
Working current	300mA
Reverse isolation	≥65dB
Operation Temp.	-40~+60℃ Design assurance

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	Noise
GHz	VSWR	VSWR	dB	dBm	dBm	dB
0.01	2.23	1.30	40.52	16.2	18.9	1.22
0.58	1.32	1.37	41.71	17.3	20.6	1.23
1.15	1.25	1.24	41.82	16.8	19.3	1.31
1.72	1.15	1.16	41.74	16.3	19.2	1.28
2.29	1.11	1.14	41.94	15.9	18.7	1.37
2.86	1.47	1.20	41.87	15.9	18.3	1.40
3.43	1.77	1.26	41.82	15.8	18.8	1.39
4.01	1.71	1.35	41.24	16	17.9	1.52
4.58	1.36	1.36	41.32	15.9	18.2	1.30
5.15	1.31	1.21	41.54	15.7	19	1.31
5.72	1.58	1.21	41.71	15.7	19.1	1.52
6.29	1.41	1.38	42.63	15.8	18.2	1.58
6.86	1.20	1.28	41.39	15.9	18.2	1.53
7.43	1.34	1.70	40.02	15.7	18.3	1.44
8.00	1.75	2.13	39.14	15.4	17.7	1.55

Reference picture

Configuration(mm)

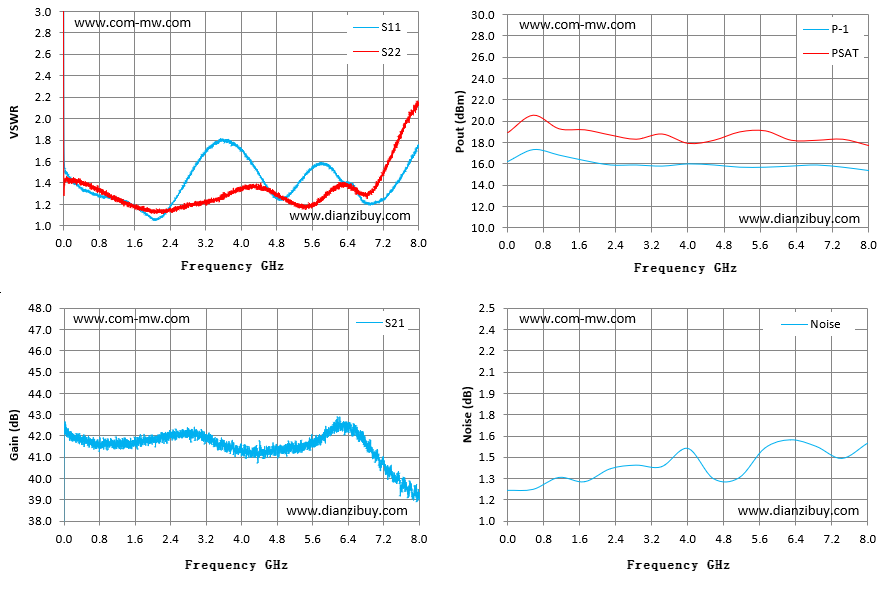

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
