Power amplifier
2~6GHz, Gain48dB, Output power30W, Output portN-F
- DPA8-2-6G-9186
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
宽带功率放大器
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 2 | ~ | 6 | GHz | |
| Gain | 48 | dB | Small signal gain | ||
| Flatness in band | ±6 | dB | |||
| Input VSWR | 2 | 2.4 | |||
| Output power | 30 | W | CW | ||
| Efficiency | 20 | % | |||
| Harmonic Rejection | 10 | dBc | |||
| Spur reduction | 65 | dBC | F0±300k | ||
| ACP | 55 | dBC |
Other parameters
| Input connector | SMA-F |
| Output port | N -F |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 8A |
| Working temperature | -40~+65℃ Design assurance |
Typical test data
| F（GHz） | 2 | 2.6 | 3.2 | 3.8 | 4.4 | 5 | 5.6 | 6 |
| Pout（SAT）（dBm） | 45.79 | 45.52 | 44.91 | 46.80 | 46.17 | 45.79 | 45.31 | 45.24 |
| Pout（SAT）（W） | 37.93 | 35.64 | 30.97 | 47.86 | 41.39 | 37.93 | 33.96 | 33.41 |
| Ids（A） | 4.93 | 6.07 | 4.55 | 6.92 | 5.49 | 5.96 | 5.63 | 5.91 |
| Gain（dB） | 55.13 | 53.64 | 54.00 | 49.45 | 46.48 | 50.98 | 49.85 | 43.65 |
| ŋ（%） | 27.47 | 20.97 | 24.31 | 24.70 | 26.93 | 22.72 | 21.54 | 20.19 |
| 2nd harmonic rejection (dBc) | 16.10 | 25.40 | 23.20 | 29.50 | 38.60 | 53.70 | 49.90 | 54.20 |
| 3rd harmonic rejection (dBc) | 43.00 | 47.80 | 54.50 | 45.60 | 78.00 | 65.60 | 59.00 | 49.30 |
| 4th harmonic rejection (dBc) | 40.00 | 54.30 | 82.00 | 80.60 | 67.40 | 74.00 | 79.00 | 79.00 |
| 杂散抑制（dBC） | 73.80 | 75.20 | 72.10 | 73.20 | 72.10 | 74.20 | 75.10 | 74.60 |
| ACP（dBc） | 63.00 | 63.20 | 60.90 | 58.00 | 57.60 | 60.10 | 55.00 | 54.10 |

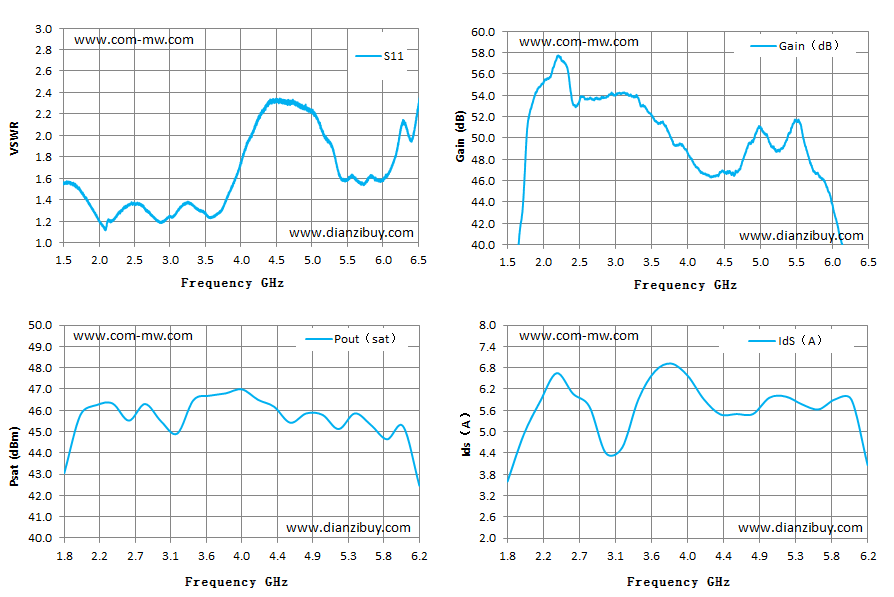

Typical test curve

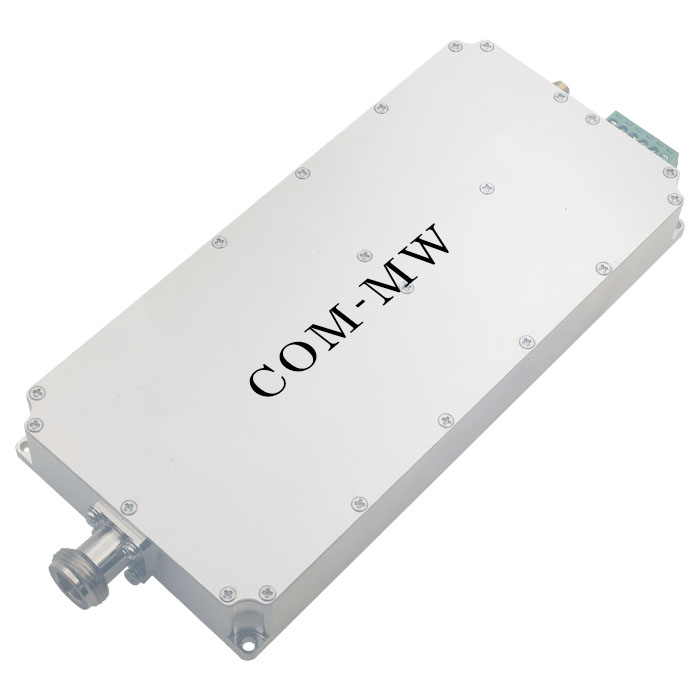

Reference picture
Configuration
接口定义（3.5mm-6p）
| No. | Name | Note |
| 1 | 28V | Suggest using multi-core copper wire with an area of 1-1.5 square millimeters |
| 2 | 28V | 50W以上放大器使用两根线 |
| 3 | GND | |
| 4 | GND | |
| 5 | EN | 0=关；5V=开；不连接默认关 |
| 6 | LOCK | 高电平输出，配合EN使用 |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
