LNA
400~8000MHz, Gain40dB, Noise figure3dB, P-1dB13dBm, SMA, Limiting amplifier
- DLNA8-400-8000-2674
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 40 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 13 | dBm | ||
| Max input power | 3 | W |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Storage Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Limiting amplifier |
| / |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | P-1dB |
| 10 | 1.49 | 479.57 | 11.77 | 7.08 | 9 |
| 652 | 1.05 | 1.46 | 43.32 | 1.34 | 20.33 |
| 1294 | 1.18 | 1.36 | 43.01 | 1.49 | 19.87 |
| 1936 | 1.4 | 1.23 | 43.04 | 1.51 | 19.44 |
| 2579 | 1.6 | 1.17 | 42.67 | 1.72 | 19.27 |
| 3221 | 1.73 | 1.38 | 42.57 | 1.48 | 19.27 |
| 3863 | 1.81 | 1.68 | 43.14 | 1.53 | 19.26 |
| 4505 | 1.76 | 1.84 | 44.01 | 1.57 | 19.16 |
| 5147 | 1.77 | 1.66 | 44.17 | 1.76 | 19.37 |
| 5789 | 1.48 | 1.96 | 42.78 | 1.91 | 19.33 |
| 6431 | 1.71 | 1.96 | 42.6 | 1.95 | 19.19 |
| 7074 | 1.18 | 1.61 | 42.62 | 2 | 19.34 |
| 7716 | 1.22 | 1.6 | 43.06 | 2.14 | 19.49 |
| 8358 | 3.57 | 3.4 | 44.69 | 2.45 | 19.28 |
| 9000 | 2.96 | 2.23 | 38.67 | 2.67 | 19.11 |
Reference picture
Configuration(mm)

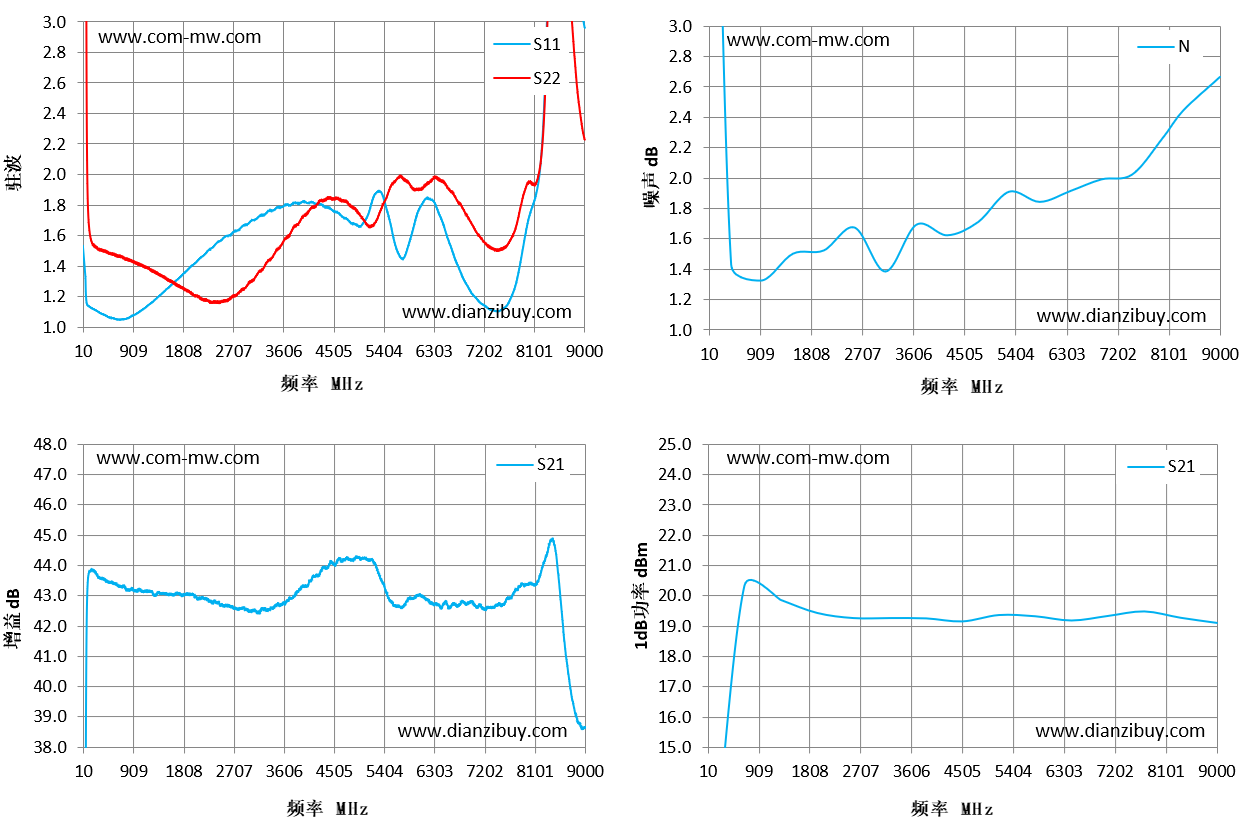

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
