Power amplifier
2~18GHz, Gain35dB, P-1dB33dBm, Psat35dBm, dBm, SMA
- DPA8-2000-18000-3216
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±3 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 33 | dBm | ||
| Psat | 35 | dBm | ||
| Max input power | 10 | dBm |
Environmental
| Connector | SMA-K |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 2000mA |
| Operation Temp. | -40~+65℃ Design assurance |

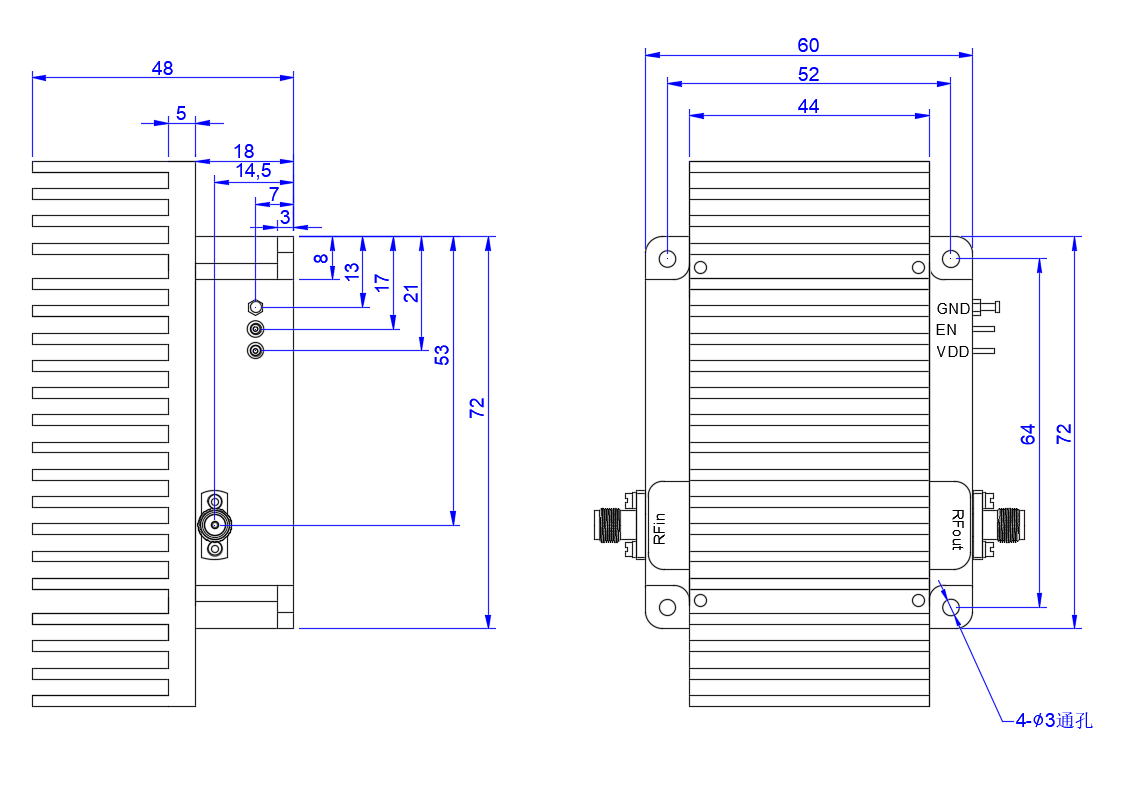

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
