LNA
400~18000MHz, Gain45dB, Noise figure2.5dB, P-1dB13dBm, SMA
- DLNA9-400-18000-1133
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low loss.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 18000 | MHz |
| Gain | 45 | 46 | dB | |
| Gain flatness | 2 | 4 | dB | |
| Noise figure | 2.5 | 3.3 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 11 | 13 | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 0.4 | 15.3 | 1.65 | 1.29 | 1.07 | 48.4 |
| 2 | 16 | 1.86 | 1.25 | 1.49 | 47.3 |
| 4 | 16.8 | 2.06 | 1.42 | 1.35 | 46.7 |
| 6 | 17 | 2.04 | 1.43 | 1.16 | 45.8 |
| 8 | 16.1 | 2.14 | 1.32 | 1.3 | 45.9 |
| 10 | 16.9 | 2.28 | 1.2 | 1.6 | 46.1 |
| 12 | 16 | 2.41 | 1.26 | 1.36 | 46.5 |
| 14 | 15.7 | 2.46 | 1.53 | 1.55 | 46.6 |
| 16 | 15.8 | 2.76 | 1.94 | 2.15 | 45.7 |
| 18 | 14.7 | 2.94 | 1.82 | 1.6 | 45.8 |
| 20 | 13.1 | 3.13 | 1.31 | 1.97 | 46.1 |
Reference picture
Configuration(mm)

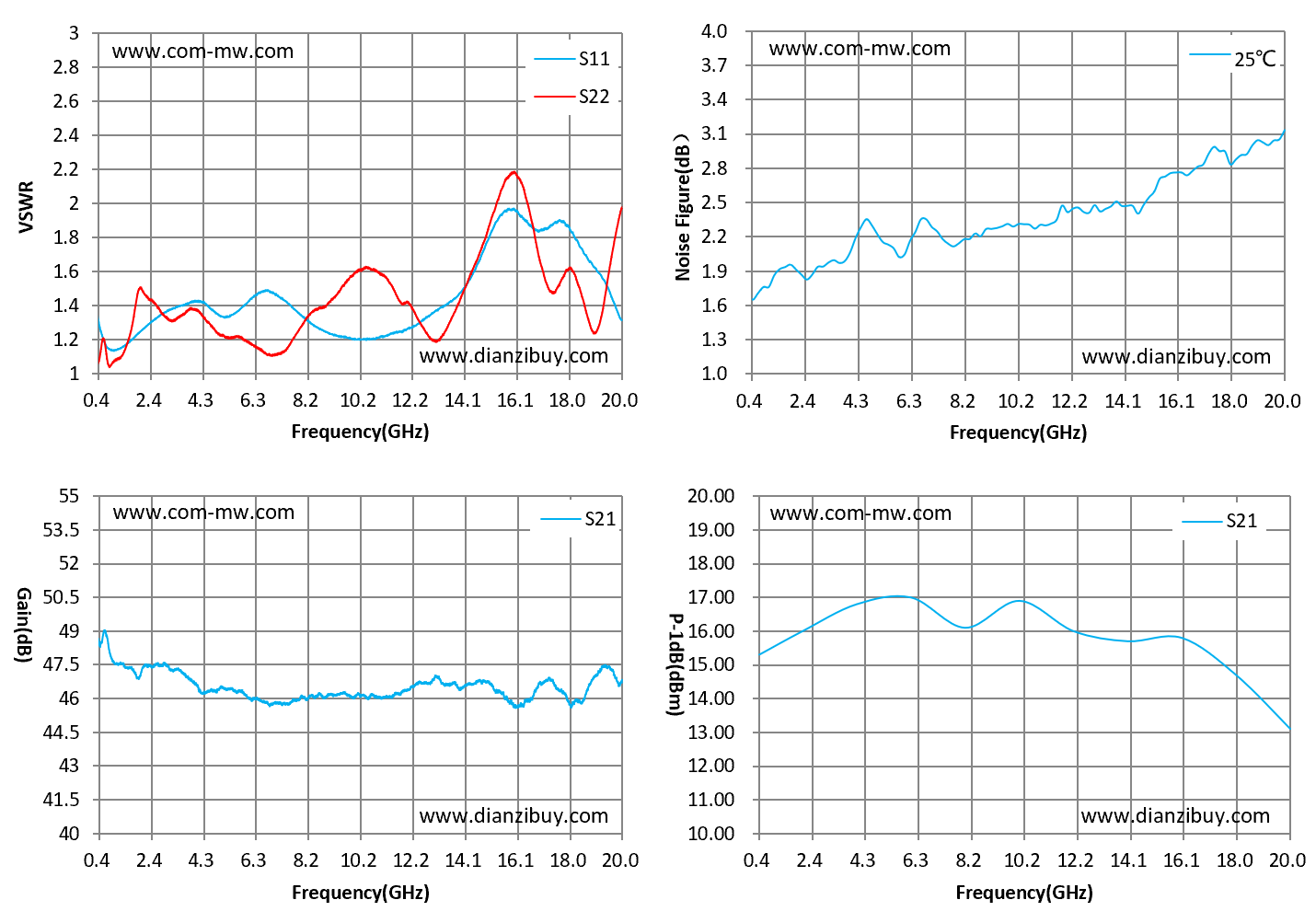

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
