LNA

18~26.5GHz, Gain40dB, Noise figure2.5dB, P-1dB10dBm, 2.92

  • DLNA8-18-26.5G-3016
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency18~26.5GHz
Gain40dB
Gain flatness2.5dB
Noise figure2.5dB
VSWR2
P-1dB10dBm
Max input power10dBm

Other parameters

Connector2.92-F detachable, Pin 0.3mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 GainS21 NoiseP-1 dBm
161.221.5646.062.3218.2
16.861.171.8346.54218.2
17.711.491.9545.771.9318.2
18.571.691.8944.471.7116.6
19.431.711.7143.861.9917.4
20.291.571.5844.321.717
21.141.51.4445.51.8518
221.541.4646.31.8818.7
22.861.581.4846.631.8718.9
23.711.651.5846.412.2119.1
24.571.631.6446.371.9619
25.431.421.8846.091.8519.1
26.291.241.944.812.2318.7
27.141.331.9442.912.4818.5
281.531.8941.282.4518.9

Reference picture

Configuration(mm)

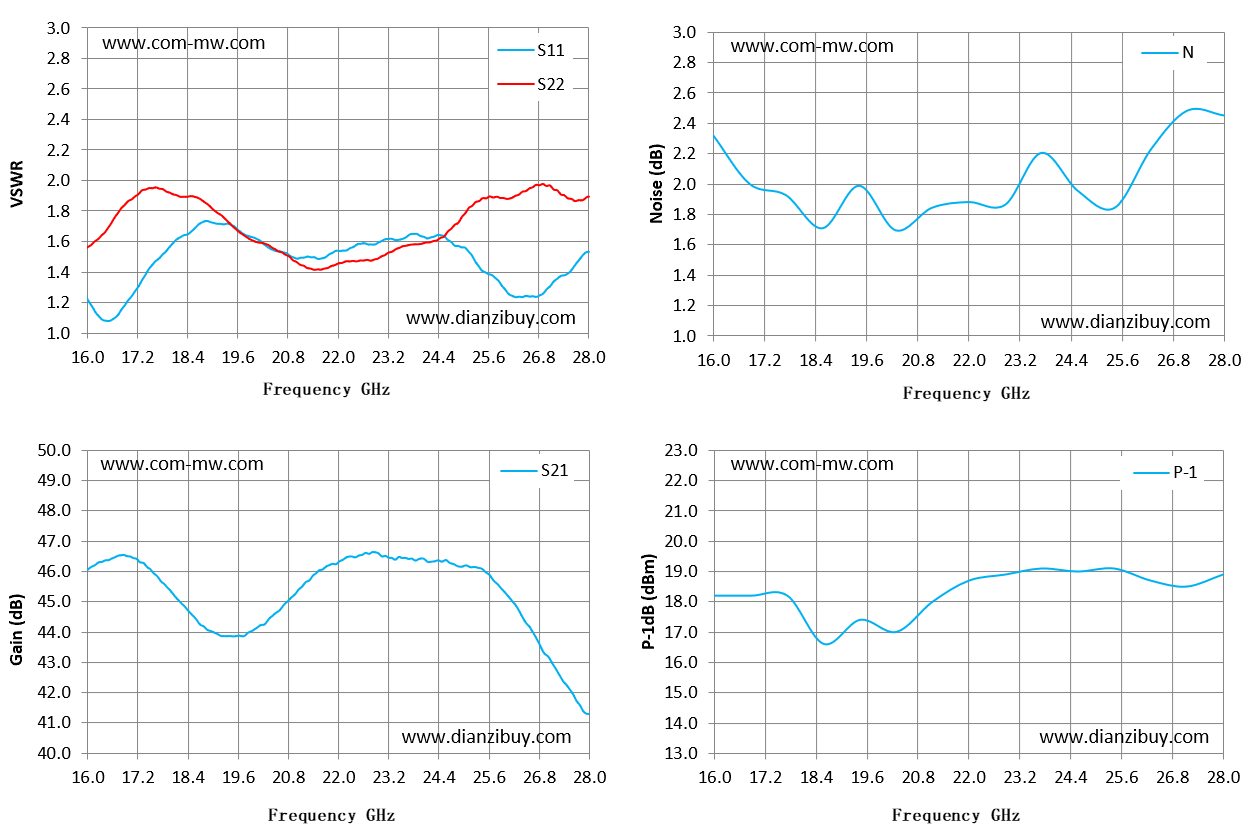

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
