Power amplifier
18~43GHz, Gain35dB, Psat28dBm, 2.92
- DPA8-18-43G-3087
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 43 | GHz |
| Gain | 35 | <br> | dB | |
| Gain flatness | <br> | ±3 | dB | |
| VSWR | <br> | 2.5 | ||
| P-1dB | 25 | dBm | ||
| Psat | <br> | 28 | dBm |
Environmental
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 1000mA |
| Operation Temp. | -30~+70℃ Design assurance |

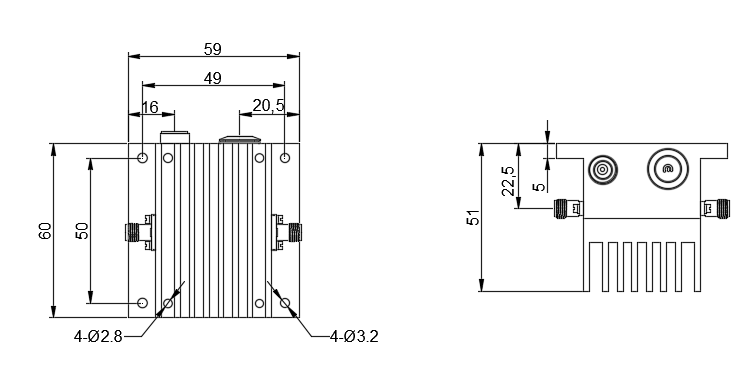

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
