Power amplifier
400~8500MHz, Gain30~45dB Negative slope, P-1dB20dBm, SMA
- DPA8-400-8500-1067
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, gain negative slope.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8500 | MHz |
| Gain | 30 | ~ | 45 | dB Negative slope |
| Gain flatness | 5dBpk-pk | dB | ||
| VSWR | 1.6 | 2.2 | ||
| P-1dB | 20 | dBm |
Environmental
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 400mA |
| Other | Maximum input undamaged power: 10dBm |
Typical test data
| Frequency (G) | S11 VSWR | S22 VSWR | S21 Gain | S21 P-1dB |
| 1 | 1.07 | 1.14 | 31.24 | 23.4 |
| 2 | 1.13 | 1.21 | 33.07 | 24.6 |
| 2 | 1.13 | 1.21 | 33.07 | 24.6 |
| 3 | 1.2 | 1.2 | 35.22 | 25.5 |
| 3 | 1.2 | 1.2 | 35.22 | 25.5 |
| 4 | 1.26 | 1.18 | 37.48 | 26.3 |
| 4 | 1.26 | 1.18 | 37.48 | 26.3 |
| 5 | 1.34 | 1.2 | 39.81 | 25.8 |
| 6 | 1.25 | 1.39 | 41.6 | 25.7 |
| 6 | 1.25 | 1.39 | 41.6 | 25.7 |
| 7 | 1.25 | 1.44 | 44.31 | 25.1 |
| 7 | 1.25 | 1.44 | 44.31 | 25.1 |
| 8 | 1.55 | 1.59 | 46.26 | 24.4 |

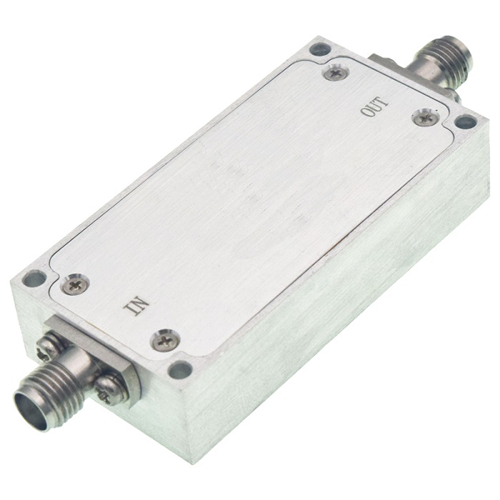

Reference picture
Configuration

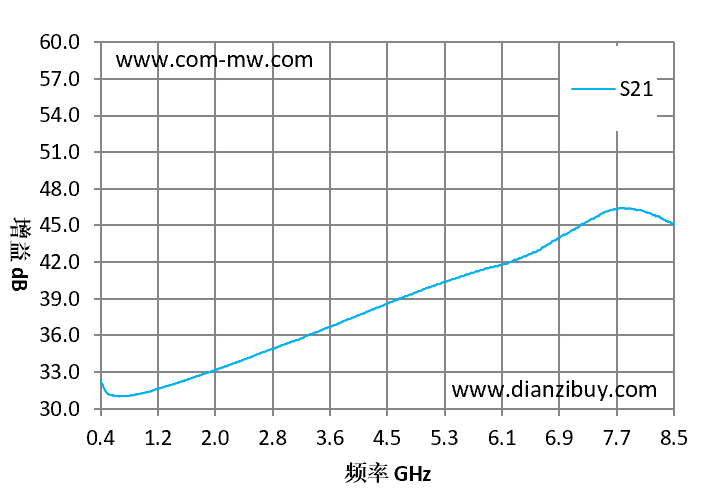

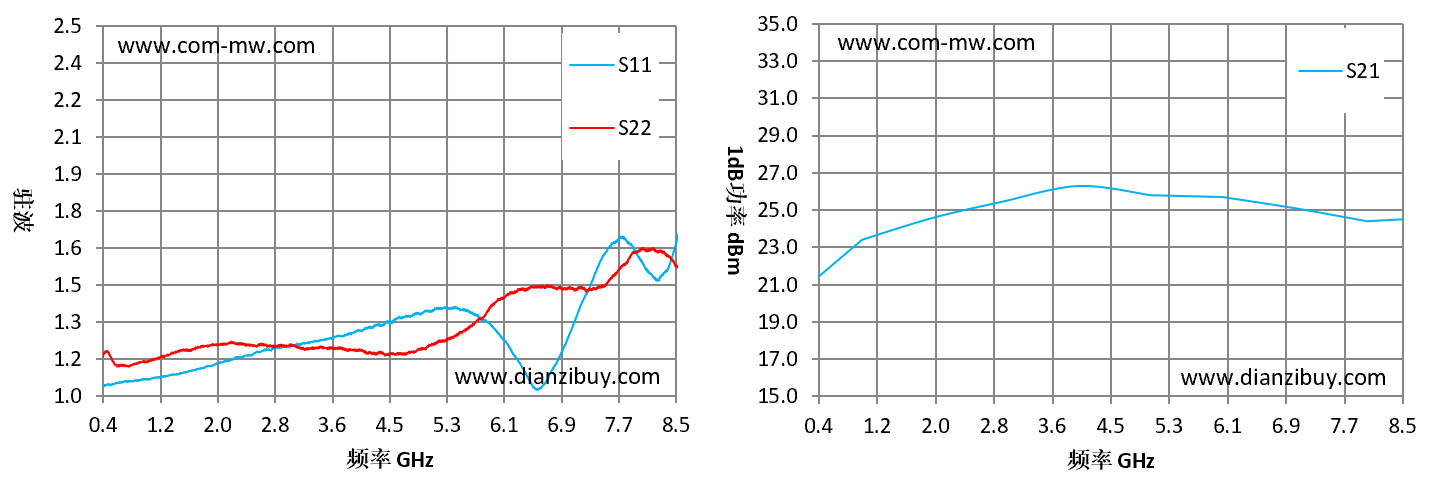

Typical test curve
Testing mode
/
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
