Power amplifier
Frequency18~40GHz, Gain30dB, Psat28dB
- DPA8-18-40G-3624
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±3 | dB | ||
| VSWR | 2.5 | |||
| Psat | 28 | dB |
Product Application
| Connector | 2.92-K |
| Surface | Conductive oxidation |
| Operation Temp. | -10~+40℃ Design assurance |
| Characteristic | Supports 220V AC and DC power supply |
Instructions for use
| 1 | Power supply method 1 | 110-220V power input, standard AC interface, 12-15V/5W output. |
| 2 | Power supply method 2 | DC power supply, interface DC 5.5mm (outer diameter) * 2.1mm (inner aperture) 220V power adapter for power supply |
| 3 | Shell Material | Shell aluminum material |
| 4 | DC output | The DC power supply voltage is determined by the internal template input voltage. |
| 5 | Instructions for using the power switch | The switch is set to neutral by default, controlling 220V and DC power supply. |
Parts list
| 1 | Standard configuration | One 220V AC power cord (2m) |
| 2 | Optional | Equipped with a power adapter |

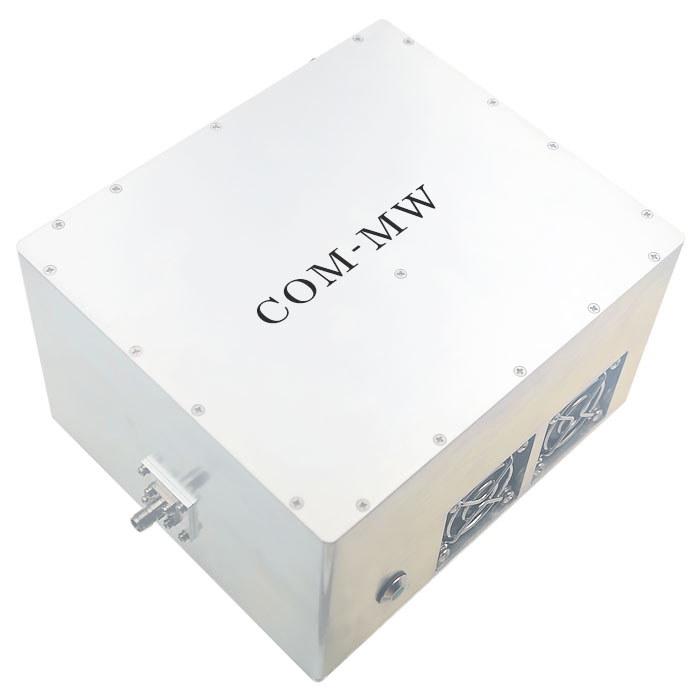

Reference picture

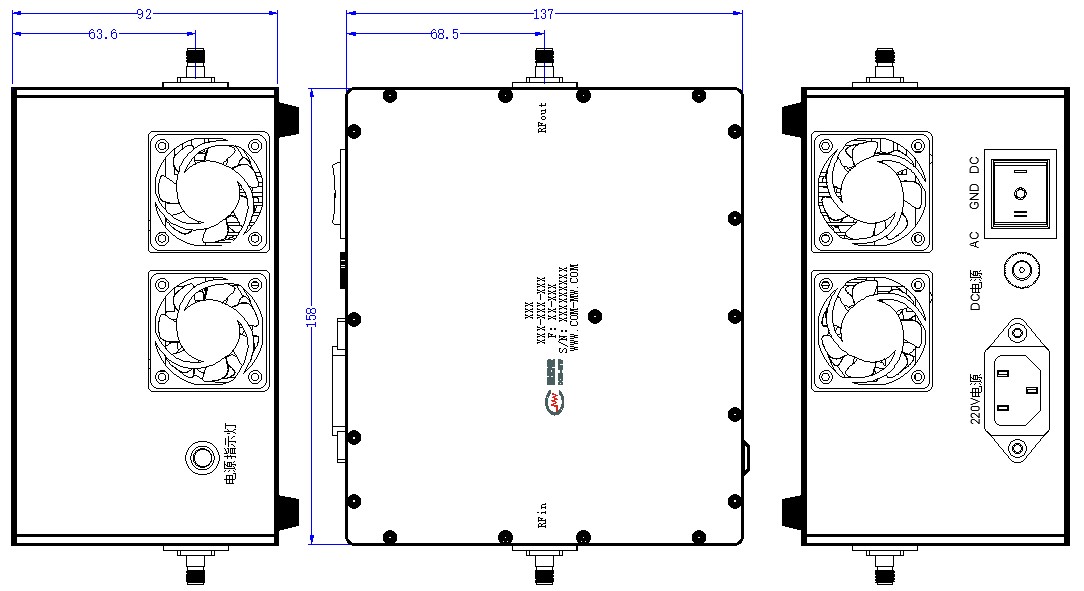

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
