LNA

26.5~40GHz, Gain40dB, Noise figure2.5dB, P-1dB10dBm, 2.92

  • DLNA8-26.5-40G-3017
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency26.5~40GHz
Gain40dB
Gain flatness2.5dB
Noise figure2.5dB
VSWR2
P-1dB10dBm
Max input power10dBm

Other parameters

Connector2.92-F detachable, Pin 0.3mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 GainS21 NoiseP-1 dBm
242.211.6344.82.1612.9
25.291.921.7845.071.8313.8
26.571.521.8446.32.3914.1
27.861.261.8447.172.0614.2
29.141.591.6548.012.4912.5
30.431.81.3747.452.213.2
31.711.861.3347.932.3914
331.71.4747.722.3612.6
34.291.61.3445.752.313.3
35.571.731.1845.282.514
36.861.821.2545.82.0914.4
38.141.311.5545.372.1214.1
39.431.41.4945.952.2115.5
40.711.262.5247.41.9314.8
4211.882.2950.462.4310.7

Reference picture

Configuration(mm)

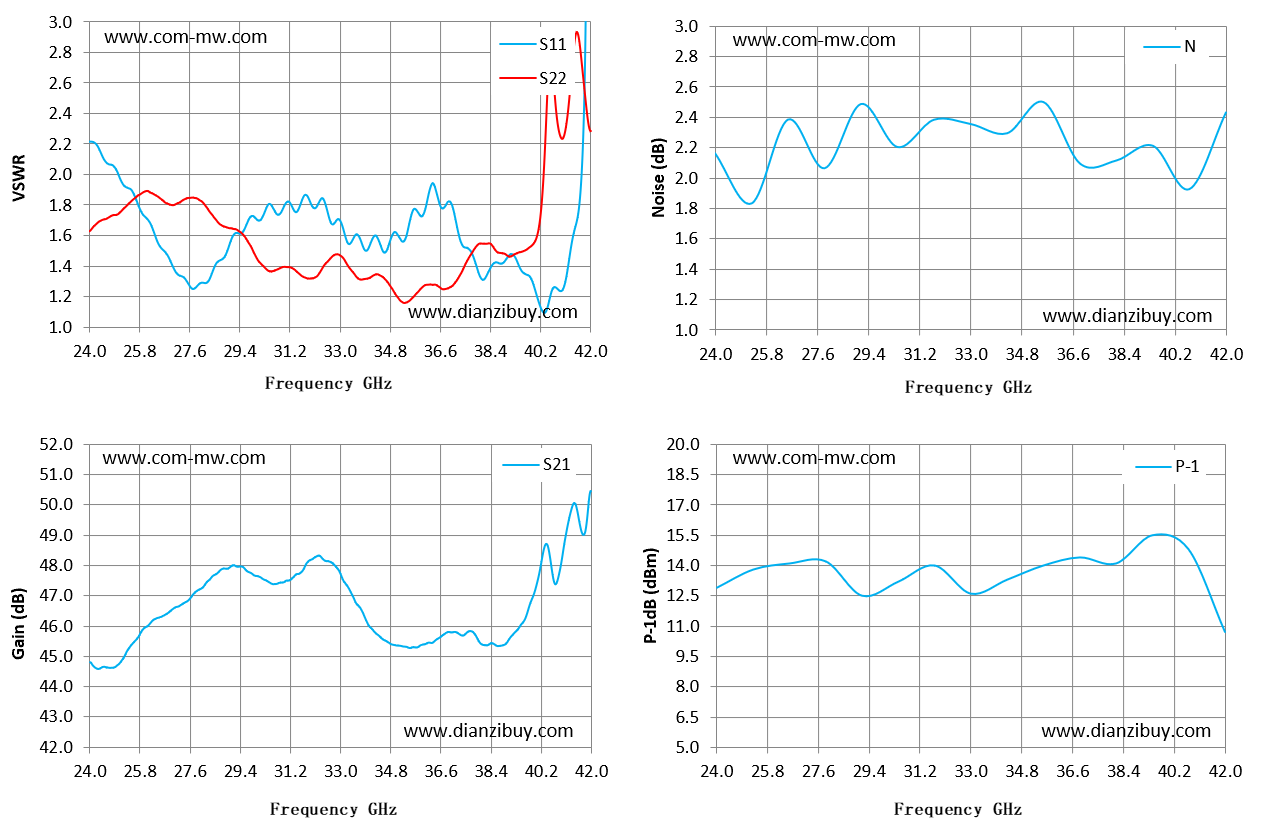

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
