LNA
1~18GHz, Gain30dB, Noise figure2.2dB, P-1dB15dBm, SMA
- DLNA8-1000-18000-741
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | 2 | 4 | dB | |
| Noise figure | 2.2 | 3 | dB | |
| VSWR | 1.8 | 2.2 | ||
| P-1dB | 10 | 15 | dBm | |
| OIP3 | 26 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 0.8 | 15.1 | 1.66 | 1.38 | 1.07 | 31.8 |
| 2.54 | 16.1 | 1.66 | 1.36 | 1.21 | 31.7 |
| 4.28 | 16.9 | 1.63 | 1.5 | 1.22 | 31.5 |
| 6.02 | 15.6 | 1.68 | 1.69 | 1.25 | 30.9 |
| 7.76 | 16.5 | 1.68 | 1.75 | 1.26 | 31 |
| 9.5 | 17.2 | 1.9 | 1.56 | 1.48 | 31.2 |
| 11.24 | 16.6 | 1.97 | 1.63 | 1.81 | 31 |
| 12.98 | 16.2 | 2.08 | 1.42 | 1.49 | 31.6 |
| 14.72 | 16.4 | 2.19 | 1.17 | 1.7 | 31.5 |
| 16.46 | 16.2 | 2.24 | 1.63 | 1.65 | 31.3 |
| 18.2 | 15.3 | 2.34 | 1.67 | 1.16 | 31.7 |

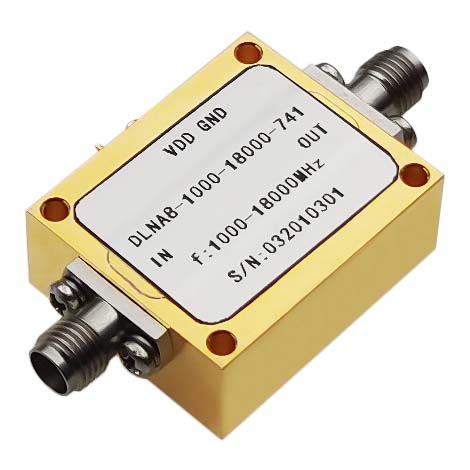

Reference picture
Configuration(mm)

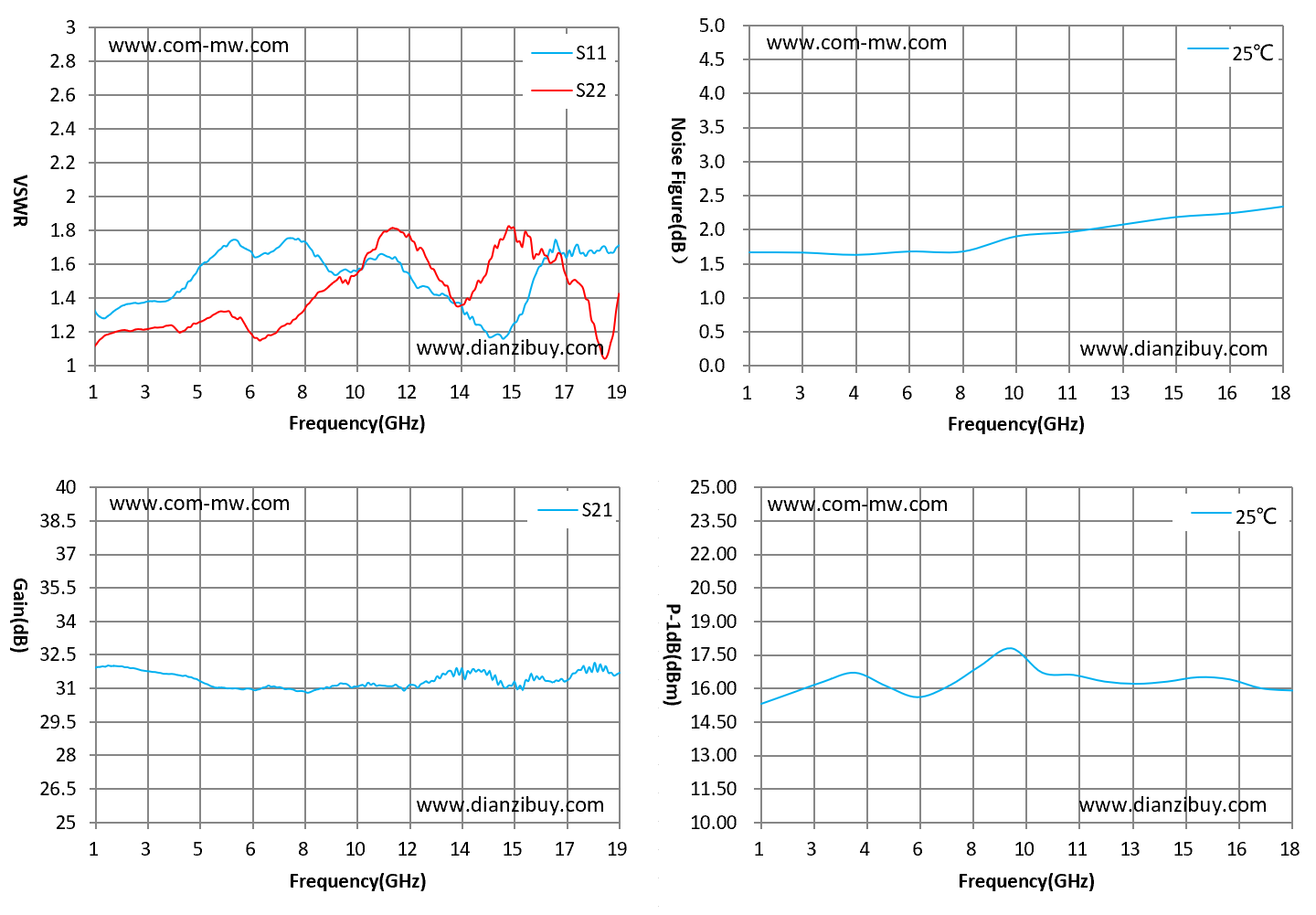

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
