Power amplifier
7250~7750MHz, Gain25dB, Noise figure5dB, P-1dB25dBm, SMA
- DPA8-7.25-7.75G-3910
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 7250 | ~ | 7750 | MHz |
| Gain | 25 | dB | ||
| Gain flatness | 2 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 25 | dBm |
Other parameters
| Connector | SMA |
| Connector material | Stainless steel |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -25~+60℃ Design assurance |
| Other | Adapter power supply |

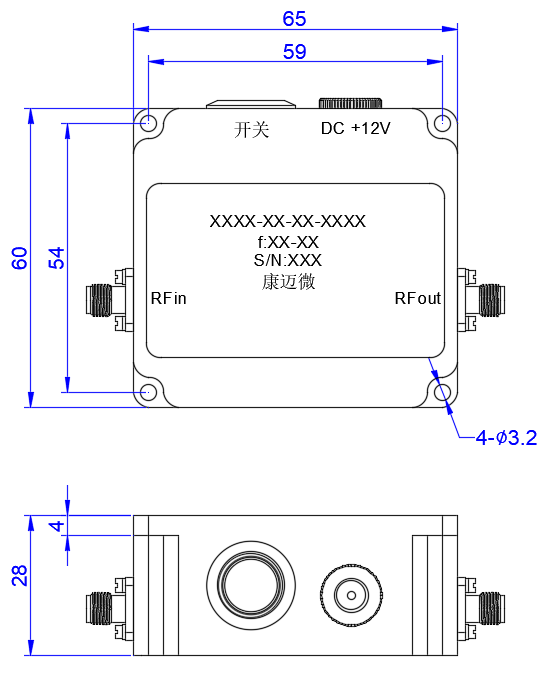

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
