Power amplifier
0.01~1MHz, Gain40dB, Psat43.5dBm, SMA
- DPA9-0.01-1-2018
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Equipped with negative pressure protection and over temperature protection design.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.01 | ~ | 1 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Harmonic Rejection | -10 | dBc | ||
| Spur reduction | -60 | dBc | ||
| Input VSWR | 1.5 | |||
| Psat | 43.5 | dBm |
Environmental
| Connector | SMA-K |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 4000mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |
| Power supply and control | DB9 |
| Other | Heat dissipation requirements: conduction+air cooling; Work efficiency: 40% (typical value); Maximum input power: 10dBm (without burning) |

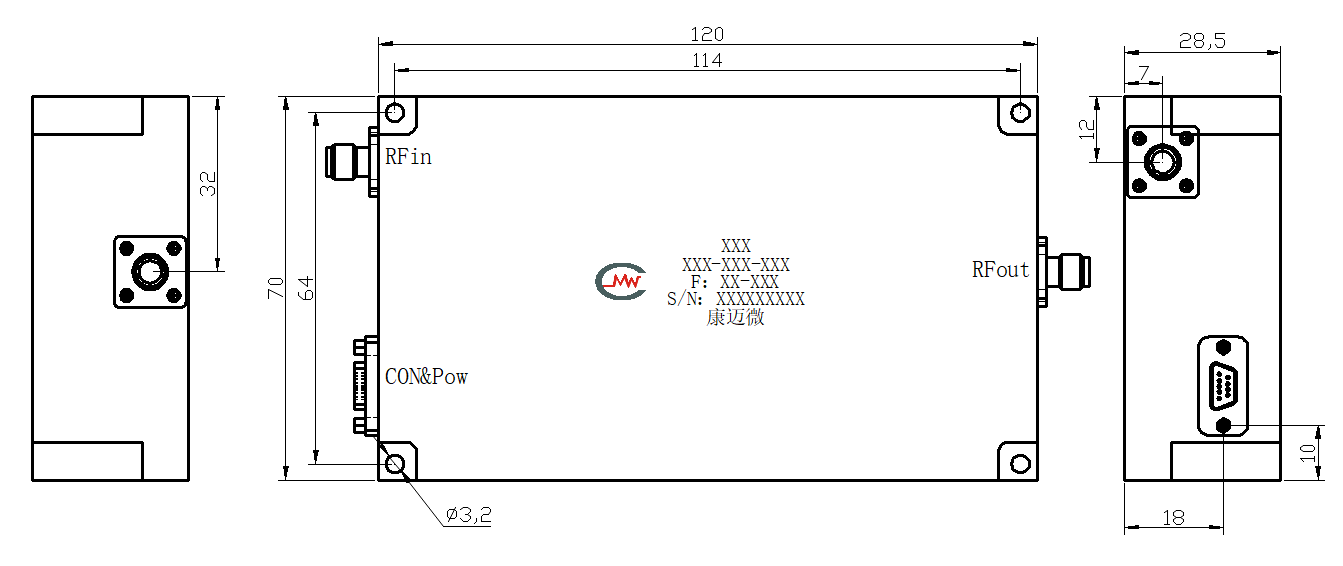

Configuration

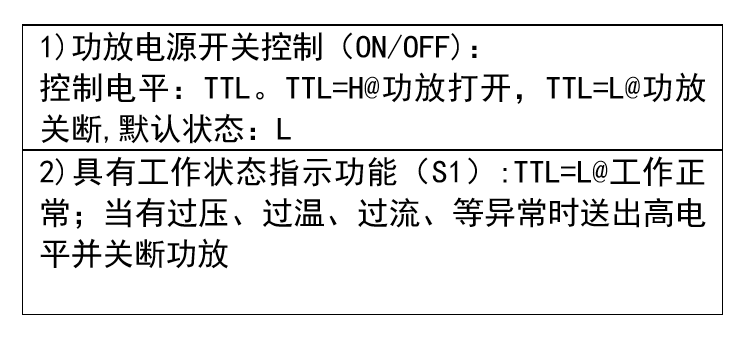

Control and testing requirements
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
