LNA
1~30MHz, Gain44dB, P-1dB10dBm, SMA, Adjustable gain
- DLNA8-1-30-2001
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 30 | MHz |
| Gain | 44 | 46 | dB | |
| Gain Adjustment Range | 45 | dB | ||
| Gain adjustment minimum step | 0.5 | dB | ||
| Gain flatness | ±1 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Surface | Nickel plating |
| Working voltage | +5V |
| Working current | 300mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | Electrical connector interface: J30J-15; Control Protocol: I2C |

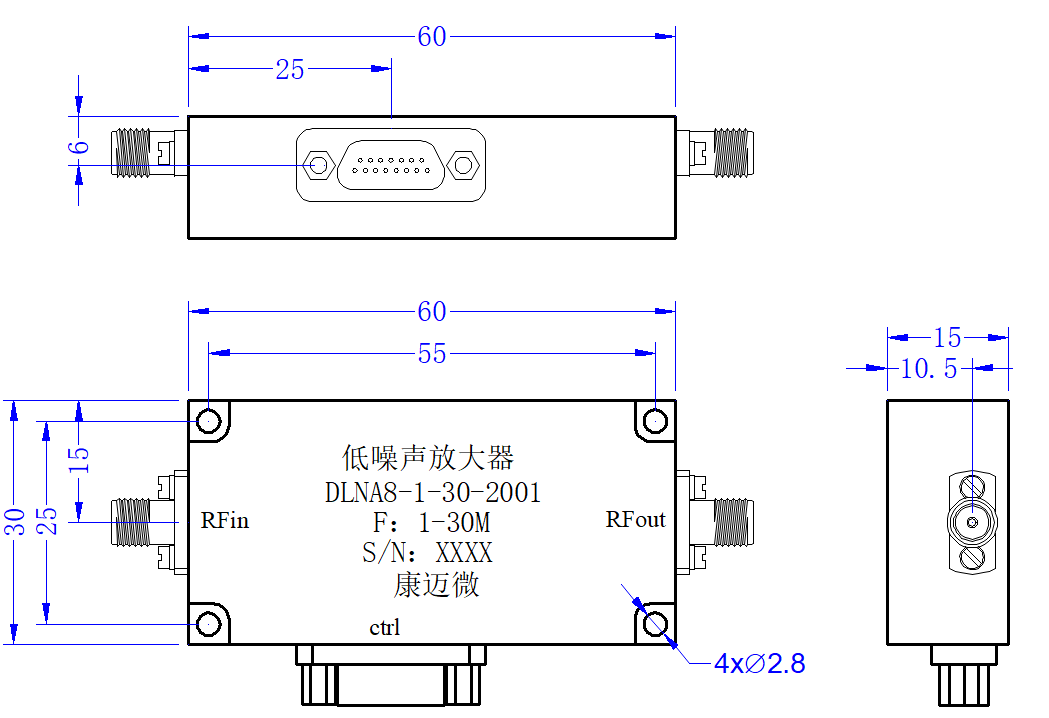

Configuration(mm)
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
