Power amplifier
0.1~5GHz, GaindB, Output power1.5W, SMA-F
- DPA8-0.05-8G-3976
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Narrowband, high power.
Tech specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 0.1 | ~ | 5 | GHz | |
| Gain | 27 | dB | |||
| Flatness in band | 3 | dB | |||
| Input VSWR | 2.2 | 2.8 | |||
| Output power | 1.5 | W | |||
| Efficiency | 12 | 25 | % | ||
| Harmonic Rejection | 8 | 10 | dBC | ||
| Spurious suppression | 52 | dBC | F0±200kHz | ||
| ACP | 70 | dBC |
Environmental
| Connector | SMA-F |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 2.5A |
| Operation Temp. | -40~+65℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |
Typical test data
| F（GHz） | 0.1 | 1 | 1.8 | 2.6 | 3.4 | 4.2 | 5 | 5.8 |
| VSWR（IN） | 1.52 | 1.2 | 2.11 | 1.81 | 1.24 | 1.71 | 2.45 | 2.11 |
| Psat（dBm） | 32.76 | 31.9 | 31.12 | 32.05 | 32.39 | 32.54 | 30.97 | 26.96 |
| Psat（W） | 1.89 | 1.55 | 1.29 | 1.6 | 1.73 | 1.79 | 1.25 | 0.5 |
| Gain(sat)（dB） | 28.84 | 28.59 | 28.56 | 28.16 | 27.77 | 27.84 | 27.7 | 28.18 |
| Ids（A） | 0.18 | 0.17 | 0.2 | 0.18 | 0.21 | 0.19 | 0.17 | 0.14 |
| η(%) | 37.46 | 32.54 | 23.11 | 31.81 | 29.49 | 33.74 | 26.27 | 12.67 |
| 2nd harmonic rejection (dBc) | 10.86 | 11.25 | 10.41 | 8.71 | 12.17 | 11.2 | 19.8 | 17 |
| 3rd harmonic rejection (dBc) | 16.21 | 19.45 | 15.62 | 29.8 | 25.4 | 29.7 | 50.1 | 36.5 |
| 4th harmonic rejection (dBc) | 17.22 | 15.72 | 15.77 | 27.35 | 45.4 | 39.5 | 34.2 | 62.3 |
| Spurious suppression | 54 | 52.8 | 55 | 55.3 | 56.5 | 59 | 56 | 52.2 |
| ACP（dBc） | 73.8 | 74.2 | 73.3 | 72.1 | 74.2 | 72.6 | 70.4 | 67 |
Reference picture

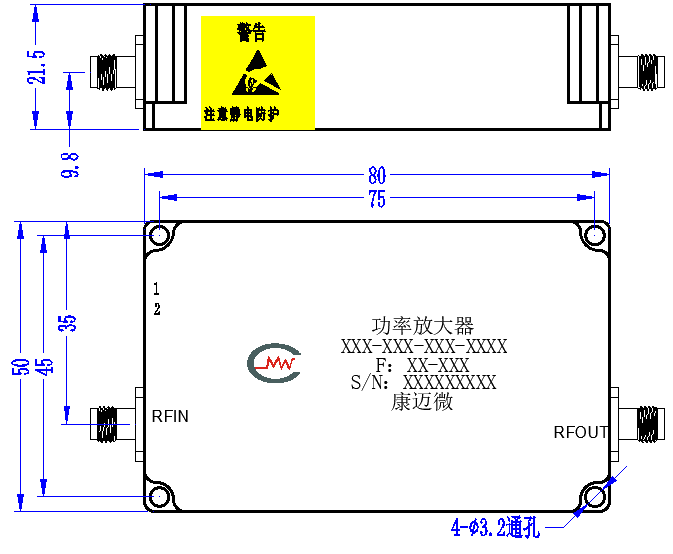

Configuration

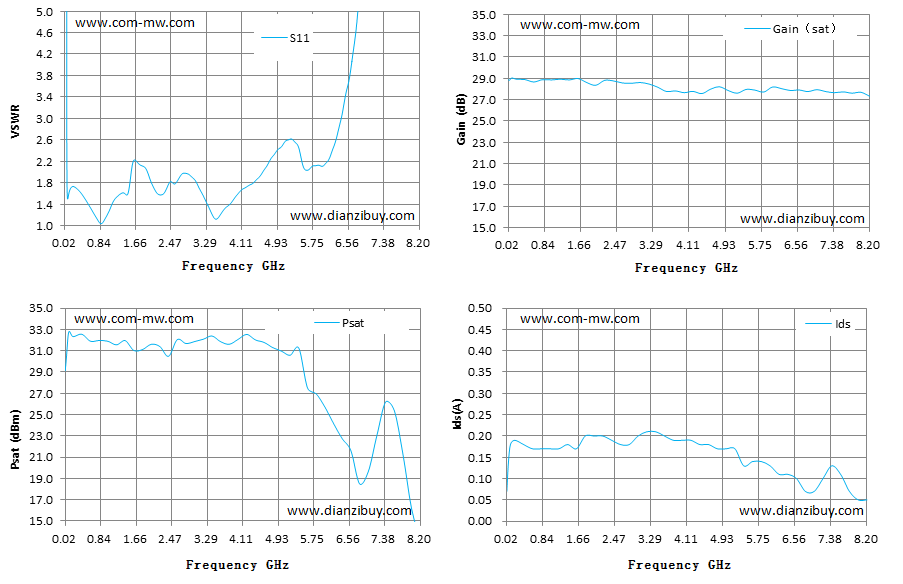

Typical test curve
接口定义（3.5mm-2）
| No. | definition | Note |
| Pin 1 | 28V | |
| Pin 2 | GND |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
