Power amplifier
2.0~2.4GHz, Gain47dB, Output power17W, Efficiency18%, SMA, N
- DPA8-1.8-2.6G-3966
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 2.0 | ~ | 2.4 | GHz | |
| Gain | 45 | 47 | dB | Small signal gain | |
| Flatness in band | ±1.5 | dB | |||
| Input VSWR | 1.6 | 2.1 | |||
| Output power | 17 | 29 | W | CW | |
| Efficiency | 13 | 18 | % | ||
| Harmonic Rejection | 70 | 72 | dBc | ||
| Spurious suppression | 52 | 55 | dBc | @F0±200K | |
| ACP | 68 | dBc |
Other parameters
| Input connector | SMA-K |
| Output port | N -K |
| 加电接口形式 | M12-7反装座 |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 5A |
| Module temperature during operation | -20~+40℃ Design assurance |
| Other | When working for a long time, the temperature of the casing is below 40 ℃. |
Typical test data
| Frequency GHz | 2 | 2.1 | 2.2 | 2.3 | 2.4 |
| VSWR（IN） | 1.82 | 1.27 | 1.3 | 1.41 | 1.19 |
| Psat（dBm） | 43.61 | 44.34 | 42.9 | 42.41 | 42.15 |
| Psat（W） | 22.96 | 27.16 | 19.49 | 17.42 | 16.41 |
| Gain（dB） | 48.17 | 49.37 | 48.43 | 48.72 | 47.59 |
| Ids（A） | 4.7 | 4.26 | 4.32 | 4.71 | 4.28 |
| ŋ(%) | 17.45 | 22.77 | 16.12 | 13.21 | 11.85 |
| 2nd harmonic rejection (dBc) | 71 | 73 | 77 | 81.9 | 80 |
| 3rd harmonic rejection (dBc) | 80 | 76.5 | 80.89 | 74.6 | 67.2 |
| Spurious suppression | 52 | 64 | 61.9 | 56.8 | 54.7 |
| ACP（dBc） | 73.6 | 74.2 | 73 | 72.6 | 71.6 |

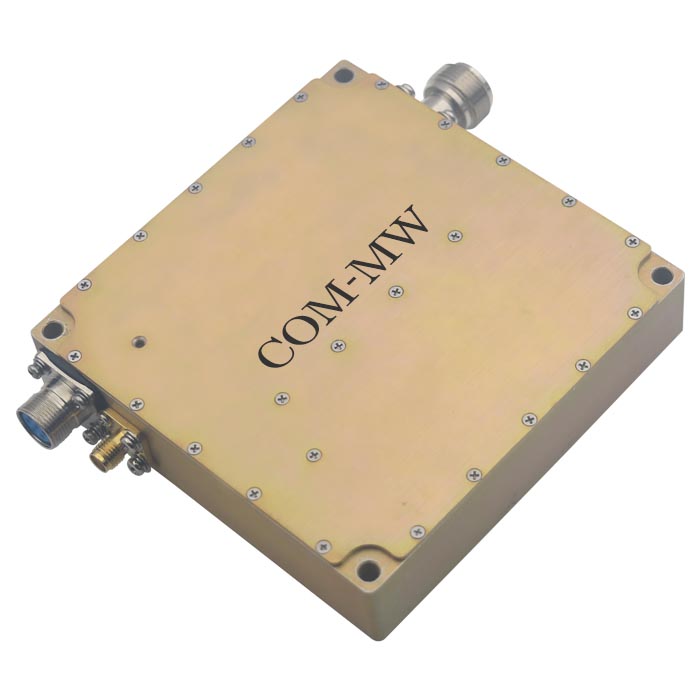

Reference picture

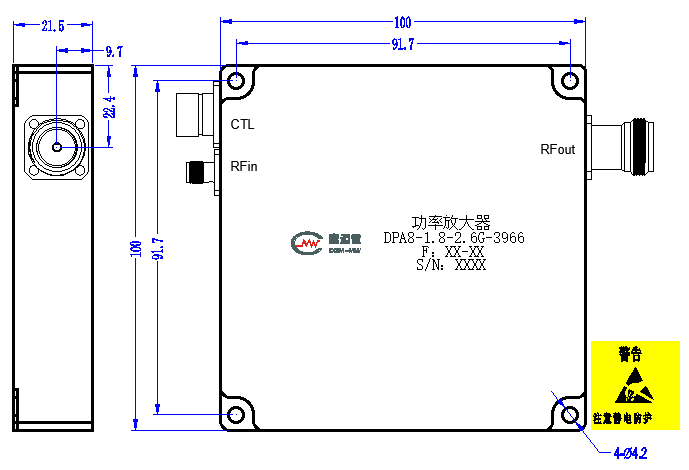

Configuration

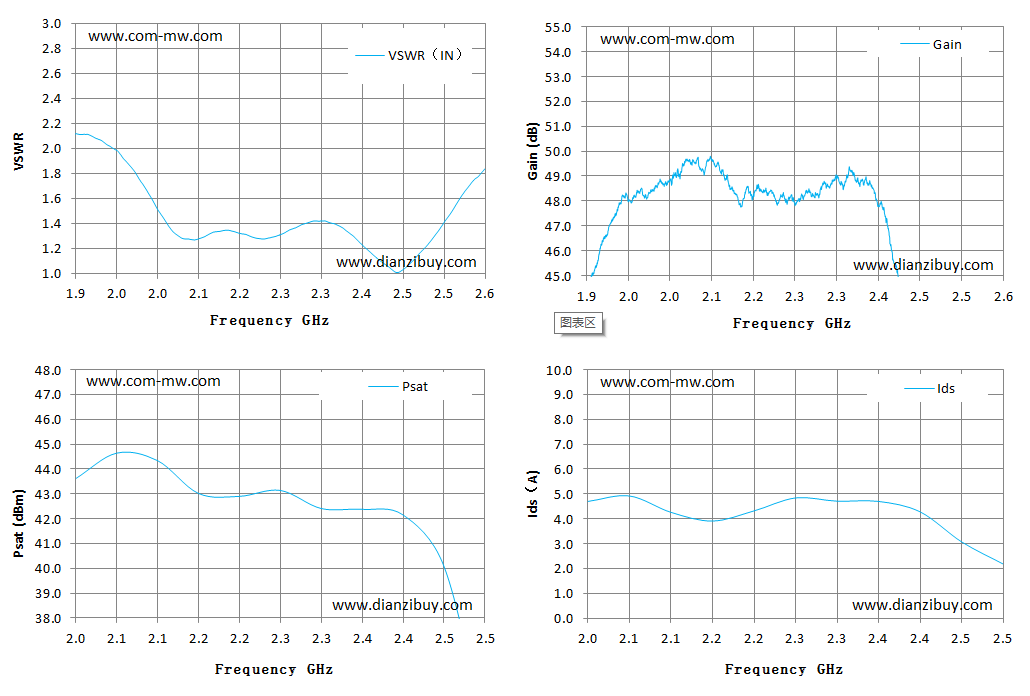

Typical test curve

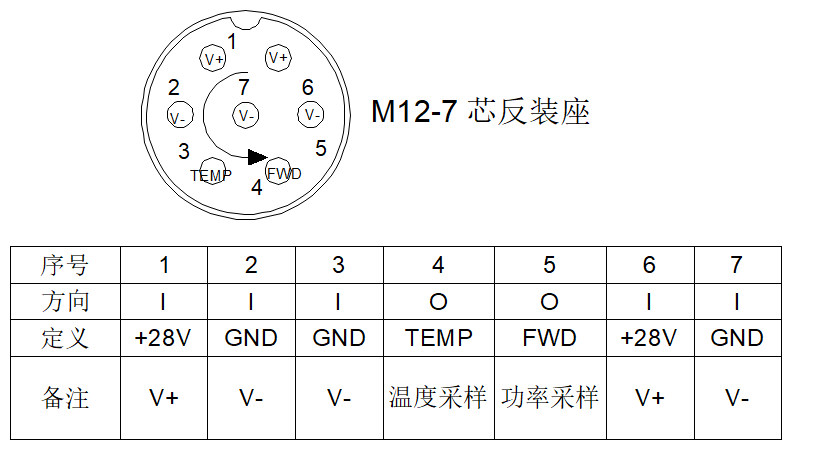

Port Definition
Notes:
Pay attention to the wiring position of the connector;
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Equipped with overheating, open circuit and short circuit protection;
Clean the surface of the product, do not soak the product in a cleaning solution
