Waveguide adapter
Frequency6570~9990MHz, 50W, Rect waveguider, BJ84, SMA
- D8-AWC84SK-1296
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low loss, high power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6570 | ~ | 9990 | MHz |
| IL | 0.13 | dB | ||
| VSWR | 1.2 | dB |
Other parameters
| Power | 50W |
| Waveguide model | Rect waveguider |
| Connector 1 | BJ84 |
| Connector 2 | SMA-K |
| Flange model | FBP |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -55~+125℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB |
| 6.4 | 1.2 | -0.11 |
| 6.68 | 1.12 | -0.04 |
| 6.96 | 1.14 | -0.05 |
| 7.24 | 1.15 | -0.07 |
| 7.51 | 1.13 | -0.05 |
| 7.79 | 1.1 | -0.04 |
| 8.07 | 1.07 | -0.05 |
| 8.35 | 1.02 | -0.07 |
| 8.63 | 1.03 | -0.05 |
| 8.91 | 1.09 | -0.05 |
| 9.19 | 1.1 | -0.03 |
| 9.46 | 1.07 | -0.03 |
| 9.74 | 1.07 | -0.04 |
| 10.02 | 1.09 | -0.06 |
| 10.3 | 1.13 | -0.05 |

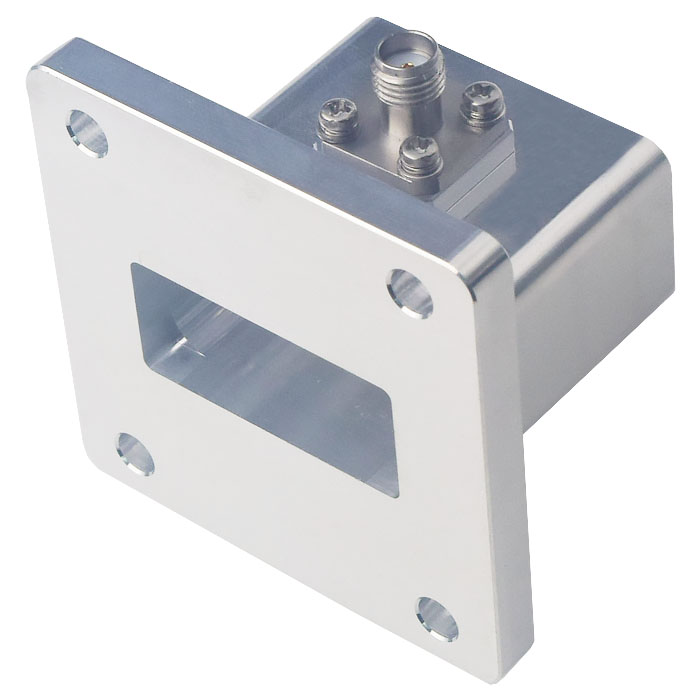

Reference picture

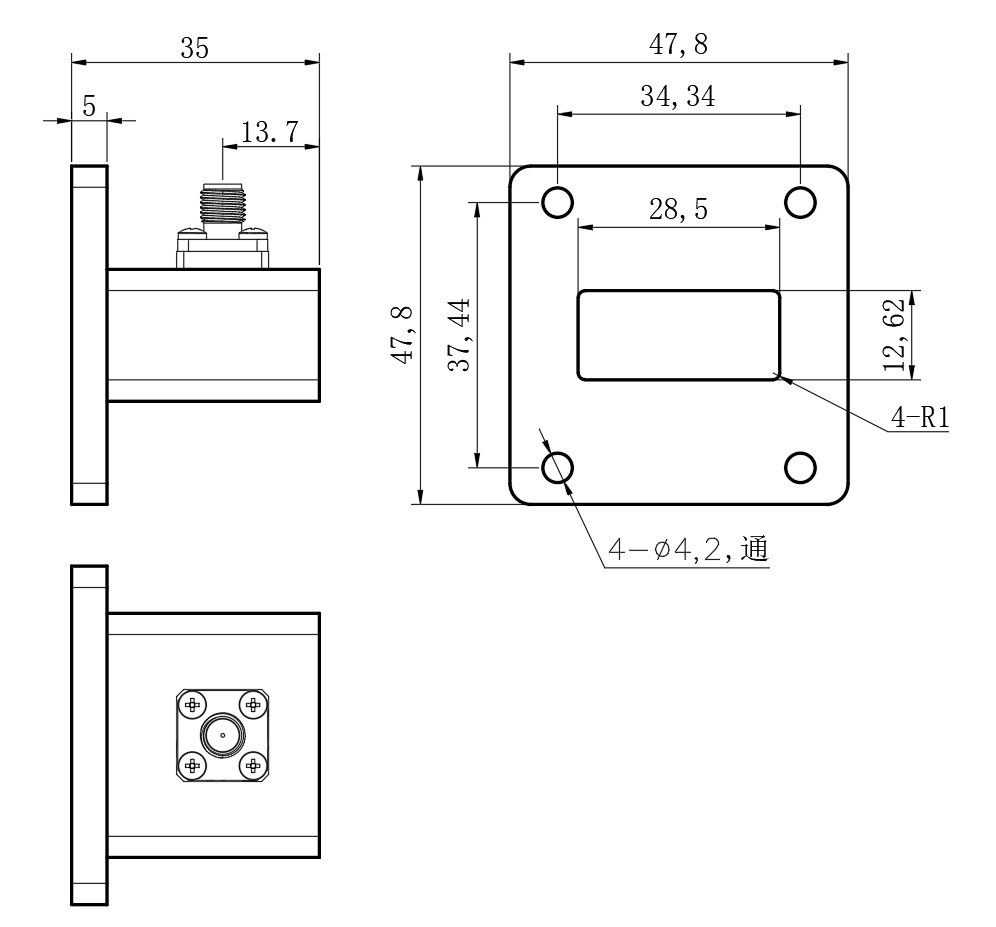

Configuration(mm)

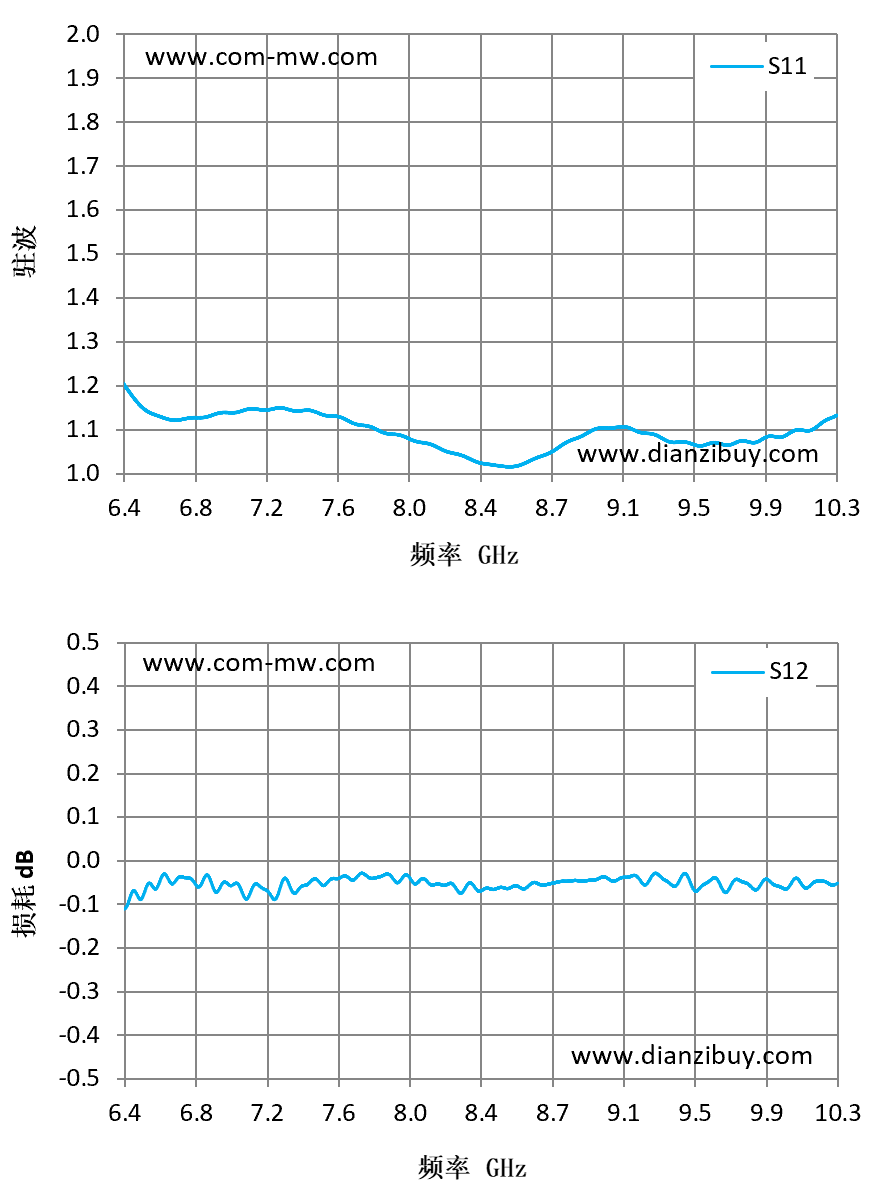

Typical test curve
