LNA
Frequency0.8~26.5GHz, Gain33dB, P-1dB output power10dBm, 2.92
- DLNA8-0.8-26.5G-3808
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.8 | ~ | 26.5 | GHz |
| Gain | 33 | dB | ||
| Gain flatness | ±2 | ±3 | dB | |
| VSWR | 2 | 2.5 | ||
| Noise figure | 4.5 | |||
| P-1dB output power | 10 | dBm |
Product Application
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -20~+60℃ Design assurance |
| Characteristic | Input 220v AC |
Parts list
| 1 | Optional | Equipped with a power adapter |

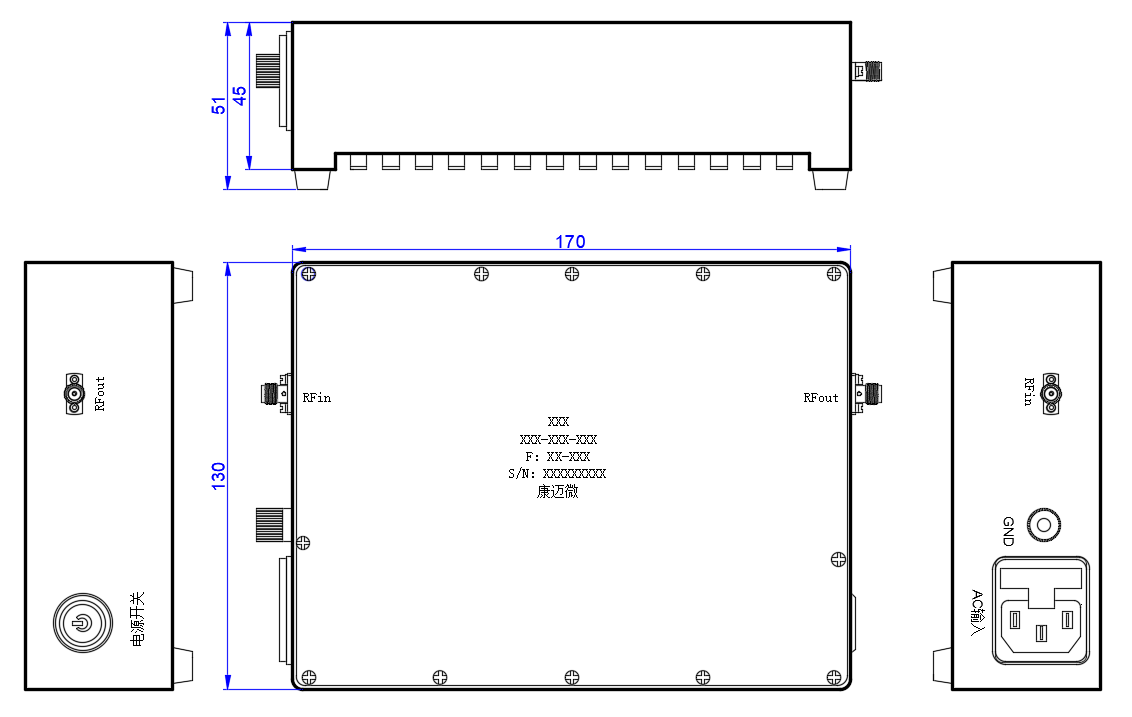

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
