LNA
400~8000MHz, Gain20dB, Noise figure1.8dB, P-1dB10dBm, SMA
- DLNA8-400-8000-1209
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | 3 | dB | ||
| Noise figure | 1.8 | 2.5 | dB | |
| VSWR | 1.7 | 2.2 | ||
| P-1dB | 10 | 14 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Installed on the radiator or casing; The maximum input does not damage the power by 10dBm. |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 200 | 17.1 | 1.22 | 1.09 | 1.14 | 28.4 |
| 1000 | 16.9 | 1.28 | 1.3 | 1.49 | 27.7 |
| 1800 | 16.5 | 1.34 | 1.66 | 1.61 | 27.2 |
| 2600 | 17.3 | 1.29 | 1.82 | 1.39 | 26.9 |
| 3400 | 16.4 | 1.37 | 1.73 | 1.54 | 28.9 |
| 4200 | 16 | 1.47 | 1.54 | 1.74 | 27.7 |
| 5000 | 15 | 1.45 | 1.17 | 1.15 | 28.5 |
| 5800 | 14.5 | 1.44 | 1.14 | 1.12 | 28.6 |
| 6600 | 14.4 | 1.57 | 1.22 | 1.48 | 28.7 |
| 7400 | 12.5 | 1.68 | 1.33 | 1.62 | 28.8 |
| 8200 | 11.2 | 2 | 1.65 | 1.7 | 28.9 |
Reference picture
Configuration(mm)

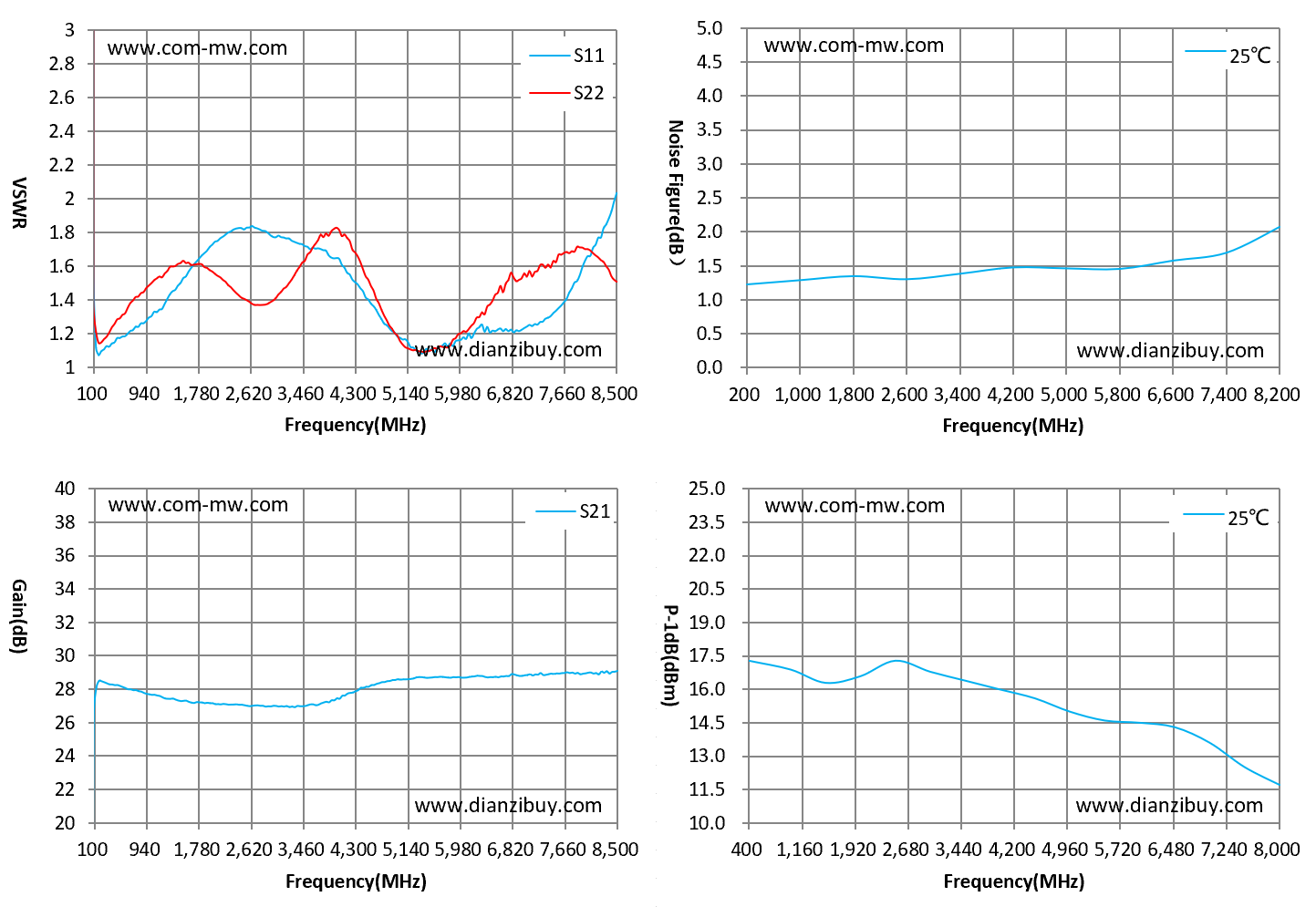

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
