LNA
30~1000MHz, Gain40dB, Noise figure1.3dB, P-1dB19dBm, SMA
- ZT30-1000M
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 1000 | MHz |
| Gain | 40 | dB | ||
| Noise figure | 1.3 | dB | ||
| P-1dB | 19 | 19.5 | dBm | |
| Max input power | -5 | dBm | ||
| OIP3 | 24 | dBm |
Other parameters
| Connector | SMA-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +8~12V |
| Working current | ≤300mA |
| Reverse isolation | 45dB |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -50~+85℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 NF dB | P-1 dBm | Psat dBm |
| 0.01 | -15.10 | -12.18 | 42.42 | 3.46 | 18.90 | 19.10 |
| 0.10 | -31.10 | -25.84 | 42.14 | 0.76 | 20.00 | 20.10 |
| 0.18 | -33.21 | -27.17 | 42.10 | 0.70 | 20.10 | 20.20 |
| 0.27 | -27.28 | -27.87 | 42.06 | 0.59 | 20.20 | 20.30 |
| 0.35 | -23.67 | -27.23 | 42.07 | 0.52 | 20.20 | 20.30 |
| 0.44 | -20.62 | -25.91 | 41.92 | 0.57 | 20.30 | 20.50 |
| 0.52 | -19.06 | -23.20 | 41.73 | 0.61 | 20.30 | 20.60 |
| 0.61 | -17.34 | -21.08 | 41.51 | 0.68 | 20.40 | 20.60 |
| 0.69 | -16.09 | -19.20 | 41.16 | 0.76 | 20.50 | 20.80 |
| 0.78 | -15.32 | -17.99 | 40.74 | 0.85 | 20.40 | 20.80 |
| 0.86 | -14.88 | -16.99 | 40.37 | 0.89 | 20.50 | 20.90 |
| 0.95 | -14.40 | -15.94 | 39.91 | 0.94 | 20.50 | 20.90 |
| 1.03 | -14.30 | -15.44 | 39.48 | 0.92 | 20.60 | 21.00 |
| 1.12 | -14.37 | -14.96 | 39.03 | 0.89 | 20.60 | 21.10 |
| 1.20 | -14.48 | -14.54 | 38.60 | 0.86 | 20.50 | 21.10 |

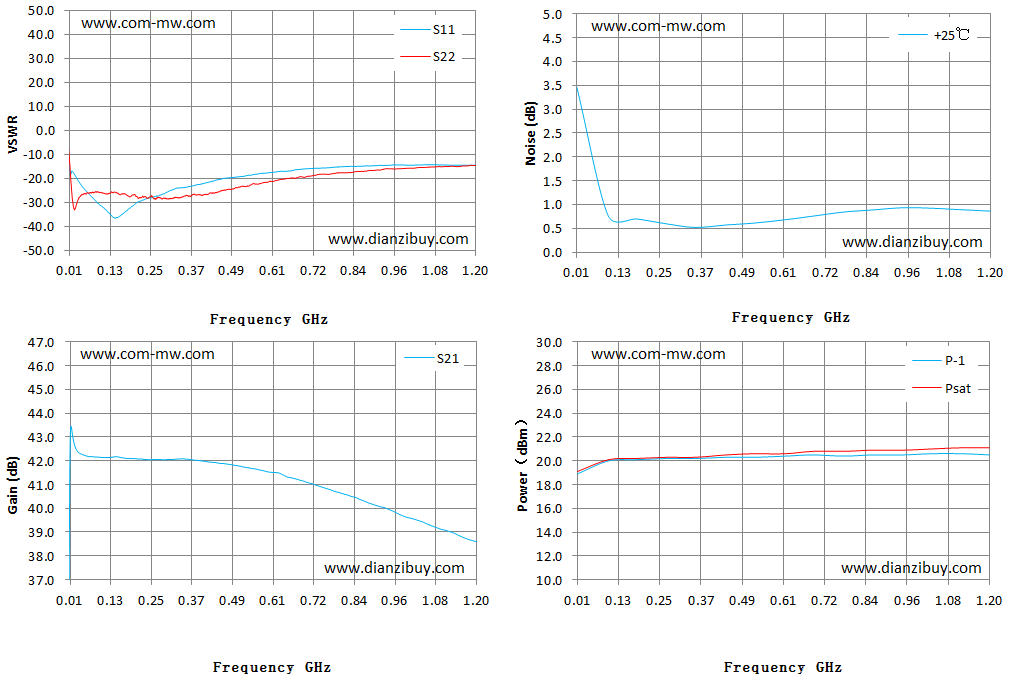

Typical test curve

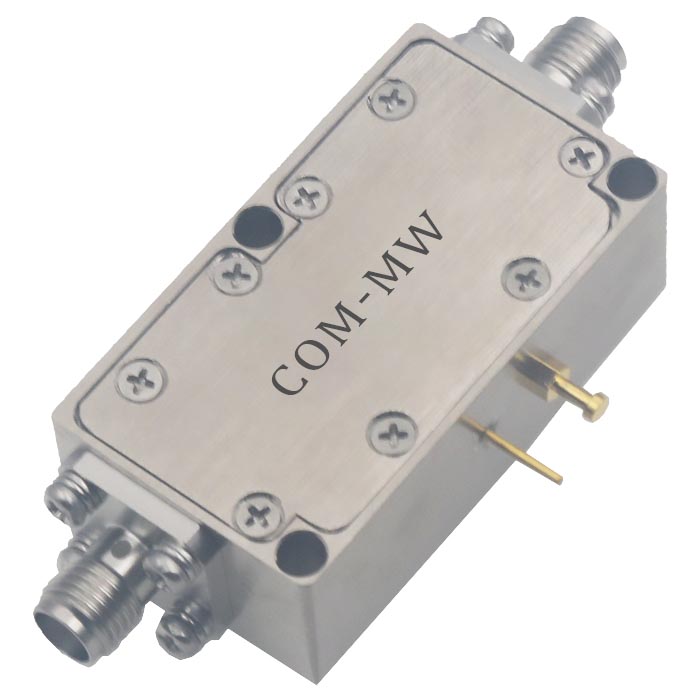

Reference picture

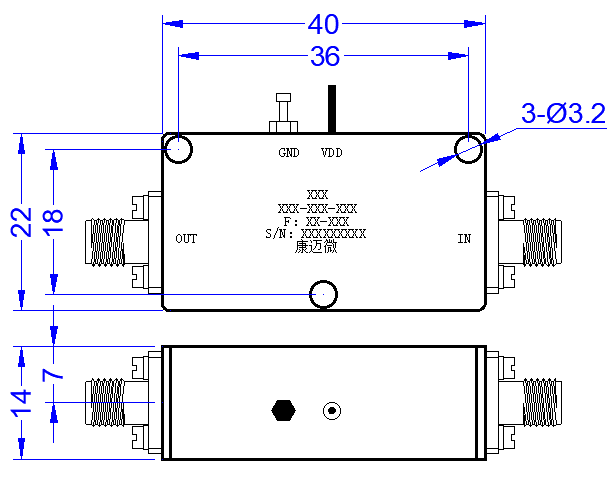

Configuration(mm)
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
