LNA
2000~26500MHz, Gain15dB, Noise figure3.0dB, P-1dB10dBm, SMA-K
- DLNA8-2-26.5G-3504
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2000 | ~ | 26500 | MHz |
| Gain | 15 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 3.0 | 5 | dB | |
| VSWR | 2.0 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Working voltage | +5-12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Output port power supply |

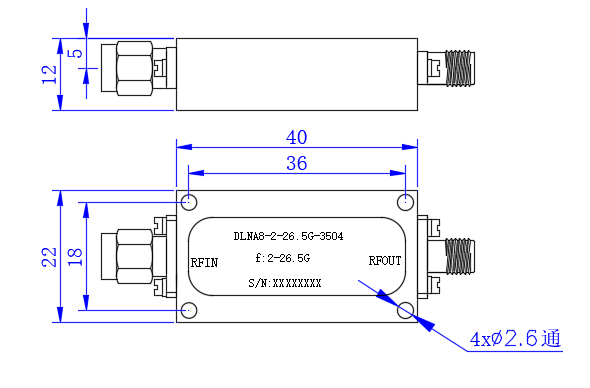

Configuration(mm)
