LNA
1~40GHz, Gain40dB, P-1dB10dBm, 2.92-K
- DLNA8-1-40G-4058
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 40 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 6 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | NOSIE | P-1 | PSAT |
| GHz | VSWR | VSWR | dB | dB | dBm | dBm |
| 0.01 | 1.21 | 1.54 | 50.07 | 11.47 | 13.78 | 16 |
| 0.1 | 1.2 | 1.51 | 50 | 5.1 | 15.53 | 17.82 |
| 0.5 | 1.22 | 1.51 | 49.81 | 3.74 | 16.29 | 18.21 |
| 1 | 1.27 | 1.49 | 49.97 | 3.8 | 16.6 | 18.78 |
| 4 | 1.75 | 1.24 | 47.93 | 3.55 | 15.64 | 17.49 |
| 8 | 1.56 | 1.35 | 46 | 2.21 | 15.04 | 16.99 |
| 12 | 1.27 | 1.44 | 45.42 | 1.94 | 15.58 | 17.16 |
| 16 | 1.29 | 1.68 | 45.77 | 2.62 | 15.36 | 16.65 |
| 20 | 2.1 | 1.45 | 45 | 3.08 | 14.97 | 16.56 |
| 24 | 2.06 | 1.22 | 45.52 | 3.21 | 14.67 | 16.65 |
| 28 | 1.75 | 1.1 | 46 | 3.33 | 13.99 | 17.02 |
| 32 | 1.43 | 1.36 | 46.46 | 3.71 | 13.52 | 17.13 |
| 36 | 1.38 | 1.3 | 46.33 | 3.9 | 11.7 | 16.57 |
| 40 | 1.27 | 1.55 | 47.52 | 4.22 | 11.47 | 15.65 |
| 43 | 1.63 | 1.51 | 45.43 | 4.76 | 8.9 | 14.2 |

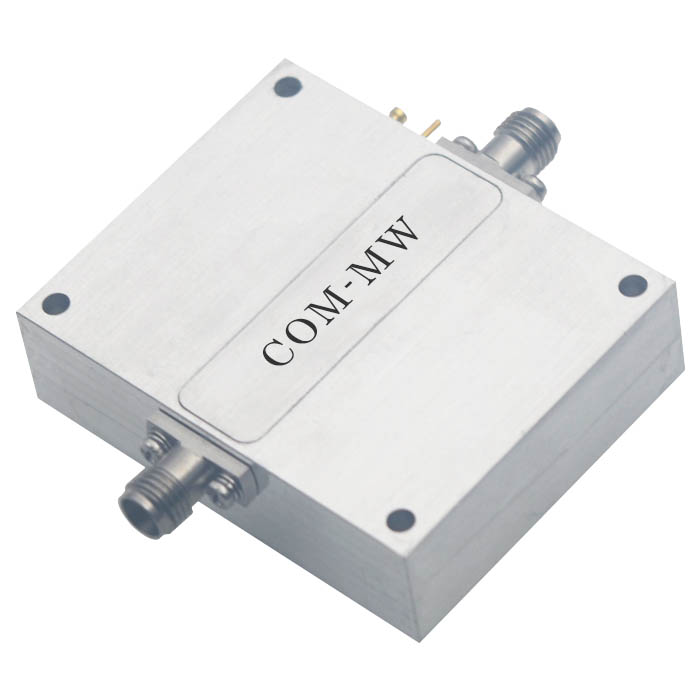

Reference picture

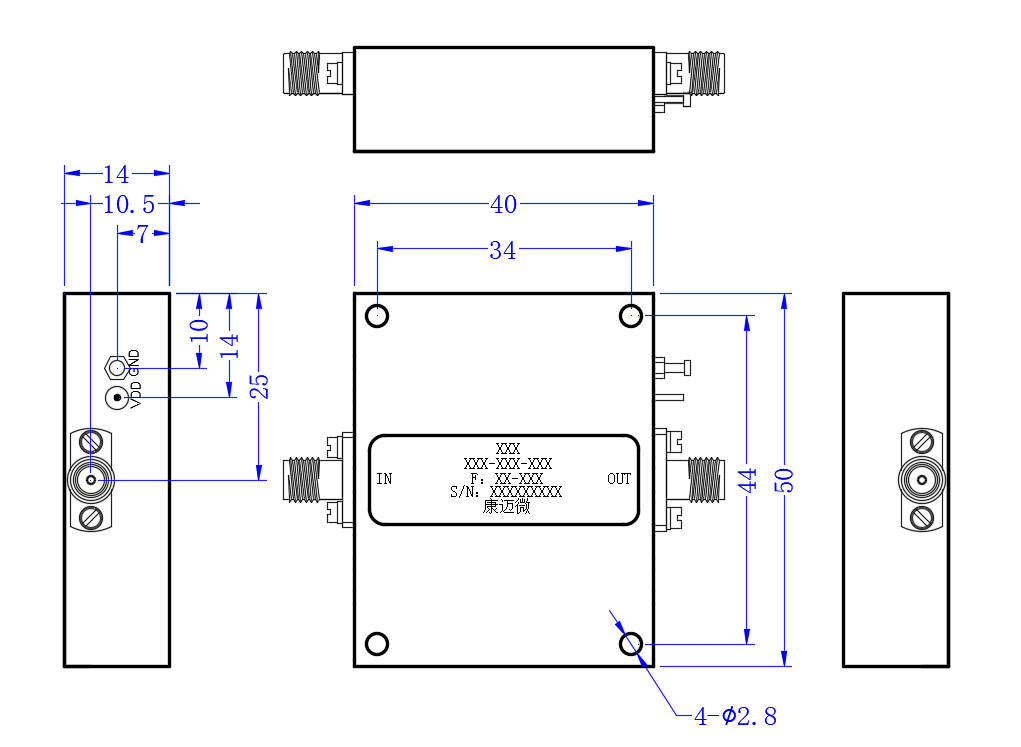

Configuration

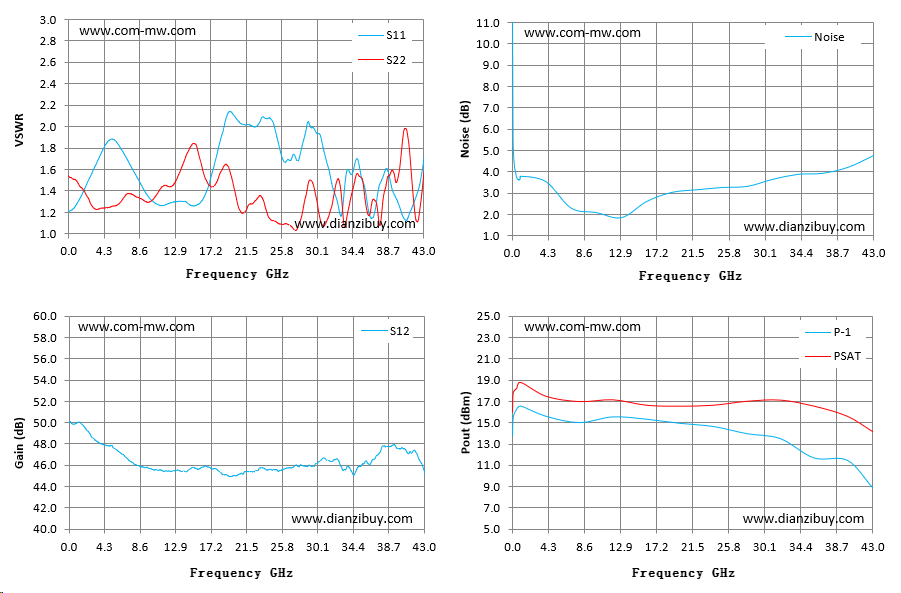

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
