Power amplifier
18~40GHz, Gain42dB, Psat30dBm, 2.92
- DPA8-18-40G-4057
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 42 | dB | ||
| Gain flatness | ±4 | dB | ||
| Input VSWR | 2 | |||
| Psat | 30 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 1200mA |
| Operation Temp. | -40~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm |
| 16 | 1.56 | 1.31 | 42.29 | 24 | 26.7 |
| 17.86 | 1.65 | 1.89 | 44.79 | 24.7 | 32 |
| 19.71 | 1.83 | 1.98 | 45.24 | 24.1 | 30.5 |
| 21.57 | 1.85 | 1.42 | 44.93 | 24.2 | 31.5 |
| 23.43 | 1.54 | 1.58 | 44.83 | 25 | 31.1 |
| 25.29 | 1.11 | 1.98 | 43.32 | 23.8 | 31.7 |
| 29 | 1.05 | 1.46 | 42.55 | 24.8 | 31.9 |
| 30.86 | 1.26 | 1.22 | 43.6 | 24.6 | 32.3 |
| 32.71 | 1.49 | 1.75 | 44.94 | 24.3 | 32.8 |
| 34.57 | 1.39 | 2.65 | 45.11 | 23.9 | 33.3 |
| 36.43 | 1.44 | 1.88 | 43.93 | 24.3 | 33.6 |
| 38.29 | 1.62 | 2.58 | 45.92 | 24.2 | 32.1 |
| 40.14 | 1.4 | 2.84 | 40.63 | 22.9 | 29.5 |
| 42 | 1.23 | 1.53 | 28.19 | 20 | 23.3 |

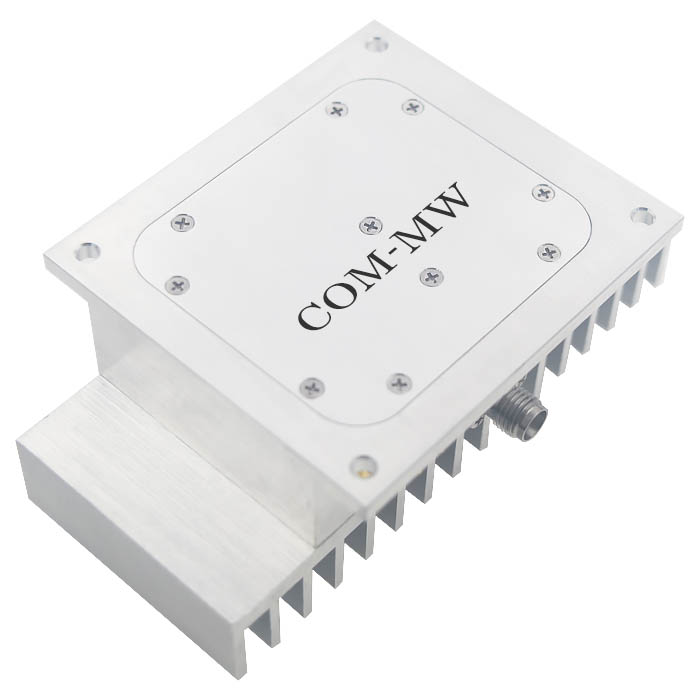

Reference picture

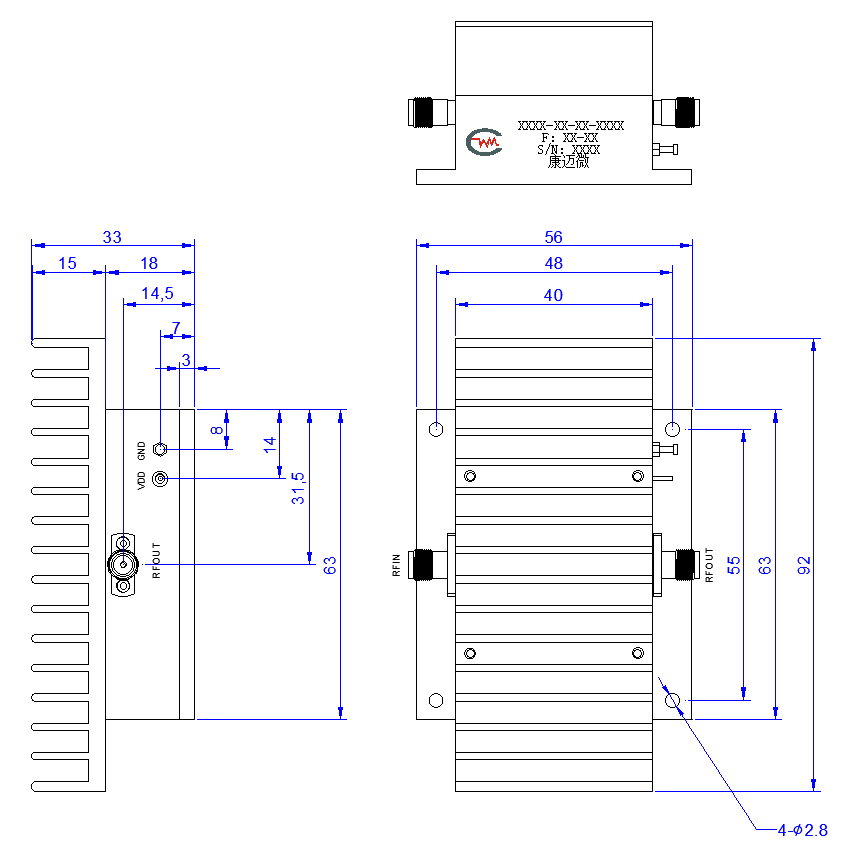

Configuration

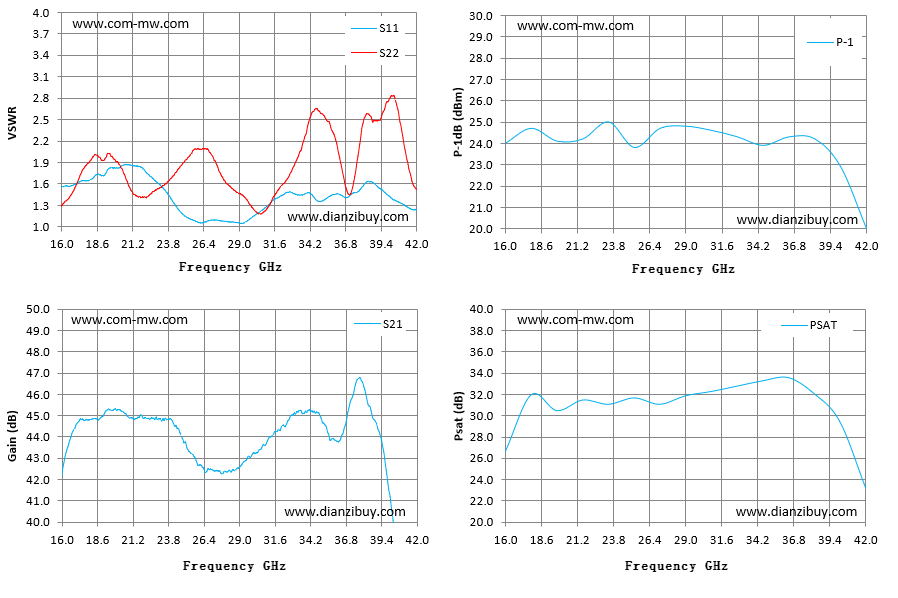

Typical test curve
