LNA
1000~18000MHz, Gain26dB, Noise figure2.5dB, P-1dB10dBm, SMA
- DLNA8-1-18G-2079
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 18000 | MHz |
| Gain | 26 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 1 | 1.28 | 1.42 | 33.08 | 1.57 | 16.5 |
| 2.29 | 1.67 | 1.85 | 32.14 | 1.67 | 16.6 |
| 3.57 | 1.64 | 1.2 | 31.49 | 1.72 | 14.8 |
| 4.86 | 1.43 | 1.1 | 31.45 | 2.03 | 14.7 |
| 6.14 | 2.04 | 1.35 | 31.1 | 1.89 | 15.6 |
| 7.43 | 2.16 | 1.61 | 30.9 | 1.99 | 15.1 |
| 8.71 | 1.53 | 1.26 | 31.49 | 2.16 | 15.4 |
| 10 | 2.04 | 1.84 | 31.31 | 2.09 | 15.5 |
| 11.29 | 1.76 | 1.93 | 31.21 | 2.1 | 15.4 |
| 12.57 | 1.19 | 1.41 | 31.87 | 2.28 | 14.9 |
| 13.86 | 1.28 | 1.48 | 32.62 | 2.3 | 15.1 |
| 15.14 | 1.89 | 1.45 | 32.47 | 2.35 | 14.7 |
| 16.43 | 1.91 | 1.39 | 31.8 | 2.42 | 14.6 |
| 17.71 | 1.5 | 1.49 | 32.54 | 2.49 | 15.4 |
| 19 | 2.64 | 1.44 | 32.76 | 2.68 | 14.3 |
Reference picture
Configuration(mm)

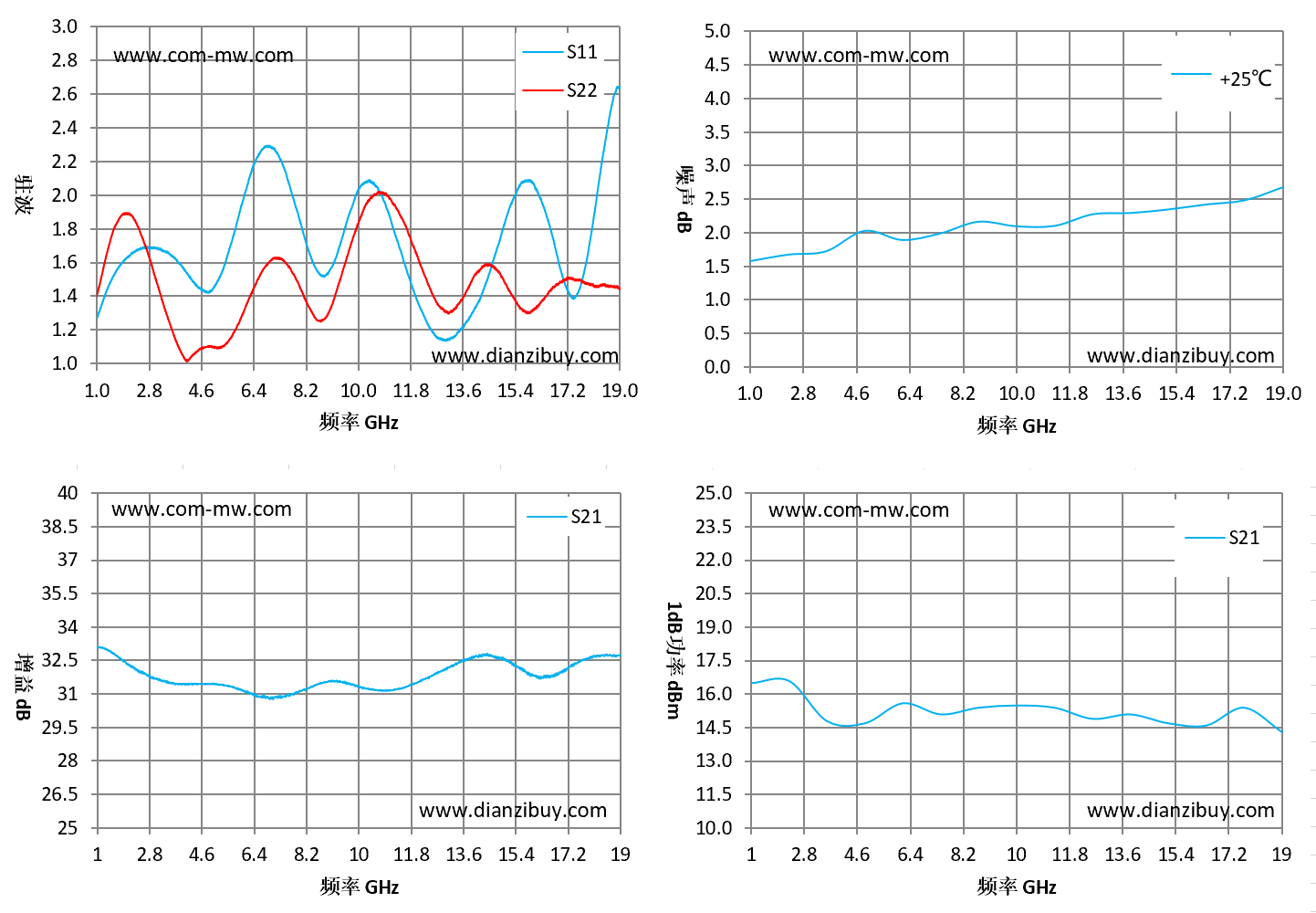

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
