Power amplifier
17~43GHz, Gain40dB, Psat20dBm, 2.4
- DPA8-17-43G-3680
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 17 | ~ | 43 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±5 | dB | ||
| Input VSWR | 2.5 | dB | ||
| Output VSWR | 3 | |||
| Psat | 20 | dBm |
Other parameters
| Connector | 2.4-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

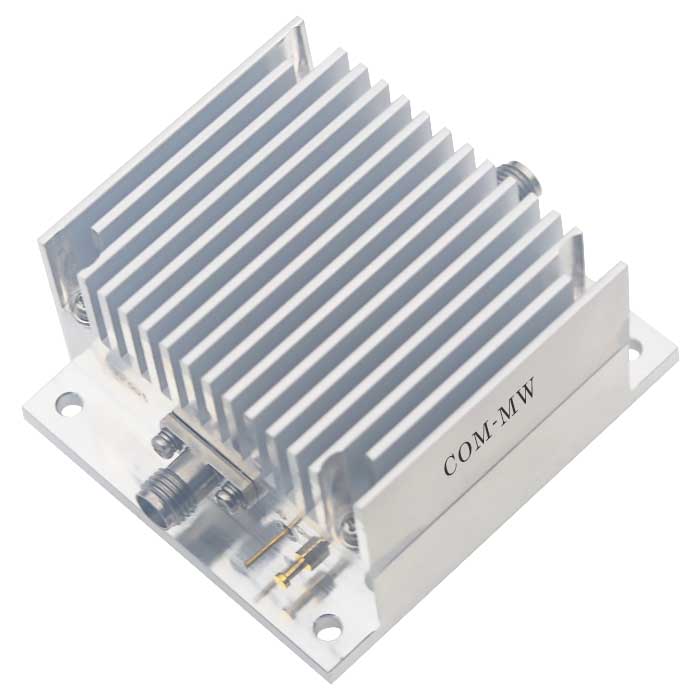

Reference picture

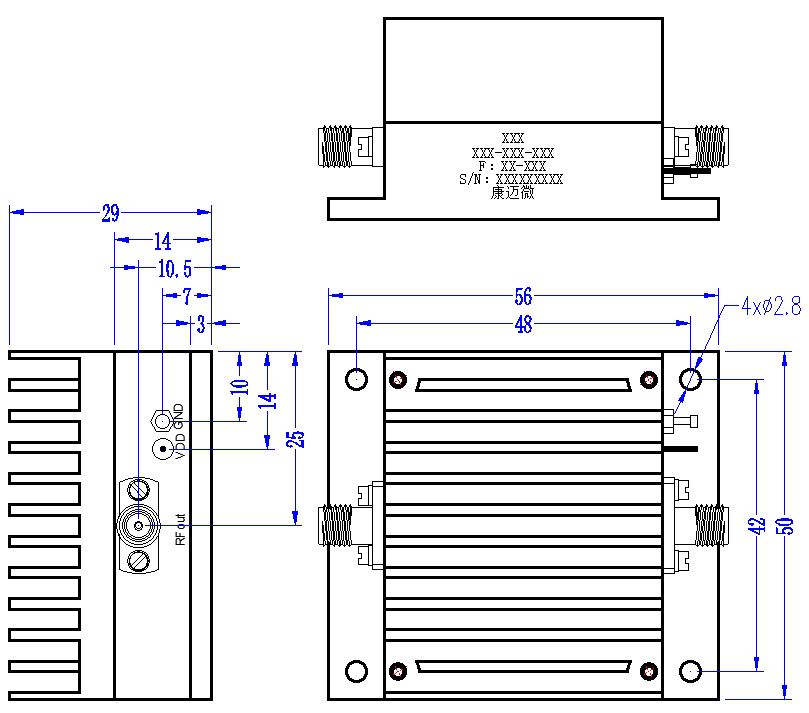

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
