LP Antenna
Frequency1~6GHz, Gain9dBi, Linear polarization, N-K
- ZDS7-1-6G-832
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
It has characteristics such as medium gain, wide operating frequency band, and good performance consistency within the operating frequency band.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 6 | GHz |
| Gain | 9 | dBi | ||
| VSWR | 2.5 |
Other parameters
| Polarization | Linear polarization |
| Power | 200W Design assurance |
| Connector | N-K |
| Outline size | 620*380*380mm |
| Estimated weight | 2Kg |
| Surface | Grey |
| Work Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |

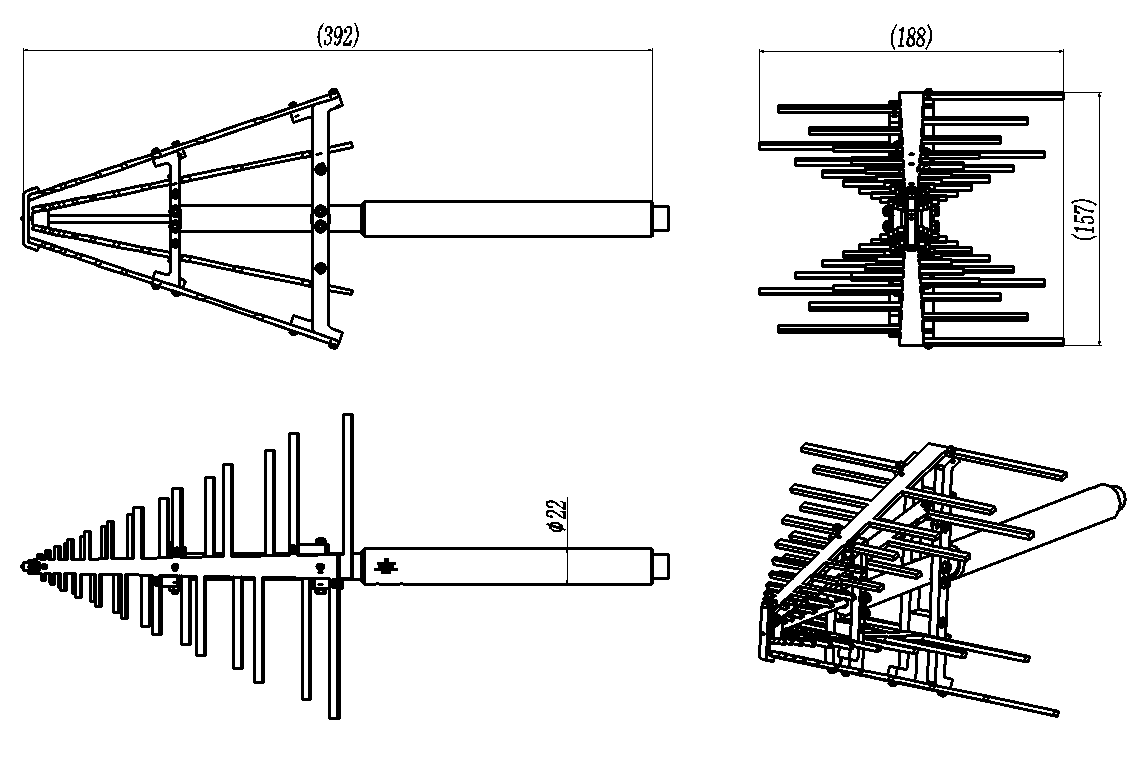

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

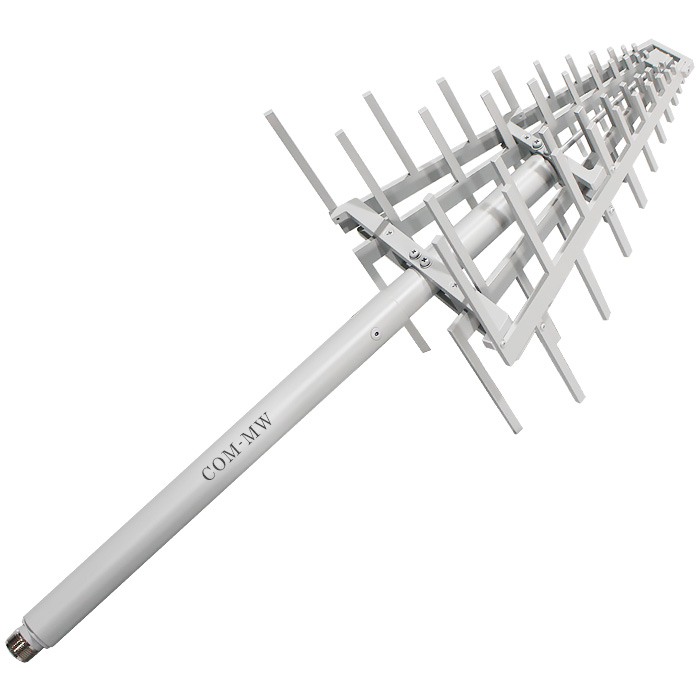

Reference picture
