Power amplifier
150~1700MHz, Gain30dB, P-1dB output power30dBm, SMA-K
- DPA8-150-1700-1026
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Small-volume
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 150 | ~ | 1700 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2 | dB | ||
| Output VSWR | 2.5 | |||
| Input VSWR | 2 | |||
| P-1dB output power | 30 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -40~+70℃ Design assurance |
Other
1. IN-OUT1 straight band: frequency: DC-6000MHz; Insertion loss ≤ 3, VSWR ≤ 2;
2. IN-OUT2 straight band: frequency: DC-6000MHz; Insertion loss ≤ 2, VSWR ≤ 1.8;
3, Input port (input power 0dBm).
4. Please install it on a bottom plate that has the necessary heat dissipation conditions.
Typical test data
| Frequency GHz | S11VSWR | Gain(dB) | P-1(dBm) | Psat(dBm) | S22VSWR |
| 0.1 | 1.44 | 41.4 | 30.08 | 31.02 | 2.12 |
| 0.24 | 1.45 | 42.18 | 31.09 | 32.19 | 1.56 |
| 0.37 | 1.37 | 42.2 | 31.3 | 32.4 | 1.45 |
| 0.51 | 1.27 | 42.24 | 31.32 | 32.42 | 1.44 |
| 0.64 | 1.17 | 42.36 | 31.22 | 32.52 | 1.5 |
| 0.78 | 1.06 | 42.5 | 31.13 | 32.53 | 1.56 |
| 0.91 | 1.06 | 42.61 | 31.14 | 32.44 | 1.64 |
| 1.05 | 1.19 | 42.53 | 31.04 | 32.24 | 1.77 |
| 1.19 | 1.32 | 42.34 | 30.75 | 32.35 | 1.9 |
| 1.32 | 1.42 | 42.02 | 30.56 | 32.26 | 2.03 |
| 1.46 | 1.49 | 41.52 | 30.16 | 32.26 | 2.14 |
| 1.59 | 1.52 | 41 | 30.03 | 32.06 | 2.22 |
| 1.73 | 1.49 | 40.43 | 29.96 | 31.86 | 2.26 |
| 1.86 | 1.43 | 39.95 | 29.36 | 31.66 | 2.27 |
| 2 | 1.35 | 39.63 | 29.57 | 31.47 | 2.3 |

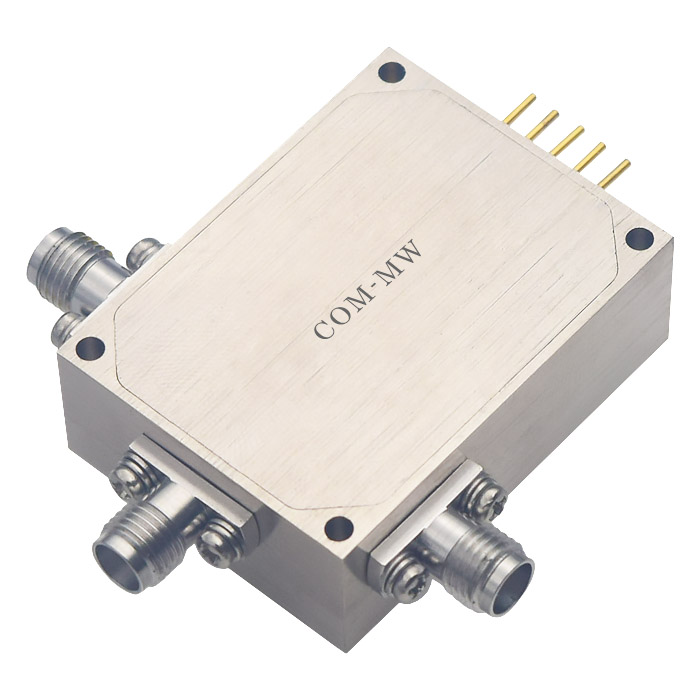

Reference picture

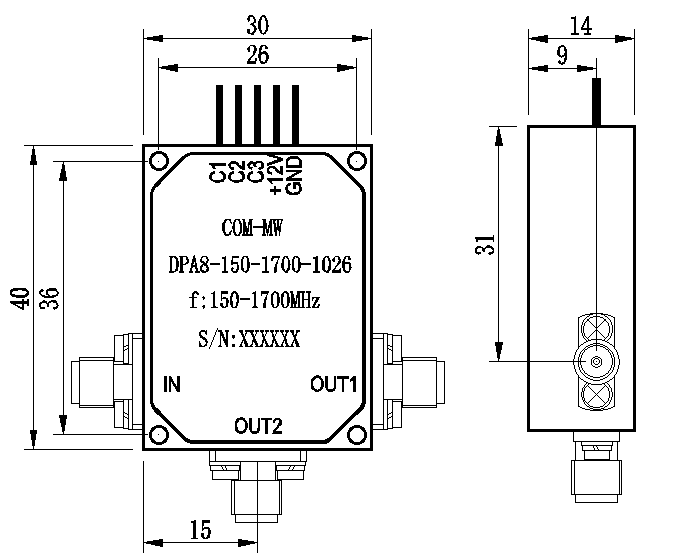

Configuration

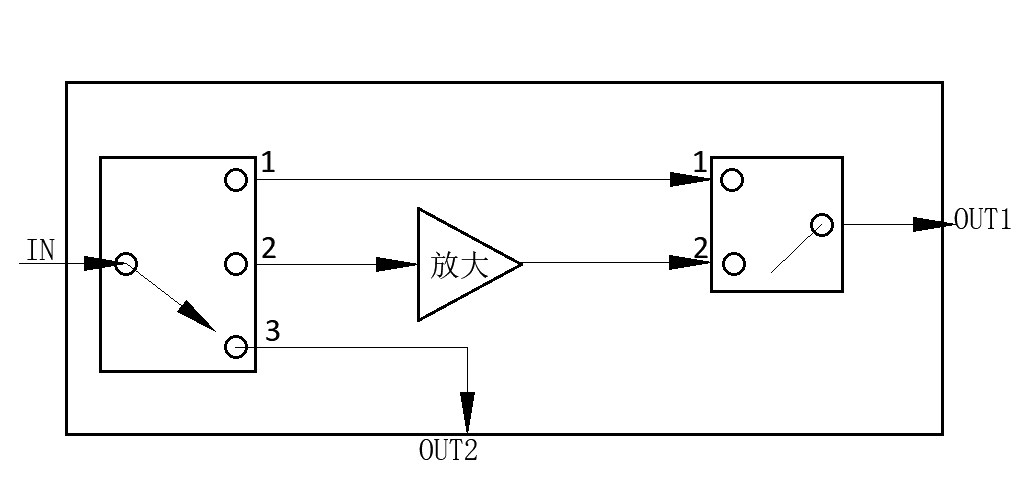

Circuit diagram
Truth table
| C1 | C2 | C3 | Channel | Note |
| 0 | 0 | 1 | IN-OUT1 | Amplifier |
| 0 | 1 | 0 | IN-OUT1 | Through |
| 1 | 1 | 0 | IN-OUT2 | Through |

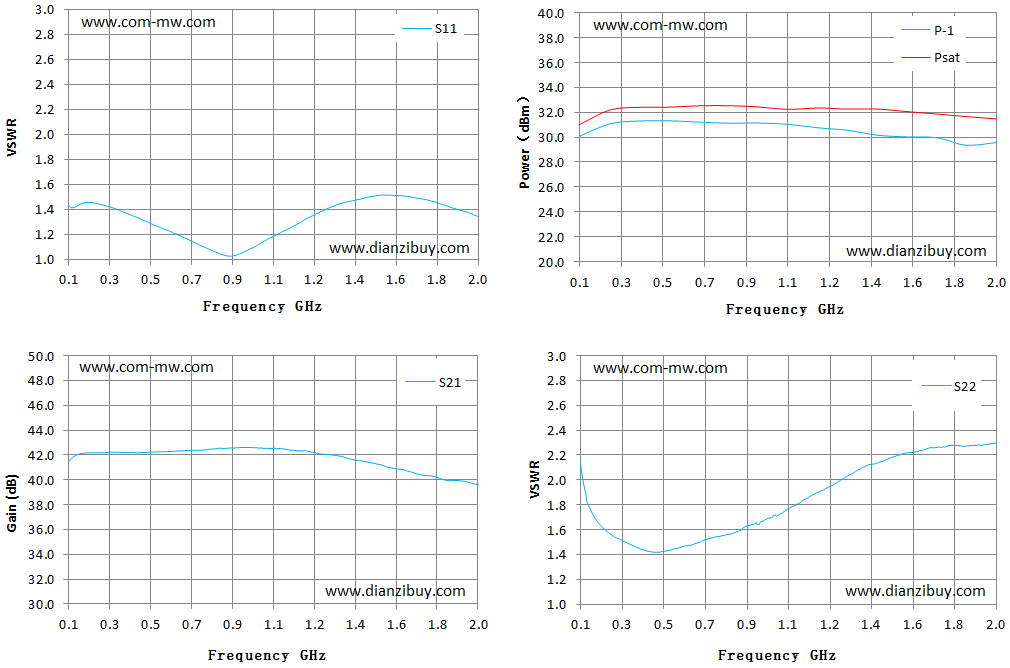

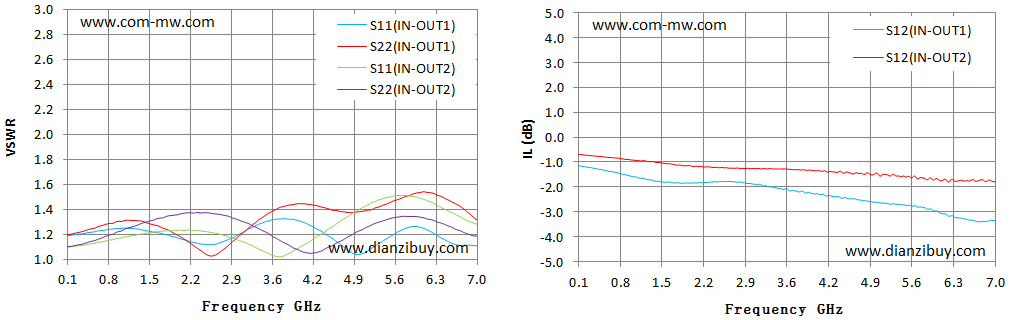

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
