Power amplifier
0.15~230MHz, Gain50dB, Psat75W, N
- DPA8-0.15-230-1501
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.15 | ~ | 230 | MHz |
| Gain | 50 | dB | ||
| Gain flatness | ±1 | dB | ||
| VSWR | 2 | |||
| P-1dB | 49 | W | ||
| Psat | 75 | W | ||
| Max input power | 5 | dBm | ||
| Spur reduction | 65 | dBc | ||
| Harmonic Rejection | 20 | dBc |
Other parameters
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +220V |
| power waste | 400W |
| Operation Temp. | -25~+55℃ Design assurance |
| Protection temperature | 80℃ |

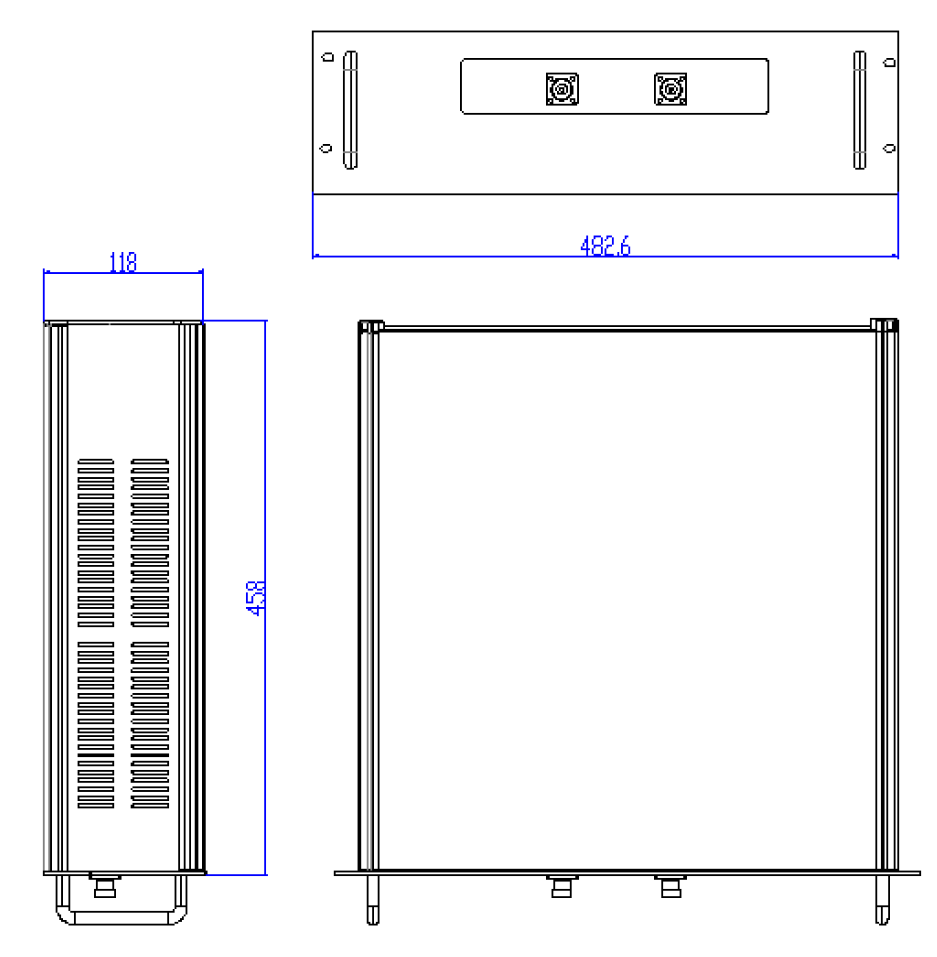

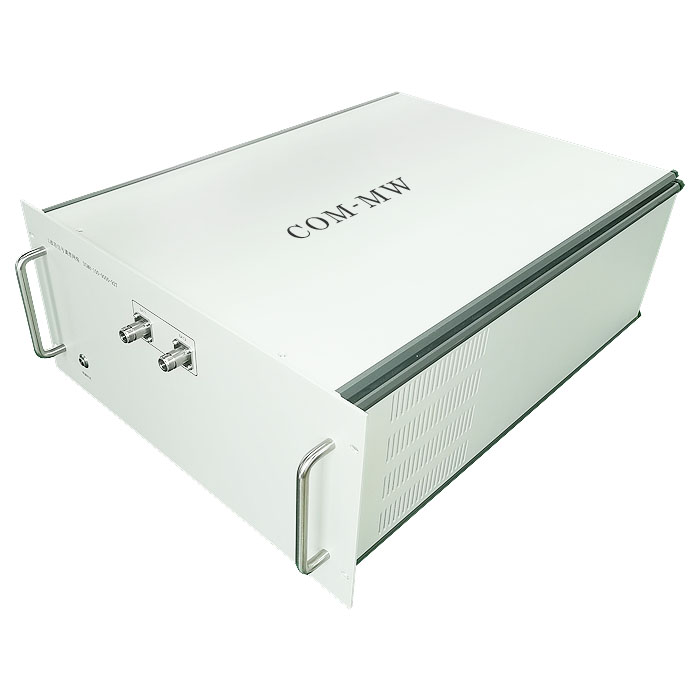

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
