Dual Circular Polarization horn antenna
Frequency22~33GHz, Gain15dBi, Dual Circular Polarization, 2.92-K
- ZLB7-SJ22-33G-1078
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 22 | ~ | 33 | GHz |
| Gain | 15 | dBi | ||
| VSWR | 1.8 | |||
| 3dB Beamwidth | 24 | 50 | ° | |
| Isolation | 20 | dB | ||
| AR | 2 | dB | ||
| power | 20 | W |
Other parameters
| Polarization | Dual Circular Polarization |
| Connector | 2.92-K |
| Outline size | 73*45*45mm |
| Estimated weight | 100g |
| Surface | Gray |
| Operation Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |

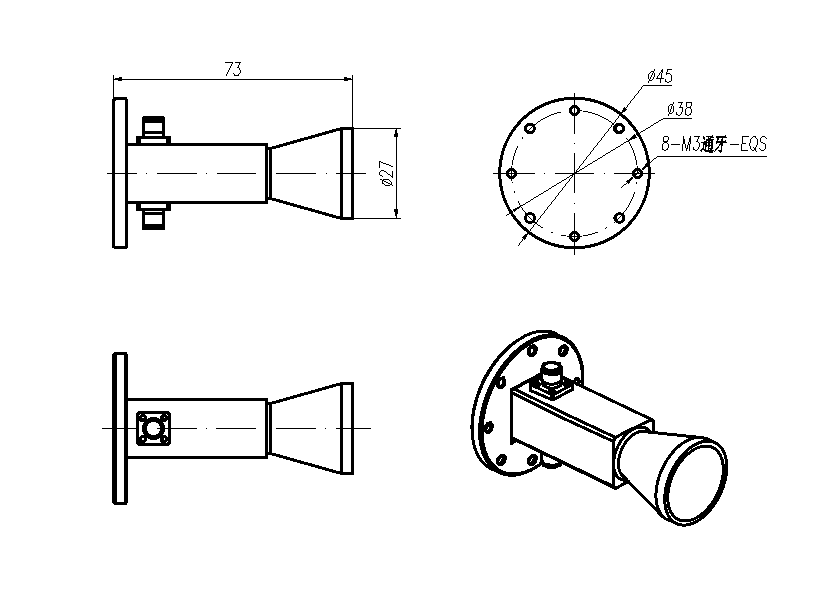

Configuration(mm)
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

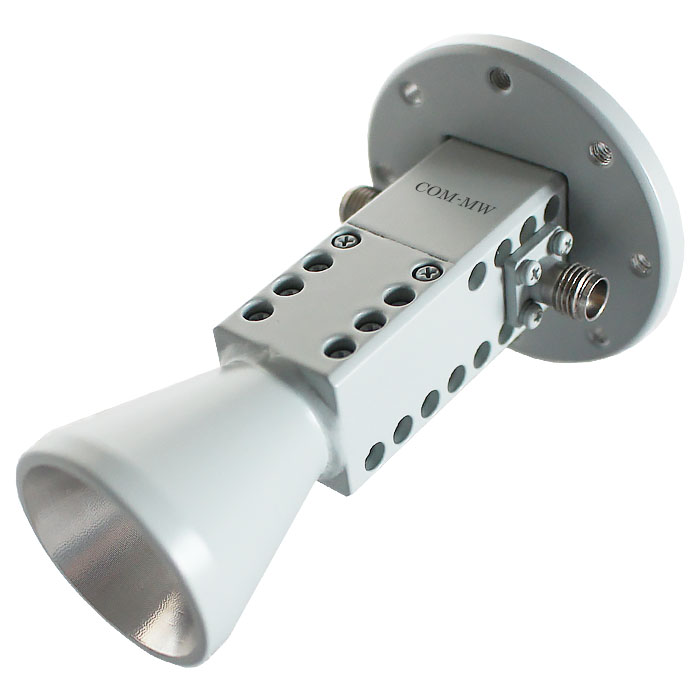

Reference picture

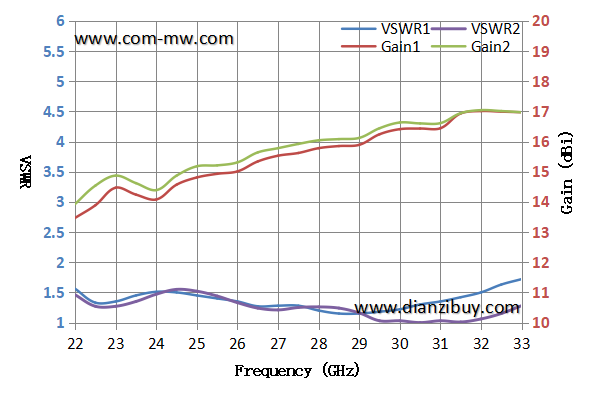

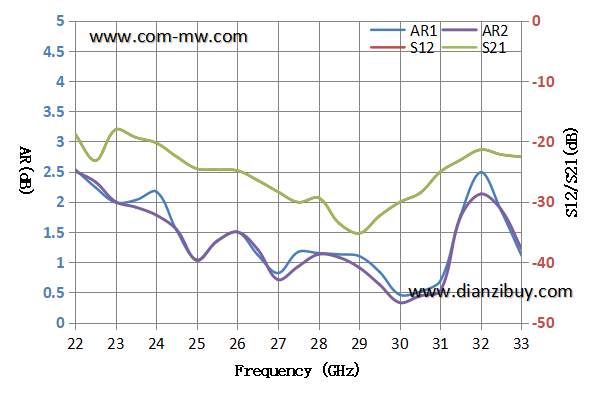

Typical test curve

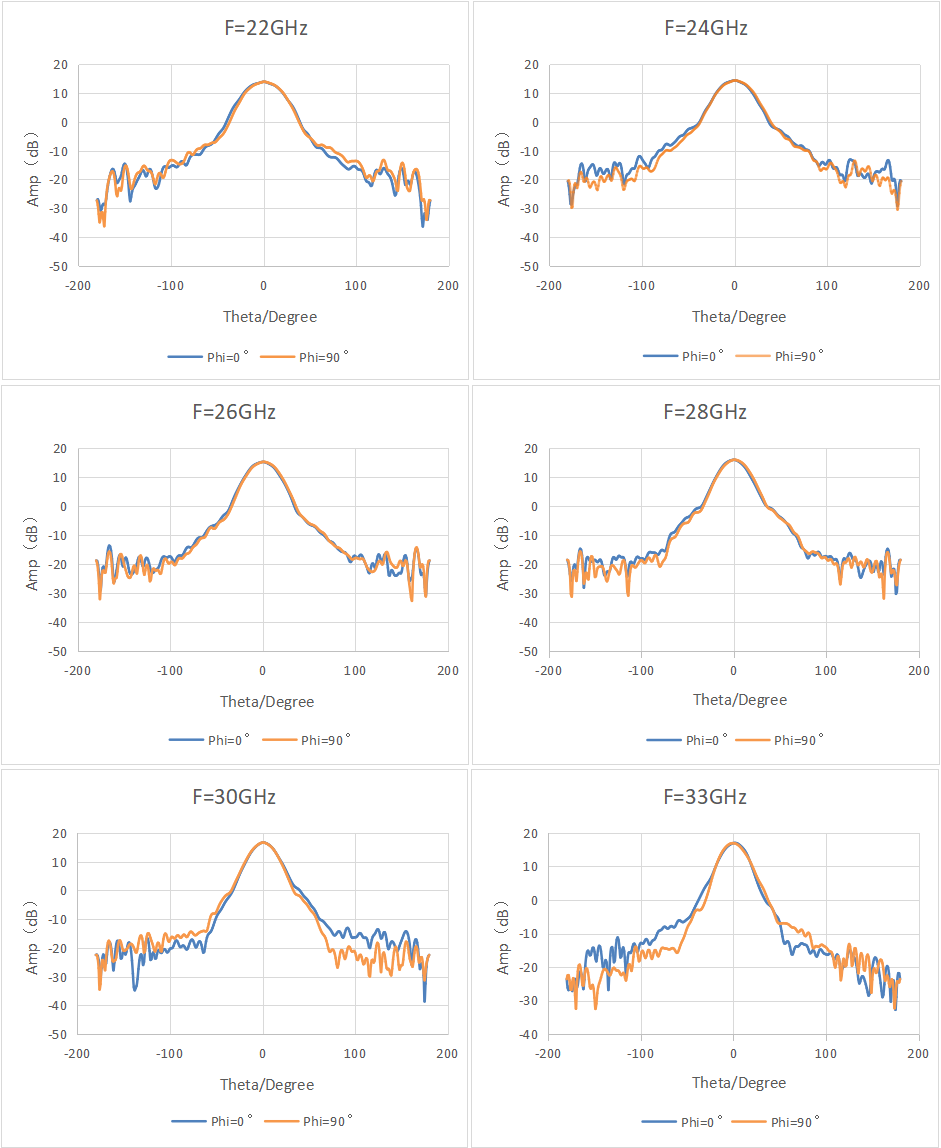

Typical antenna pattern
