LNA

2~8GHz, Gain15dB, Noise figure1.5dB, P-1dB15dBm, SMA

  • DLNA8-2-8G-3852
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency2~8GHz
Gain15dB
Gain flatness±0.5±1dB
Noise figure1.5dB
VSWR2
P-1dB15dBm
OIP325dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current100mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

FrequencyS11S22GainP-1PSATNF
GHzVSWRVSWRdBdBmdBmdB
0.81.641.3717.2118.5620.32.11
1.461.141.4218.0419.2120.381.43
2.111.051.3918.1218.2520.521.39
2.771.231.3117.9817.9820.081.39
3.431.451.2517.7717.9720.171.38
4.091.671.3317.5418.2920.251.16
4.741.811.4517.4119.620.51.53
5.41.791.5117.4119.2201.47
6.061.631.4417.5219.2819.931.42
6.711.441.2617.7219.3520.251.59
7.371.341.0717.9319.5320.041.52
8.031.371.1618.0219.5220.061.51
8.691.401.3318.0719.6720.61.68
9.341.321.4218.1219.8220.691.63
101.171.4418.2220.1620.461.8

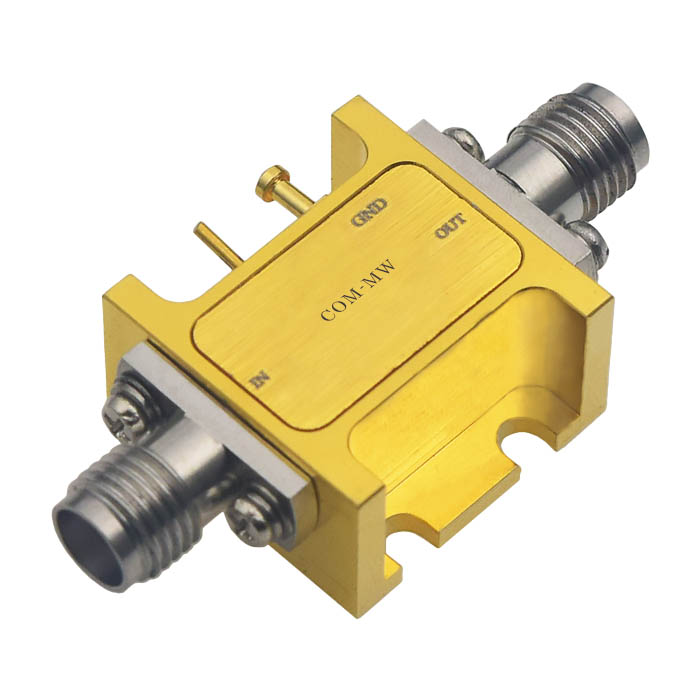

Reference picture

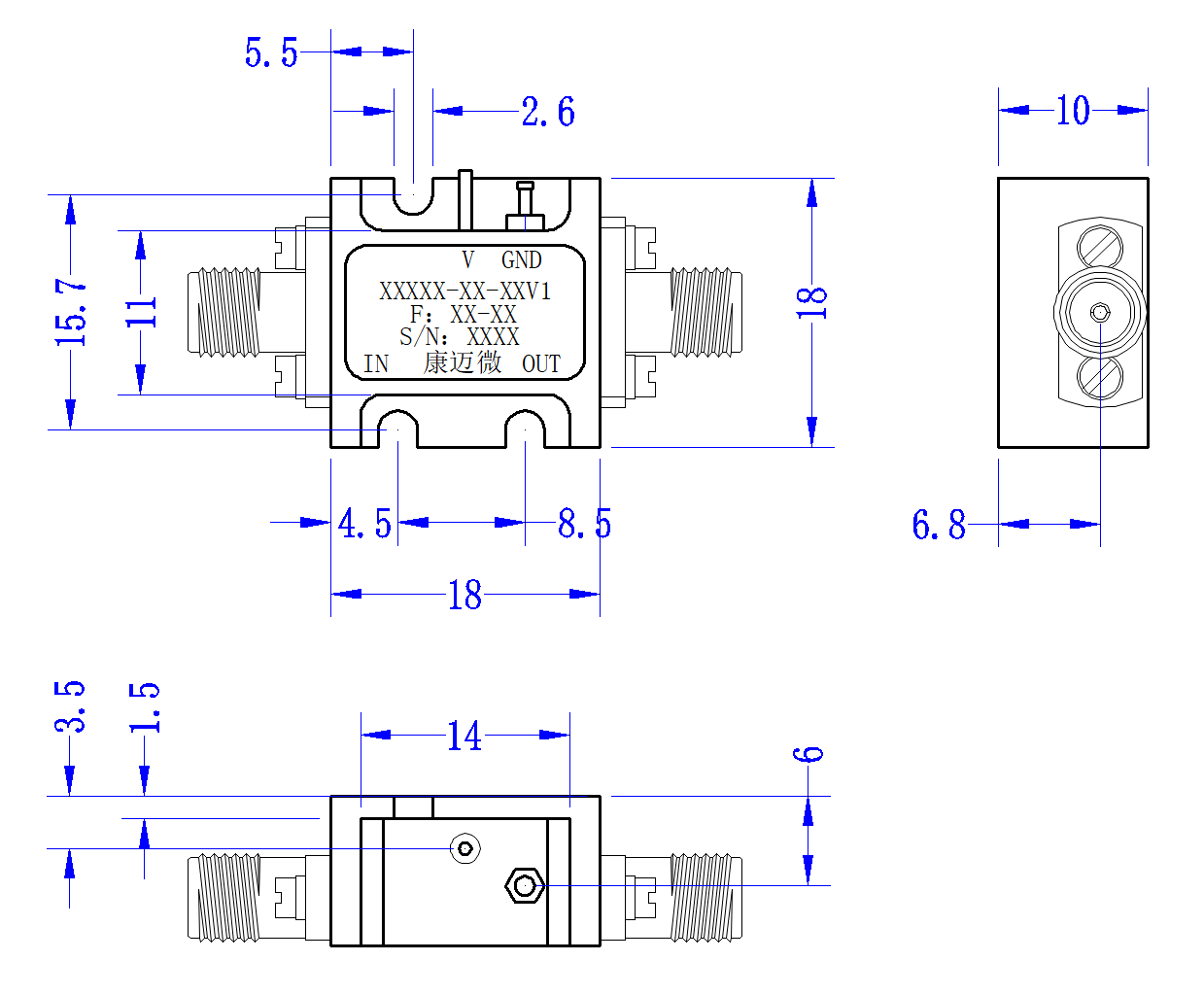

Configuration(mm)

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
