Power amplifier
26500~43000MHz, Psat31dBm, 2.92
- DPA8-26500-43000-3254
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 26500 | ~ | 43000 | MHz |
| Gain | 0 | 30 | dB | |
| Gain Stepping | 1 | dB | ||
| flatness | ±2 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 30 | dBm | ||
| Psat | 31 | dBm | ||
| Max input power | 10 | dBm |
Environmental
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Working voltage | +28V |
| Working current | 2000mA |
| Operation Temp. | -40~+70℃ Design assurance |
J30J-9 Port Definition
| No. | definition | Note |
| 1 | +28V | |
| 2 | +28V | |
| 3 | GND | |
| 4 | GND | |
| 5 | D0 | 1dB |
| 6 | D1 | 2dB |
| 7 | D2 | 4dB |
| 8 | D3 | 8dB |
| 9 | D4 | 16dB |

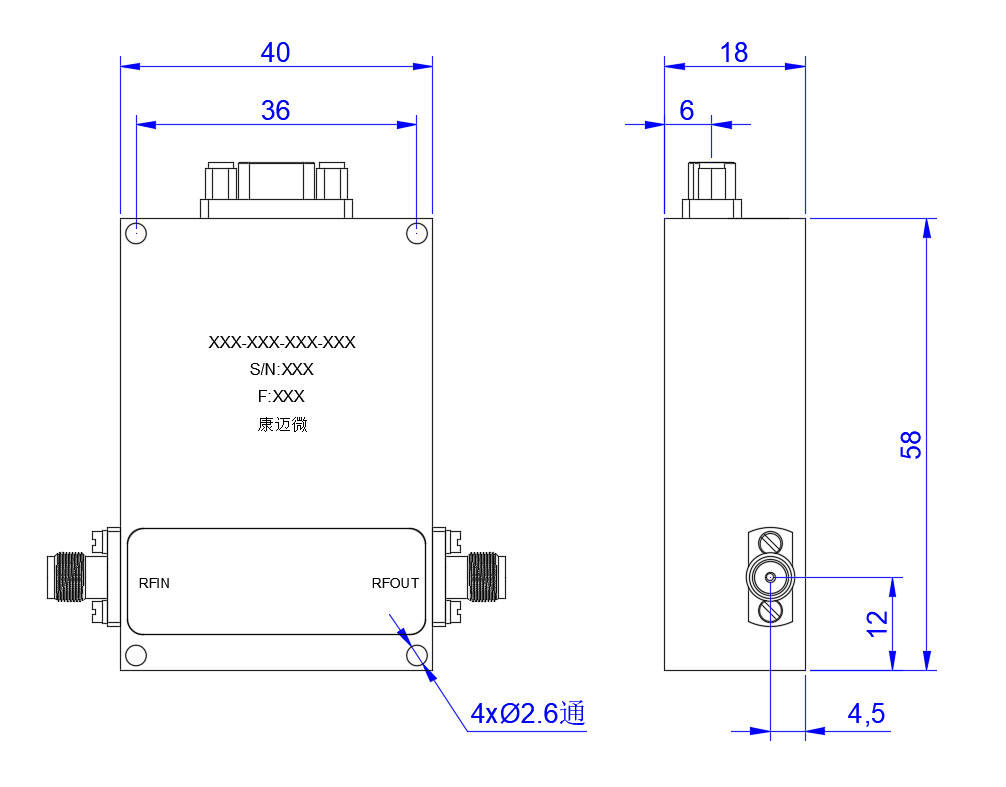

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
