Power amplifier
5825~5925MHz, Gain45dB, Psat49dBm, SMA
- DPA8-5900-6100-1587
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 5825 | ~ | 5925 | MHz |
| Gain | 45 | dB | ||
| Gain flatness | ±1 | dB | ||
| VSWR | 1.8 | |||
| Psat | 49 | dBm | ||
| Spur reduction | 65 | dBc | ||
| Harmonic Rejection | 35 | dBc |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +28V |
| Working current | 8000mA |
| Operation Temp. | -40~+65℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Power amplifier PTT switch port: The power amplifier is turned off by default and turned on at 5V; Rising/falling edge ≤ 800ns; Temperature protection: 80 ℃. |

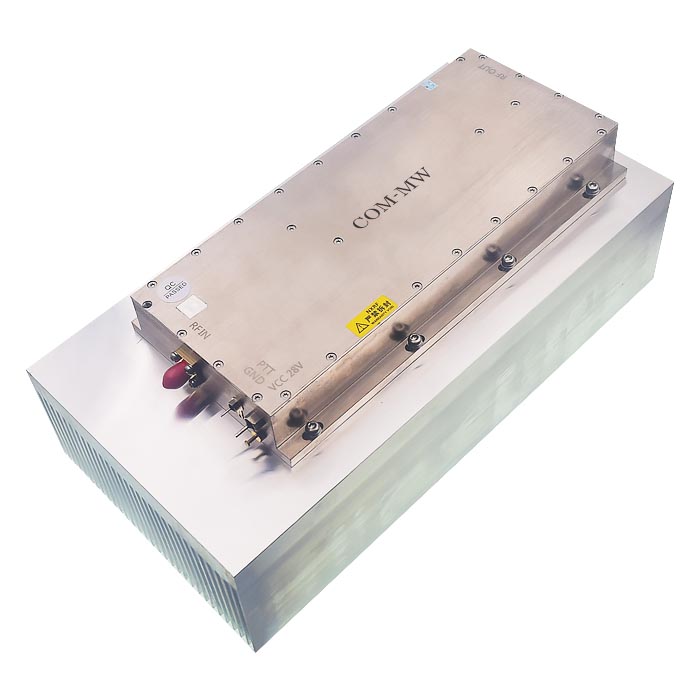

Reference picture

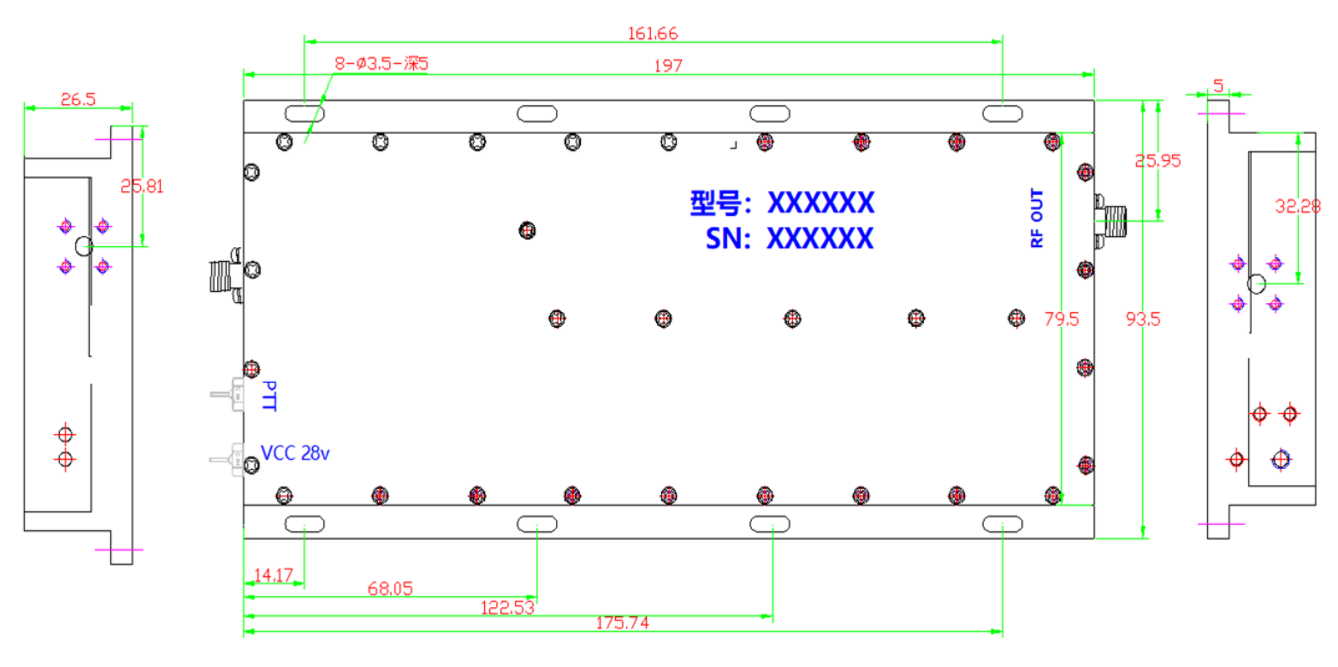

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
