Power amplifier
5.1~5.3GHz, Gain40dB, Output power30W, ConnectorSMA-F
- DPA8-5.1-5.3G-4048
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 5.1 | ~ | 5.3 | GHz | |
| Gain | 40 | dB | Small signal gain | ||
| Flatness in band | ±2 | dB | |||
| Input VSWR | 1.5 | ||||
| Output power | 30 | 50 | W | CW | |
| Efficiency | 25 | % | |||
| Harmonic Rejection | 20 | dBc | |||
| Spurious suppression | 45 | dBC | F0±300k | ||
| ACP | 56 | dBC |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 5A |
| Working temperature | -40~+65℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |
Typical test data
| F（GHz） | 5.06 | 5.1 | 5.16 | 5.2 | 5.24 | 5.3 | 5.36 |
| VSWR | 1.23 | 1.27 | 1.35 | 1.44 | 1.50 | 1.33 | 1.19 |
| Pin（dBm) | 8.66 | 9.26 | 9.75 | 9.94 | 10.95 | 10.34 | 9.56 |
| Pout（SAT）（dBm） | 44.02 | 44.49 | 45.05 | 45.70 | 46.37 | 46.45 | 46.48 |
| Pout（SAT）（W） | 25.23 | 28.11 | 31.98 | 37.15 | 43.35 | 44.15 | 44.46 |
| Ids（A） | 3.45 | 3.67 | 4.00 | 4.13 | 4.31 | 4.15 | 3.82 |
| Gain（dB） | 40.33 | 40.11 | 40.32 | 40.65 | 40.94 | 40.27 | 41.23 |
| ŋ（%） | 26.12 | 27.36 | 28.56 | 32.12 | 35.92 | 38.00 | 41.56 |
| 2nd harmonic rejection (dBc) | 25.10 | 24.40 | 22.37 | 21.50 | 20.55 | 21.50 | 20.50 |
| 3rd harmonic rejection (dBc) | 55.30 | 59.50 | 68.90 | 62.50 | 54.70 | 48.60 | 48.50 |
| 4th harmonic rejection (dBc) | 54.70 | 53.20 | 52.30 | 49.50 | 48.40 | 42.20 | 66.70 |
| Spurious suppression | 52.20 | 52.40 | 51.00 | 49.20 | 46.50 | 47.50 | 48.40 |
| ACP（dBc） | 58.60 | 58.60 | 57.10 | 57.00 | 56.50 | 56.60 | 55.70 |

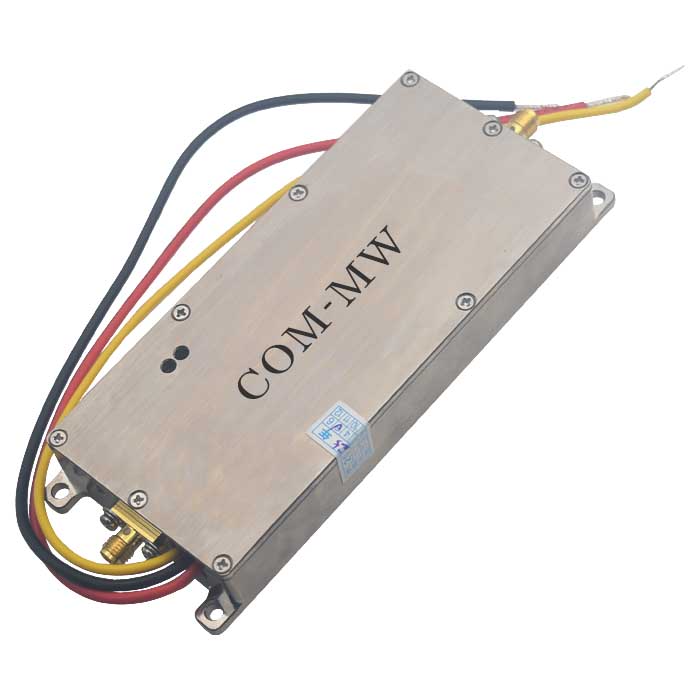

Reference picture

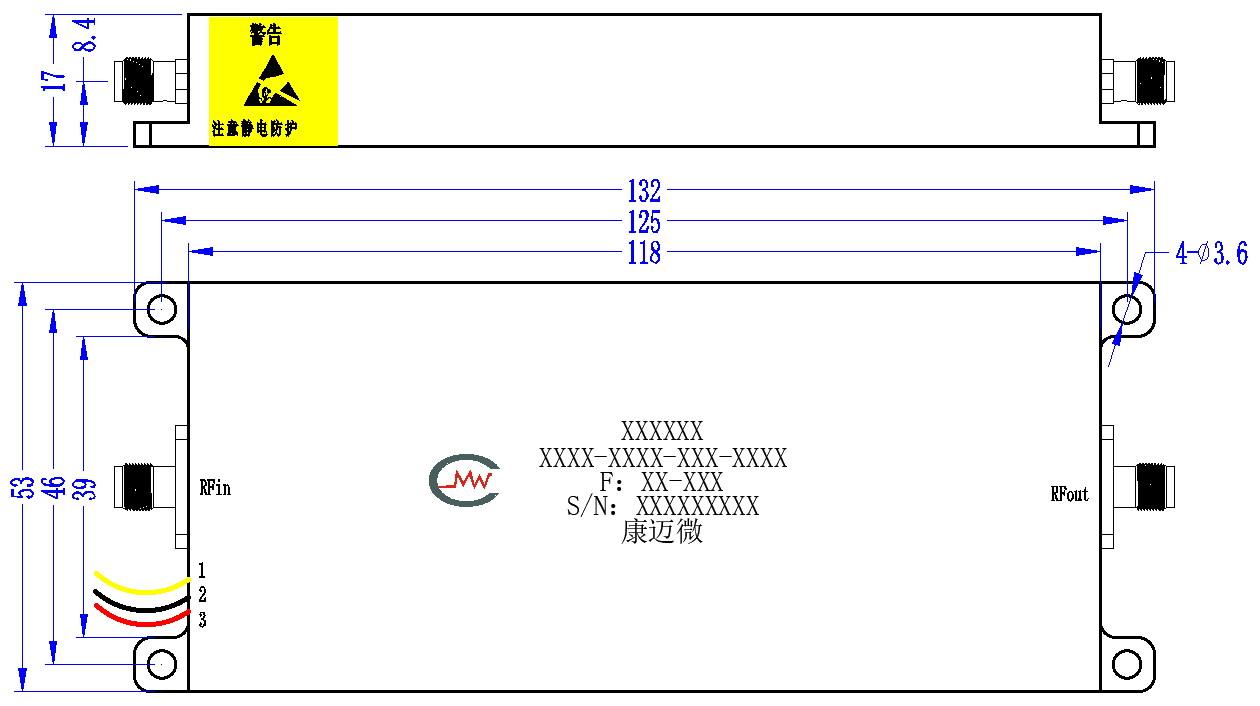

Configuration

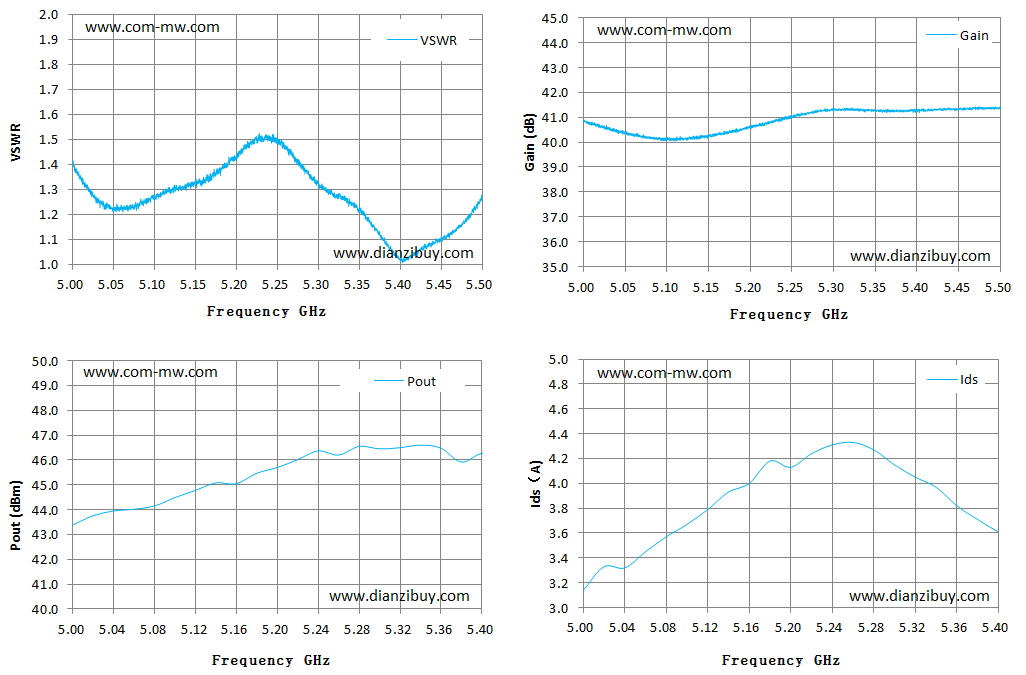

Typical test curve
Port Definition
| No. | Name | definition | Note |
| 1 | EN | Enable (yellow line) | 0:“OFF”；1（+5V）:“ON” |
| 2 | GND | Power Ground (Black Line) | |
| 3 | VD | Power supply (red line) | +28 ±4V |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Equipped with output on/off control interface
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
