LNA
1500~1640MHz, Gain35dB, Noise Temp.65k, P-1dB10dBm, SMA
- DLNA8-1.5-1.64G-2076
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1500 | ~ | 1640 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise Temp. | 65 | k | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 0.6 | 2.51 | 1.21 | 40.03 | 0.65 | 20.24 |
| 0.77 | 2.03 | 1.18 | 38.91 | 0.93 | 20.29 |
| 1.11 | 1.49 | 1.19 | 36.92 | 0.85 | 20.39 |
| 1.29 | 1.33 | 1.22 | 36.17 | 0.84 | 20.4 |
| 1.46 | 1.27 | 1.27 | 35.66 | 0.86 | 20.46 |
| 1.63 | 1.32 | 1.35 | 35.35 | 0.87 | 20.32 |
| 1.8 | 1.43 | 1.4 | 35.16 | 0.91 | 20.45 |
| 1.97 | 1.55 | 1.44 | 35.09 | 1.05 | 20.26 |
| 2.14 | 1.67 | 1.45 | 34.96 | 1.2 | 20.01 |
| 2.31 | 1.81 | 1.44 | 35.06 | 1.37 | 19.78 |
| 2.49 | 2 | 1.44 | 35.48 | 1.39 | 19.5 |
| 2.83 | 2.54 | 1.3 | 36.32 | 1.09 | 19.2 |
| 3 | 2.83 | 1.2 | 36.32 | 0.86 | 18.66 |
Reference picture
Configuration(mm)

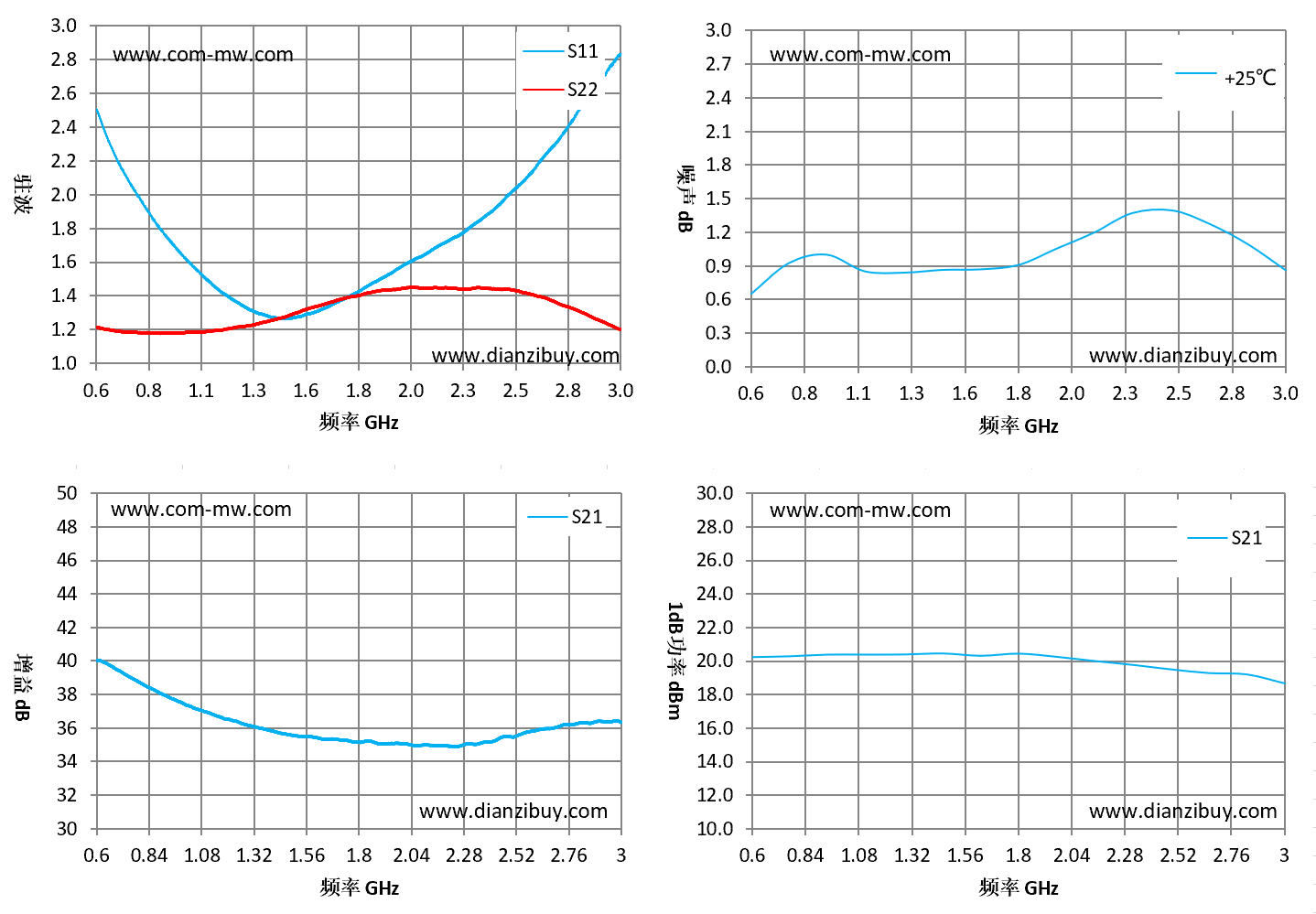

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
