Power amplifier
2200~2500MHz, Gain25dB, Psat100W, SMA
- DPA9-2200-2500-2922
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2200 | ~ | 2500 | MHz |
| Gain | 25 | dB | ||
| Gain flatness | 2 | dB | ||
| Input VSWR | 1.7 | |||
| Output VSWR | 1.7 | |||
| Psat | 100 | W | ||
| Spur reduction | 20 | dBc | ||
| Harmonic Rejection | 65 | dBc |
Other parameters
| Connector | SMA-F |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +28V |
| Working current | 16A |
| Operation Temp. | -25~+5℃ Design assurance |
| Protection temperature | 80 ℃ protection |
| Weight | 510g |
| Power amplifier PTT | The amplifier is turned off by default, and 3.3-5V is turned on. |

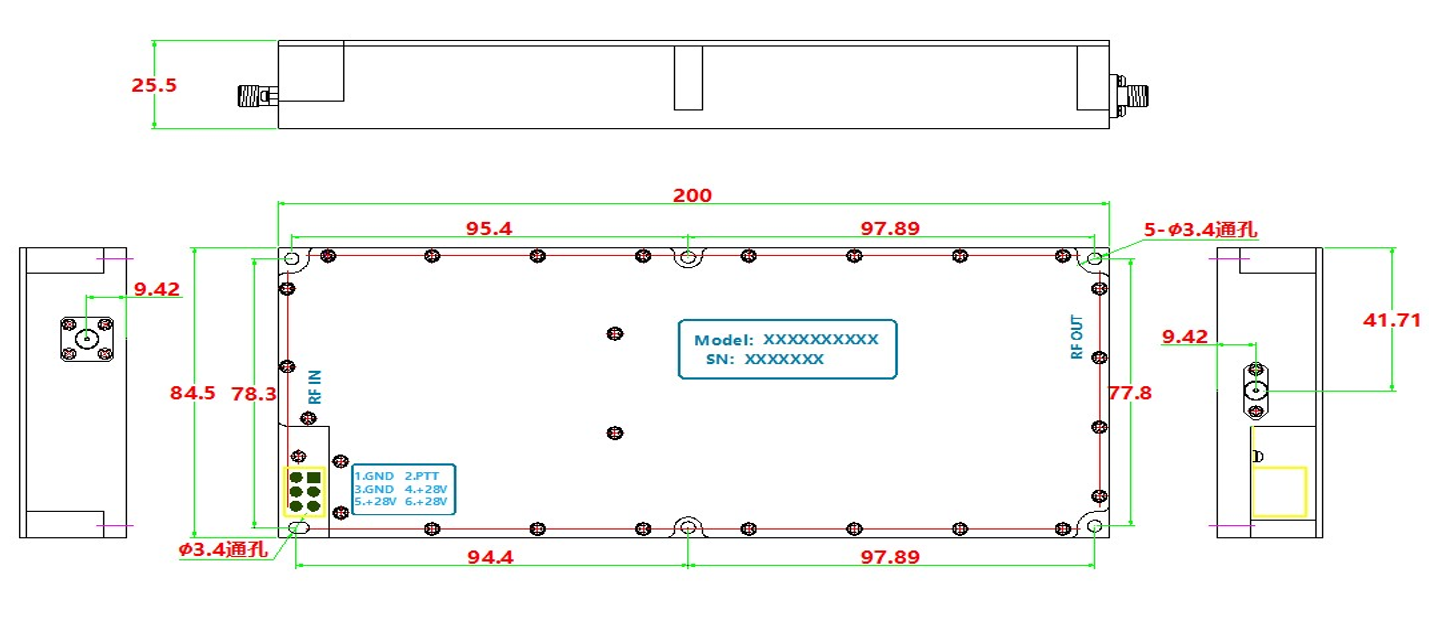

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
